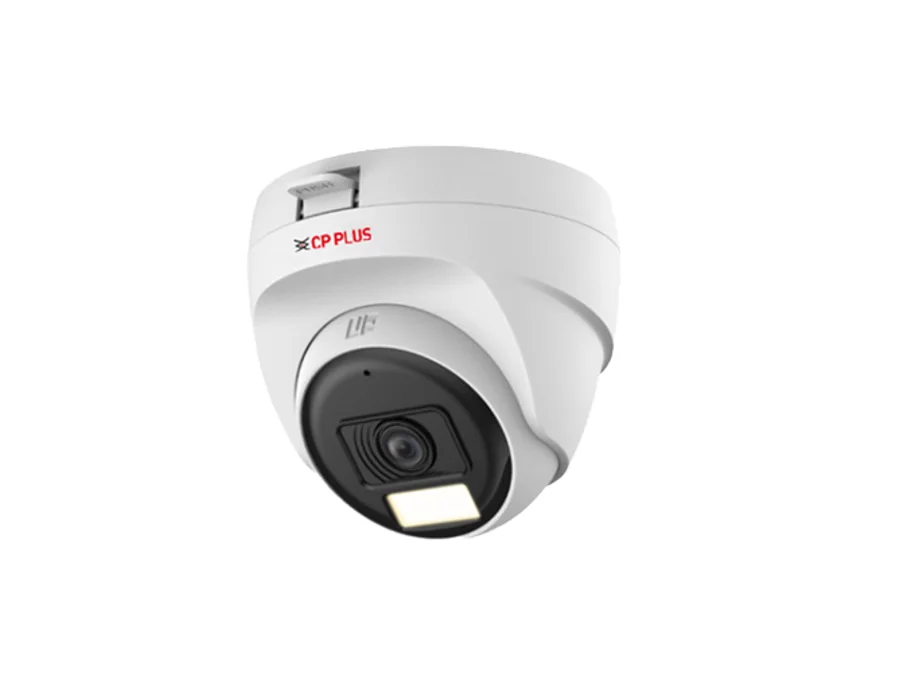

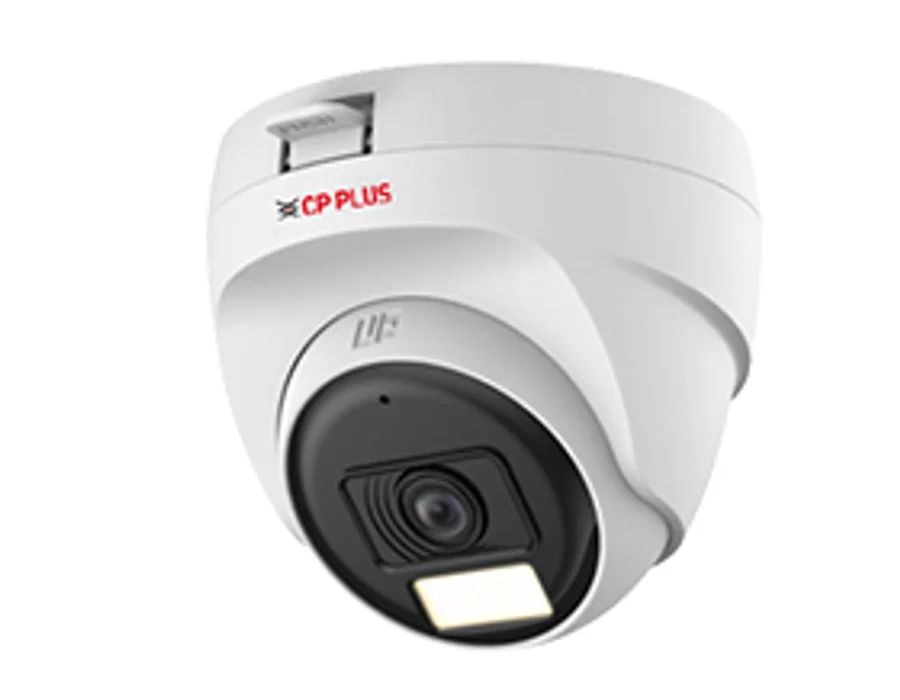

CP Plus CP-URC-DC51PL3C-L – 5MP Dual Light Dome Camera - 30Mtr.

5MP Dual Light Dome Camera - 30Mtr. Features 5 MP PS CMOS Image Sensor Max 25 fps@5MP DWDR, Day/Night (ICR), 2D NR, BLC, HLC 3.6mm fixed lens (2.8mm optional) Support Built-in Mic IR Range of 30 Mtrs., Warm Light Range of 20 Mtrs. 4 Signals over 1 Coaxial Cable Specifications Image Sensor: 5MP PS CMOS Image Sensor Minimum Illumination: 0.02 lux F2.0 (Color, 30 IRE) 0.002 lux F2.0 (B/W, 30 IRE) 0 lux (IR on) Max. Resolution: 2880 (H) × 1620 (V) Shutter Speed: 1/25 s–1/100,000 s/ NTSC: 1/30 s–1/100,000 s White Balance: Auto, Area white balance Lens: 3.6mm (2.8mm optional) Lens Type: Fixed-focal Max. Aperture: F2.0 DORI Distance: 2.8 mm: Detect:66.0 mtr., Observe: 26.4 Mtr., Recognize: 13.2 Mtr., Identify: 13.2 Mtr. 3.6 mm: Detect: 76.0 Mtr., Observe: 30.4 Mtr., Recognize: 15.2 Mtr., Identify : 7.6 Mtr. Lens Mount: M12 Close Focus Distance: 2.8 mm:1.0 m ; 3.6 mm: 1.3 m Gain Control (AGC): Auto Pan, Tilt, Rotation: Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° S/N Ratio: More than 55dB Angle of View: 2.8 mm: H: 106°; V: 56°; D: 125° 3.6 mm: H: 92°; V: 48°; D: 10° Back Light Compensation: BLC/HLC/DWDR Video Streaming: CVI: PAL: 5M@25 fps, 4M@25 fps, 1080p@25 fps, NTSC: 5M@25 fps, 4M@30 fps, 1080p@30 fps AHD: PAL: 4M@25 fps, NTSC: 4M@30 fps TVI: PAL: 4M@25 fps, NTSC: 4M@30 fps CVBS: PAL: 960H, NTSC: 960H Resolution: 5M (2880 × 1620), 4M (2560 × 1440), 1080p (1920 × 1080); 960H (960 × 576/960 × 480) Noise Reduction: 2D NR Privacy Mask: Off/On (4 areas, rectangle) Day/Night: Auto(ICR)/Color/B/W IR Distance: IR Range of 30 Mtr. Warm Light Distance: Warm Light Range of 20 Mtr. IR Mode: Smart IR&WL, WL Mode IR Control: Fixed Operating Temperature: –40 °C to +55 °C (–40 °F to +131 °F) Operating Humidity: <95% (RH), non-condensing Storage Temperature: –40 °C to +55 °C (–40 °F to +131 °F) Storage Humidity: <95% (RH), non-condensing Power Source: 12 VDC ± 30% Power Consumption: Max 2.6W (12V DC, WLED on) Dimension: 85mm × 771mm Weight: 0.11 kg
