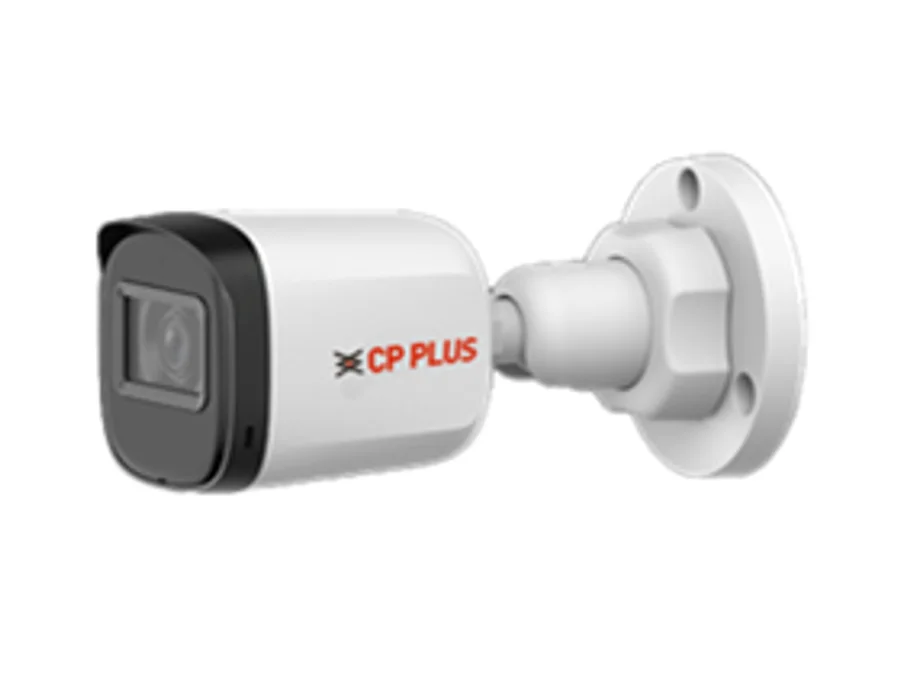

CP Plus CP-URC-TC24PL3 – 2.4MP IR Bullet Camera - 30Mtr.
CP Plus

CP Plus CP-URC-TC24PL3 – 2.4MP IR Bullet Camera - 30Mtr.

SKU: CPPLUS-2034 · Model: CP-URC-TC24PL3

Price on request
  • 2.4MP IR Bullet Camera - 30Mtr.

In Stock

Enquire now
Enquire on WhatsApp

Enter your PIN code to find delivery options and a nearby store.

Overview

2.4MP IR Bullet Camera - 30Mtr. Features 2.4MP PS CMOS Image Sensor Max. 2.4MP (1920 x 1080)@25/30fps DWDR, Day/Night (ICR), 2D DNR, AWB, AGC, BLC 3.6mm Fixed lens (2.8mm and 6mm optional) IR Range of 30 Mtrs., IP67 OSD Menu, control over coaxial cable, 2D-DNR CVI/CVBS/AHD/TVI switchable Specifications Image Sensor: 2.4MP PS CMOS Image Sensor Max. Resolution: 1920 (H) × 1080 (V) Minimum Illumination: 0.02 lux@F2.0 (Color, 30 IRE), 0.002 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on Shutter Speed: PAL: 1/25 s–1/100,000 s, NTSC: 1/30 s–1/100,000 s Lens: 3.6mm (2.8mm and 6mm optional) Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° Lens Type: Fixed-focal Lens Mount: M12 Max. Aperture: F2.0 Angle of View: 3.6 mm: H: 80°, V: 43°, D: 94°; 2.8 mm: H: 100°, V: 54°, D: 117°; 6 mm: H: 43°, V: 24°, Close Focus Distance: 3.6 mm: 0.8 m; 2.8 mm: 0.5 m; 6 mm: 2.4 m DORI Distance: 3.6mm– 55.0m (Detect), 22.0m (Observe), 11.0m (Recognize), 5.5m (Identify) 2.8mm– 44.7m (Detect), 17.9m (Observe), 8.9m (Recognize), 4.5m (Identify) 6mm– 102.9m (Detect), 41.1m (Observe), 20.6m (Recognize), 10.3 (Identify) Back Light Compensation: BLC/DWDR Iris Control: Fixed White Balance: Auto Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port Noise Reduction: 2D DN Gain Control (AGC): Auto Day/Night: Auto(ICR)/Color/B/W Resolution: 1080p (1920 × 1080), 960H (960 × 576/960 × 480) Frame Rate: CVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS: PAL: 960H NTSC: 960H IR Mode: Smart IR IR: IR Range of 30 Mtr., IR Control: Auto Operating Temperature: -40°C ~ +60°C (-40°F ~ +140°F) Operating Humidity: <95% (RH), non-condensing Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity: <95% (RH), non-condensing Power Source: 12V DC ±30% Power Consumption: Max. 2.8 W (12 VDC, IR on) Dimension: 146.1 mm × 70.0 mm × 69.8 mm Weight: 0.15 Kg.

Full specifications
IRIR Range of 30 Mtr.,
Lens3.6mm (2.8mm and 6mm optional)
Weight0.15 Kg.
IR ModeSmart IR
Day/NightAuto(ICR)/Color/B/W
Dimension146.1 mm × 70.0 mm × 69.8 mm
Lens TypeFixed-focal
Frame RateCVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS: PAL: 960H NTSC: 960H
IR ControlAuto
Lens MountM12
Resolution1080p (1920 × 1080), 960H (960 × 576/960 × 480)
Image Sensor2.4MP PS CMOS Image Sensor
Iris ControlFixed
Power Source12V DC ±30%
Video OutputVideo output choices of CVI/TVI/AHD/CVBS by one BNC port
Angle of View3.6 mm: H: 80°, V: 43°, D: 94°; 2.8 mm: H: 100°, V: 54°, D: 117°; 6 mm: H: 43°, V: 24°,
DORI Distance3.6mm– 55.0m (Detect), 22.0m (Observe), 11.0m (Recognize), 5.5m (Identify) 2.8mm– 44.7m (Detect), 17.9m (Observe), 8.9m (Recognize), 4.5m (Identify) 6mm– 102.9m (Detect), 41.1m (Observe), 20.6m (Recognize), 10.3 (Identify)
Max. ApertureF2.0
Shutter SpeedPAL: 1/25 s–1/100,000 s, NTSC: 1/30 s–1/100,000 s
White BalanceAuto
Max. Resolution1920 (H) × 1080 (V)
Noise Reduction2D DN
Angle AdjustmentPan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
Storage Humidity<95% (RH), non-condensing
Power ConsumptionMax. 2.8 W (12 VDC, IR on)
Gain Control (AGC)Auto
Operating Humidity<95% (RH), non-condensing
Storage Temperature–40 °C to +60 °C (–40 °F to +140 °F)
Close Focus Distance3.6 mm: 0.8 m; 2.8 mm: 0.5 m; 6 mm: 2.4 m
Minimum Illumination0.02 lux@F2.0 (Color, 30 IRE), 0.002 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on
Operating Temperature-40°C ~ +60°C (-40°F ~ +140°F)
Back Light CompensationBLC/DWDR
What’s in the box

Confirm the supplied items with our team.

Warranty

Warranty information will be confirmed before purchase.
