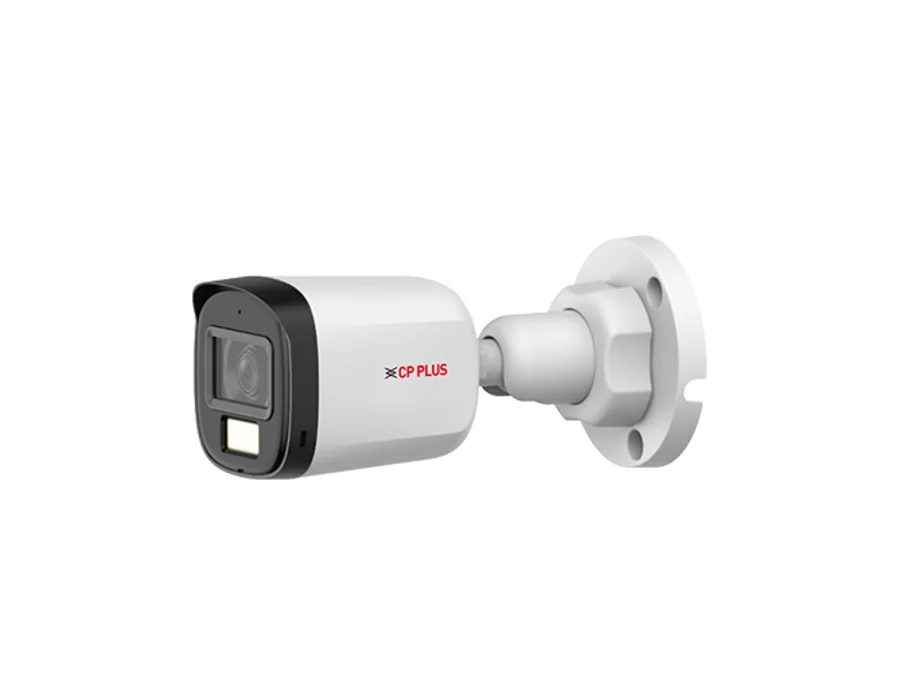

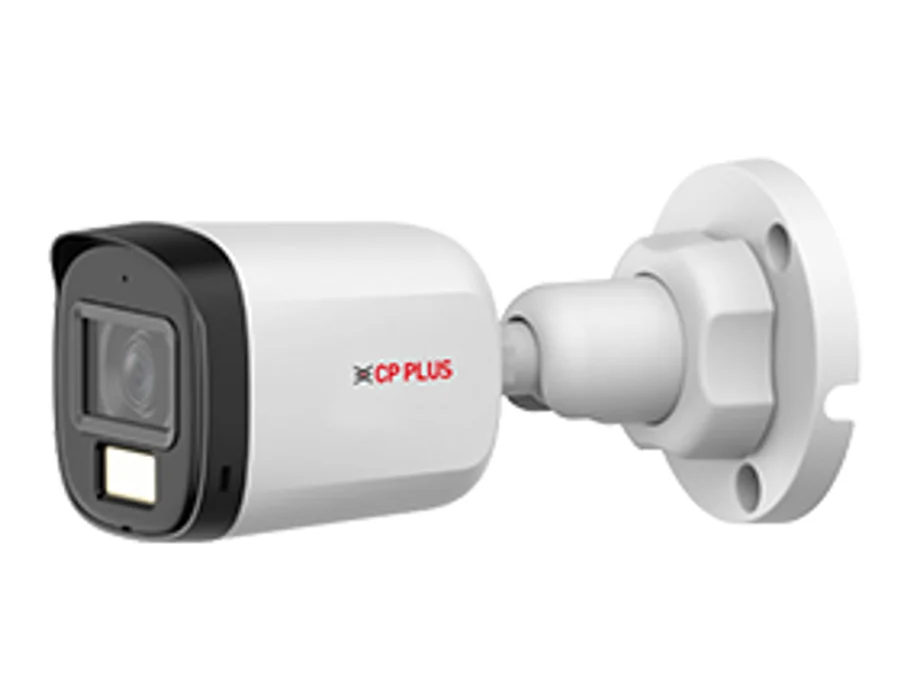

CP Plus CP-URC-TC24PL3C-L-V2 – 2.4MP Dual Light Bullet Camera - 30Mtr.

2.4MP Dual Light Bullet Camera - 30Mtr. Features 2.4MP PS CMOS Image Sensor Max. 2.4MP (1920×1080)@25/30fps DWDR, Day/Night (ICR), 2D DNR, BLC, HLC 3.6mm Fixed Lens (2.8 mm and 6mm optional) IR Range of 30 Mtrs., Warm Light Range of 20 Mtrs., Smart IR 4 Signals over 1 Coaxial Cable Support Built-in Mic, IP67 Specifications Image Sensor: 2.4MP PS CMOS Image Sensor Max. Resolution: 1920 (H) × 1080 (V) Minimum Illumination: 0.02 lux F2.0 (Color, 30 IRE), 0.002 lux F2.0 (B/W, 30 IRE), 0 lux (IR on) Angle Adjustment: Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° Shutter Speed: PAL: 1/25 s–1/100,000 s, NTSC: 1/30 s–1/100,000 s White Balance: Auto, Area white balance Lens Mount: M12 Close Focus Distance: 3.6 mm: 0.8 m, 2.8 mm: 0.5 m, 6 mm: 2.4 m Gain Control (AGC): Auto, Manual Max. Aperture: F2.0 DORI Distance: Lens 3.6 mm: 55.0 m (Detect), 22.0 m (Observe), 11.0 m (Recognize), 5.5 m (Identify) Lens 2.8 mm: 44.7 m (Detect), 17.9 m (Observe), 8.9 m (Recognize), 4.5 m (Identify) Lens 6 mm: 102.9 m (Detect), 41.1 m (Observe), 20.6 m (Recognize), 10.3 m (Identify) Lens: 3.6 mm (2.8 mm and 6 mm Optional) Lens Type: Fixed- Focal Angle of View: 3.6 mm: H: 80°, V: 43°, D: 94°; 2.8 mm: H: 100°, V: 54°, D: 117°; 6 mm: H: 43°, V: 24°, D: 50° Back Light Compensation: BLC/ HLC/ DWD Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port Resolution: 1080p (1920 × 1080), 960H (960 × 576/960 × 480) Frame Rate: CVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS: PAL: 960H NTSC: 960H Noise Reduction: 2D DNR Privacy Mask: Off/On (8 areas, rectangle) Day/Night: Auto (ICR)/Color/B/W Iris Control: Fixed IR Control: Auto, Manual IR Number: 2 (Warm light), 2 (IR light) IR: IR Range of 30 Mtr., IR Mode: Smart IR&WL, WL Mode, IR Mirror Function: Support Weatherproof Standard: IP66 Power Source: 12 VDC ±30% Power Consumption: Max 3.3 W (12 VDC, LED on) Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity: <95% (RH), non-condensing Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity: <95% (RH), non-condensing Dimension: 146.1 mm × 70.0 mm × 69.8 mm Weight: 0.1

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
