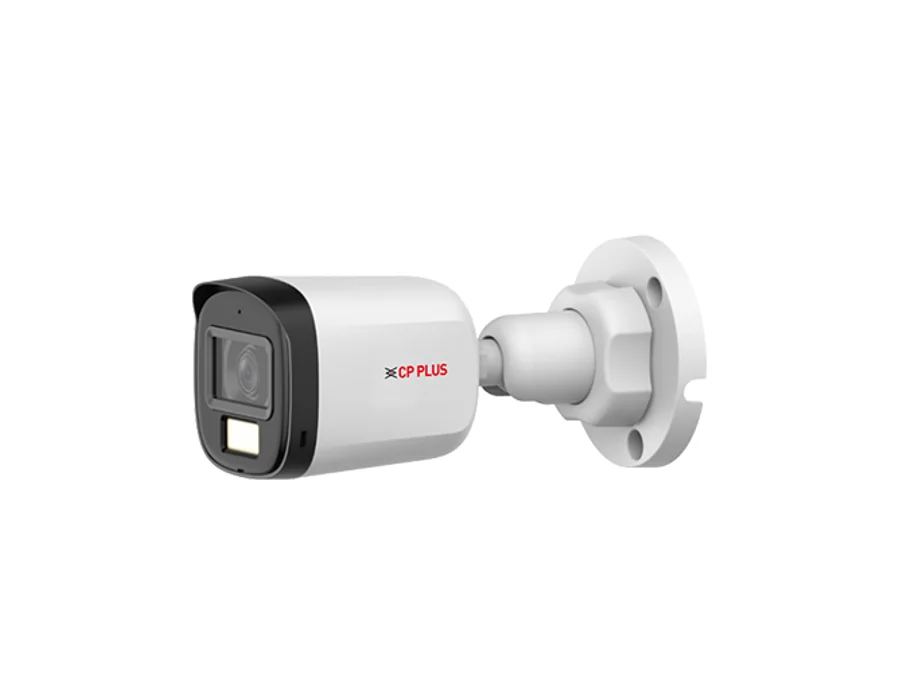

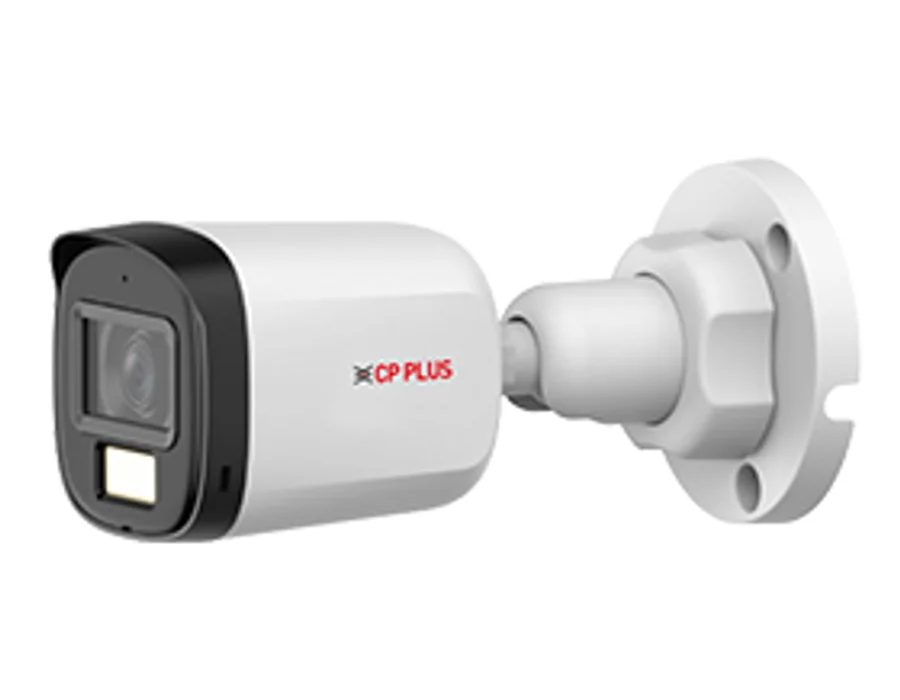

CP Plus CP-URC-TC51PL3C-L-V2 – 5MP Dual Light Bullet Camera - 30Mtr.

5MP Dual Light Bullet Camera - 30Mtr. Features 1/2.7” 5MP PS CMOS Image Sensor (0.9407 centimeters) DWDR, Day/Night (ICR), 2D DNR, BLC, HLC .6mm Fixed Lens (2.8mm, 6mm Optional) IR Range of 30 Mtrs., Warm Light Range of 20 Mtrs.,Smart IR, IP67 Support Built-in Mic Specifications Image Sensor: 1/2.7” 5MP PS CMOS Image Sensor (0.9407 centimeters) Minimum Illumination: 0.02 lux@F2.0 (Color, 30 IRE) 0.002 lux@F2.0 (B/W, 30 IRE) 0 lux (IR on) Effective Pixels: 2880 (H) × 1620 (V) Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° Shutter Speed: PAL: 1/25 s–1/100,000 s, NTSC: 1/30 s–1/100,000 s White Balance: Auto, Area white balance Lens Type: Fixed-focal Max. Aperture: F2. Lens Mount: M12 Close Focus Distance: 3.6 mm: 1.3 m, 2.8 mm: 1.0 m, 6 mm: 2.8 m DORI Distance: 3.6 mm: 76.0 Mtr. (Detect), 30.4 Mtr. (Observe), 15.2 Mtr. (Recognize), 7.6 Mtr. (Identify) 2.8 mm: 66.0 Mtr. (Detect), 26.4 Mtr. (Observe), 13.2 Mtr. (Recognize), 6.6 Mtr. (Identify) 6 mm: 120.0 Mtr. (Detect), 48.0 Mtr. (Observe), 24.0 Mtr. (Recognize), 12.0 Mtr. (Identify) Gain Control (AGC): Auto Lens: 3.6mm Fixed Lens (2.8mm, 6mm Optional) Angle of View: H: 92°, V: 48°, D: 109°; 2.8 mm: H: 106°, V: 56°, D: 125°; 6 mm: H: 54°, V: 29°, D: 62° S/N Ratio: >56 dB Back Light Compensation: BLC/ HLC/ DWDR Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port Resolution: 4M (2560 × 1440), 2M (1920 × 1080), 960H (960 × 576/960 × 480) Frame Rate: CVI: PAL: 5M@25 fps, 4M@25 fps, 2M@25 fps, NTSC: 5M@25 fps, 4M@30 fps, 2M@30 fps AHD: PAL: 4M@25 fps, NTSC: 4M@30 fps TVI: PAL: 4M@25 fps, NTSC: 4M@30 fps CVBS: PAL: 960H, NTSC: 960H Noise Reduction: 2D DNR Privacy Mask: Off/On (8 areas, rectangle) Day/Night: Auto(ICR)/Color/B/W Iris Control: Fixed IR Mode: Smart IR&WL, WL Mode, IR Mode IR Control: Auto, Manual IR Number: 2 Warm light, 2 IR light IR: IR Range of 30 Mtr., Warm Light: IR Range of 30 Mtr., Mirror Function: Support Weatherproof Standard: IP66 Anti-corrosion Level: Basic Protection Power Source: 12 VDC ± 30% Power Consumption: Max 4.0 W (12V DC, WLED on) Operating Temperature: –40°C to +60°C (–40°F to +140°F) Operating Humidity: <95% (RH), non-condensing Weight: 0.17 kg Dimension: 146.1mm × 70.0mm × 69.8mm

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
