CP Plus CP-HA-RK4535VM-2U – 2U DVR/ NVR Rack- Modular (Value Series)
2U DVR/ NVR Rack- Modular (Value Series)

SKU: CPPLUS-1975 · Model: CP-UVC-TB24FL6-B
In Stock
Enter your PIN code to find delivery options and a nearby store.

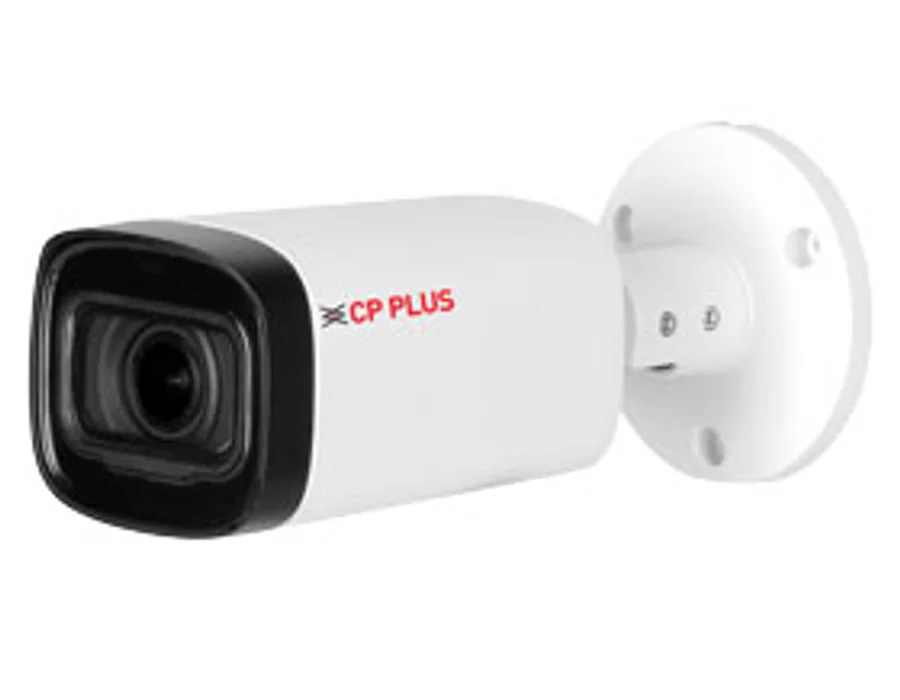

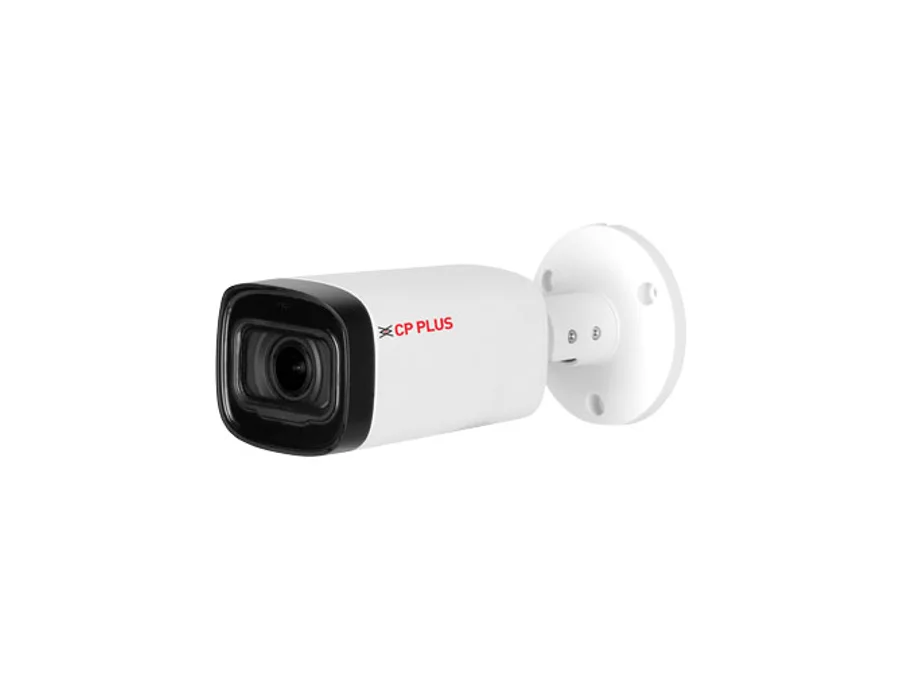

2.4MP Full HD HDCVI IR Bullet Camera - 60Mtr. Features 1/2.8” 2.4MP CMOS Image Sensor (0.9071 centimeters) Max 30fps@2.4MP HD and SD output switchable WDR(120dB), Day/Night(ICR), 2D/3D-DNR, AWB, AGC, BLC, HLC 2.7-13.5mm Vari-focal lens (7-22mm optional) IR Range of 60 Mtrs., IP67 Support Starlight Technology Specifications Image Sensor: 1/2.8” 2.4MP CMOS Image Sensor (0.9071 centimeters) Minimum Illumination: 0.005Lux/F1.3, 30IRE, 0Lux IR on Shutter Speed: PAL: 1/4s~1/100000s NTSC: 1/3s~1/100000s White Balance: Auto / Manual Gain Control (AGC): Auto/Manua Lens: 2.7-13.5mm (7-22mm optional) Back Light Compensation: BLC / HLC / WDR(120dB) S/N Ratio: More than 65dB Angle of View: H: 102°~29°(40°~17°) Video Streaming: 25/30fps@2.4MP, 25/30fps@720P Video Output: 1-channel BNC high definition video output / CVBS video output (Can switch) Resolution: 2.4MP ICR: Auto (ICR) / Manual IR: IR Range of 60 Mtr., Smart IR Operating Temperature: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH Power Source: 12V DC ±25% Power Consumption: Max 10.1W (12V DC, IR on) Casing: Aluminium Dimension: 213.0mm×90.4mm×90.4mm Weight: 0.61kg
| IR | IR Range of 60 Mtr., Smart IR |
|---|---|
| ICR | Auto (ICR) / Manual |
| Lens | 2.7-13.5mm (7-22mm optional) |
| Casing | Aluminium |
| Weight | 0.61kg |
| Dimension | 213.0mm×90.4mm×90.4mm |
| S/N Ratio | More than 65dB |
| Resolution | 2.4MP |
| Image Sensor | 1/2.8” 2.4MP CMOS Image Sensor (0.9071 centimeters) |
| Power Source | 12V DC ±25% |
| Video Output | 1-channel BNC high definition video output / CVBS video output (Can switch) |
| Angle of View | H: 102°~29°(40°~17°) |
| Shutter Speed | PAL: 1/4s~1/100000s NTSC: 1/3s~1/100000s |
| White Balance | Auto / Manual |
| Video Streaming | 25/30fps@2.4MP, 25/30fps@720P |
| Power Consumption | Max 10.1W (12V DC, IR on) |
| Gain Control (AGC) | Auto/Manua |
| Minimum Illumination | 0.005Lux/F1.3, 30IRE, 0Lux IR on |
| Operating Temperature | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
| Back Light Compensation | BLC / HLC / WDR(120dB) |
Confirm the supplied items with our team.
Warranty information will be confirmed before purchase.
