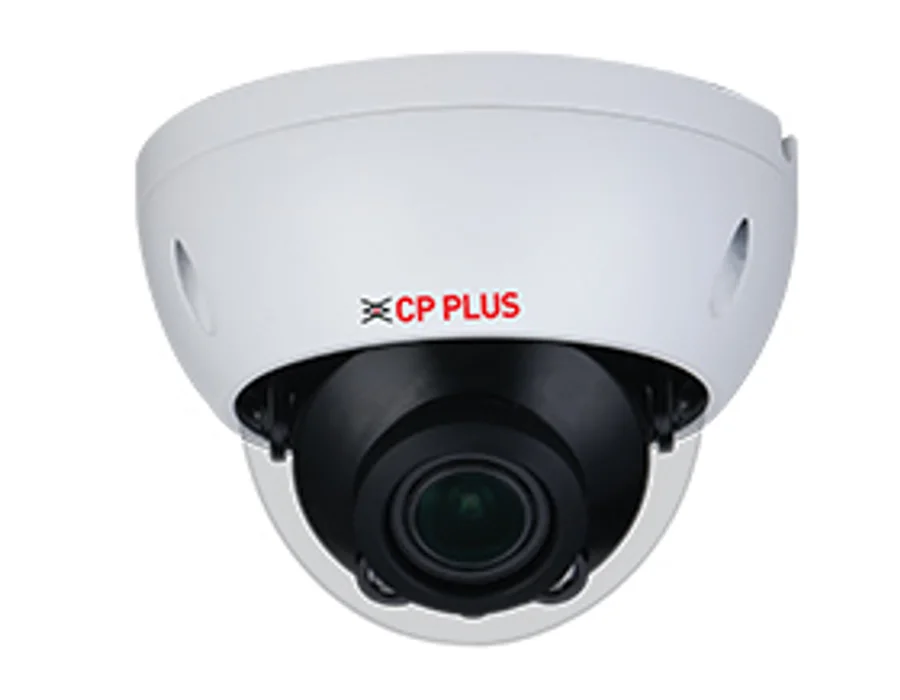

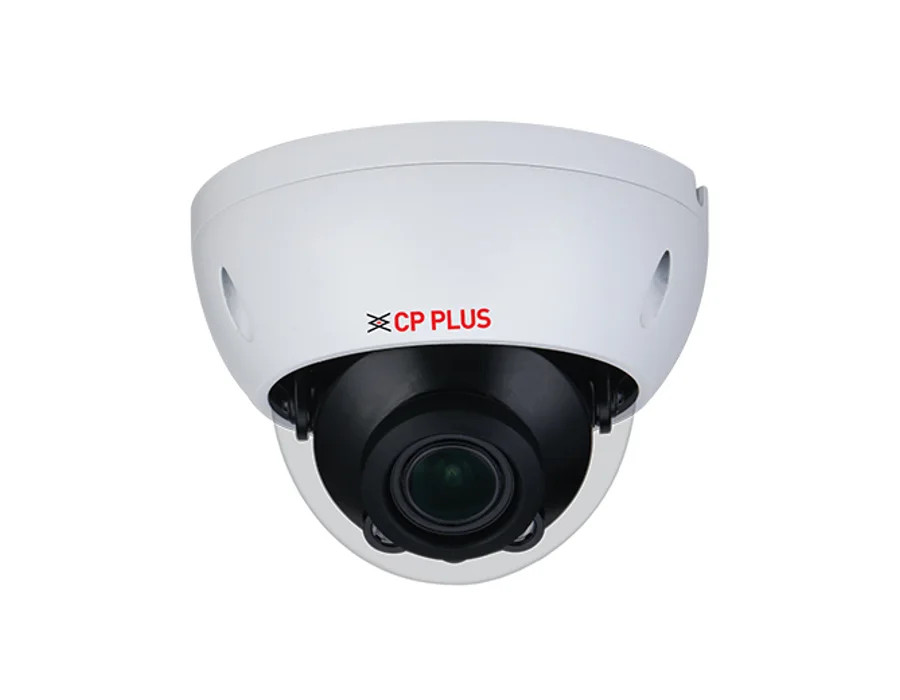

CP Plus CP-UVC-VB24FL3-B – 2.4MP Full HD HDCVI IR Vandal Dome Camera - 30Mtr.

SKU: CPPLUS-1973 · Model: CP-UVC-VB24FL3-B

Price on request
  • 2.4MP Full HD HDCVI IR Vandal Dome Camera - 30Mtr.

In Stock

Enquire on WhatsApp

Enter your PIN code to find delivery options and a nearby store.

Overview

2.4MP Full HD HDCVI IR Vandal Dome Camera - 30Mtr. Features 1/2.8” 2.4MP CMOS Image Sensor (0.9071 centimetres) Max 30fps@2.4MP HD and SD output switchable WDR(120dB), Day/Night(ICR), 2D/3D-DNR, AWB, AGC, BLC, HLC 2.7-13.5mm Varifocal Lens IR Range of 30 Mtrs., IP67, IK10 Support Starlight Technology Specifications Image Sensor: 1/2.8” 2.4MP CMOS Image Sensor (0.9071 centimetres) Minimum Illumination: 0.005Lux/F1.3, 30IRE, 0Lux IR on Shutter Speed: PAL: 1/4s~1/100000s NTSC: 1/3s~1/100000s White Balance: Auto / Manual Gain Control (AGC): Auto/Manual Lens: 2.7-13.5mm Varifocal Lens Back Light Compensation: BLC / HLC / WDR(120dB) Angle of View: H: 102°~29° Video Streaming: 25/30fps@2.4MP, 25/30fps@720P Video Output: 1-channel BNC high definition video output / CVBS video output (Can switch) ICR: Auto (ICR) / Manual OSD Menu: Multi-language IR: IR Range of 30 Mtr., Smart IR Operating Temperature: -40°C ~ +60°C (-40°F ~ +140°F) Operating Humidity: Less than 90% RH Power Source: 12V DC ±25% Power Consumption: Max 5.4W (12V DC, IR on) Weatherproof Standard: IP67 Dimension: 122mm×88.9mm Weight: 0.47kg

Full specifications
IRIR Range of 30 Mtr., Smart IR
ICRAuto (ICR) / Manual
Lens2.7-13.5mm Varifocal Lens
Weight0.47kg
OSD MenuMulti-language
Dimension122mm×88.9mm
Image Sensor1/2.8” 2.4MP CMOS Image Sensor (0.9071 centimetres)
Power Source12V DC ±25%
Video Output1-channel BNC high definition video output / CVBS video output (Can switch)
Angle of ViewH: 102°~29°
Shutter SpeedPAL: 1/4s~1/100000s NTSC: 1/3s~1/100000s
White BalanceAuto / Manual
Video Streaming25/30fps@2.4MP, 25/30fps@720P
Power ConsumptionMax 5.4W (12V DC, IR on)
Gain Control (AGC)Auto/Manual
Operating HumidityLess than 90% RH
Minimum Illumination0.005Lux/F1.3, 30IRE, 0Lux IR on
Operating Temperature-40°C ~ +60°C (-40°F ~ +140°F)
Weatherproof StandardIP67
Back Light CompensationBLC / HLC / WDR(120dB)
What’s in the box

Confirm the supplied items with our team.

Warranty

Warranty information will be confirmed before purchase.
