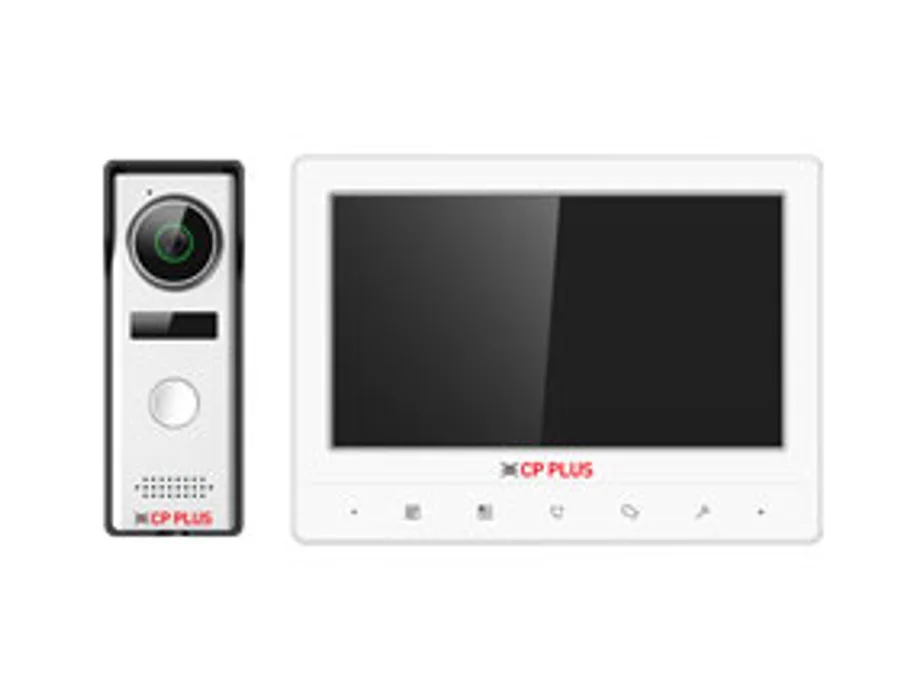

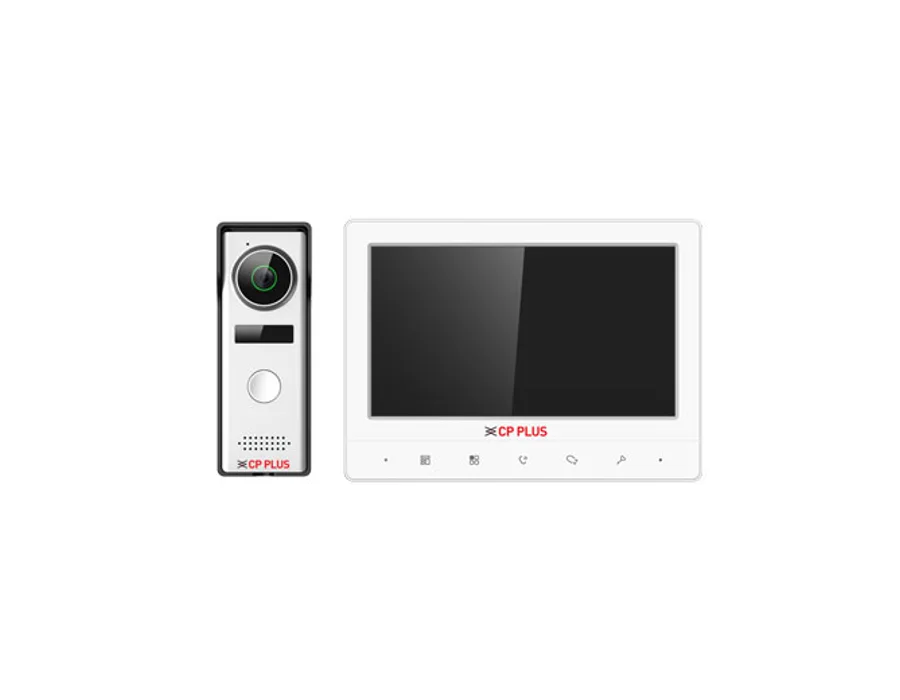

CP Plus CP-UVK-701A – Video Intercom Kit

Video Intercom Kit Features 7" TFT screen (17.78cm) Video intercom function: Unlock, voice call, video call, volume adjustment System Capacity: 2 door stations + 3 indoor monitors Multiple bell sounds Supports digital wide dynamic range (DWDR) Specifications Communication Mode: Analog Display: 7.0" TFT (17.78cm) Audio Input: 1 channel to the microphone; pickup distance 0.5 m Audio Output: 1 channel to the speaker IR: Auto IR Power Source: Powered by indoor monitor (Outdoor) ; DC 12V/2A (Monitor) Power Consumption: ≤ 1W (standby) ; ≤ 3W (working) - Outdoor ; ≤ 2W (standby) ≤ 5W (working) - Monitor Operating Temperature: -30°C to +60°C (-22°F to +140°F) Humidity: 10%RH–95%RH Dimension: 131.45 mm × 46.00 mm × 33.80 mm (outdoor) ; 133.90mm × 182.70mm × 17.70mm (Monitor) IP Rating: IP66 (Apply silicon sealant to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide). Casing: PC + ABS Weight: 0.18 kg (Outdoor) ; 0.25kg (Monitor)

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
