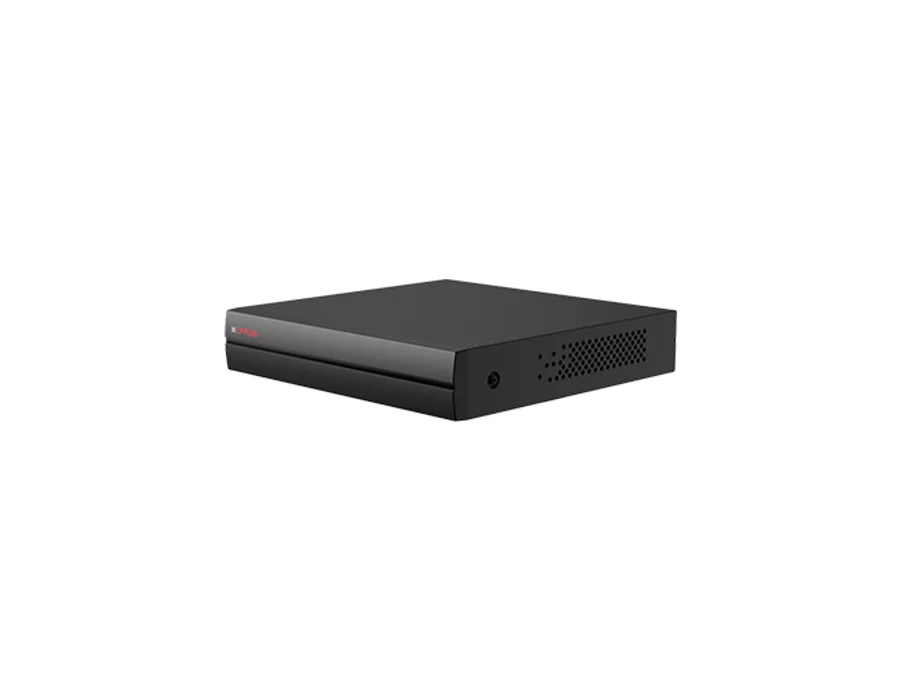

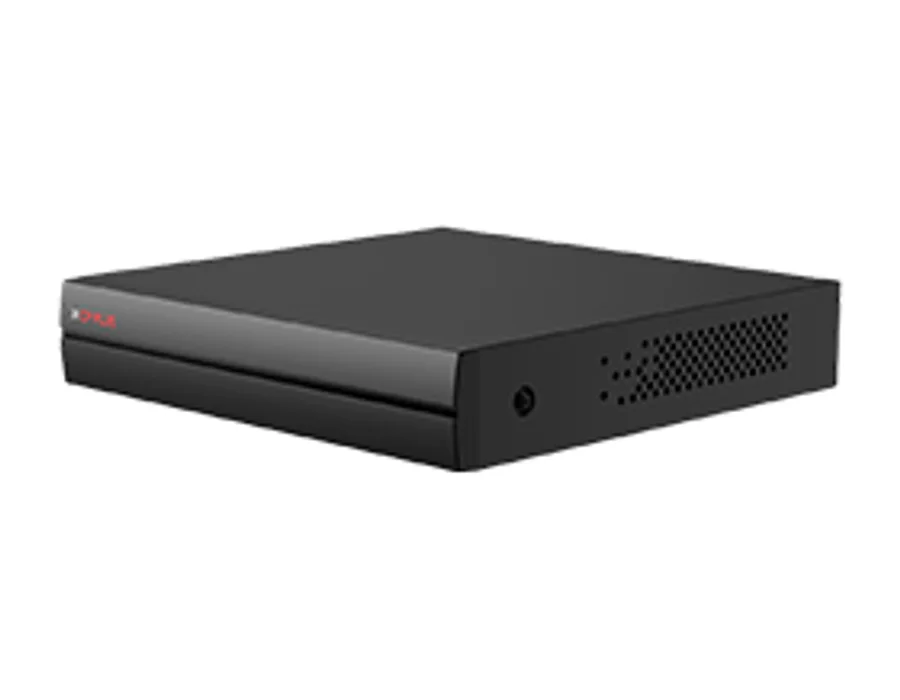

CP Plus CP-UVR-0401E1V-I – 4Ch. 1080N Digital Video Recorder

4Ch. 1080N Digital Video Recorder Features Supports HDCVI, AHD, TVI, CVBS and IP video input Supports up to 5 Channels IP camera input and each channel can be up to 2MP The incoming bandwidth reaches 20 Mbps 4 Channels two-way talk over coaxial cable allows for seamless communication between the camera, Client and recorder 4 Channels IMD+ for analog channels which allows the device to trigger accurate alarms for humans and vehicles 4 Channels AI Coding saves on storage and bandwidth while maintaining the details of targets in videos Instastream, H.265, H.264+, H.264 dual stream video compression Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite Specifications Processor: Industrial-grade processor Operating System: Embedded Linux User Interface: Web, Local GUI IMD+ by DVR: 4 Channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change IMD By Camera: 5 Channels Analog Camera Input: 4 BNC ports, Supports HDCVI/AHD/TVI/CVBS autodetect Camera Input: 1. CVI: 1080p@25/30fps; 720p@50/60fps; 720p@25/30fps 2. TVI: 1080p@25/30fps; 720p@25/30fps 3. AHD: 1080p@25/30fps; 720p@25/30fps IP Camera Input: Up to 5 Channels of IPC access 1 IP channel by default + 4 channels (Analog channels are converted to IP channels) Incoming bandwidth: 20 Mbps, recording bandwidth: 20 Mbps and outgoing bandwidth: 20 Mbps *After IP extension is enabled, the AI Function (IMD) will be disabled Stream Capability: Dual stream Video Frame Rate: Main stream: 1080N/720p/960H/D1/CIF@(1fps–25/30fps) Sub stream: CIF@(1fps–15fps) Bit Rate: 32 kbps–4096 kbps Audio Sample Rate: 8 kHz, 16 bit Audio Bit Rate: 64 kbps Video Output: 1 HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 1 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Video Display Split: When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6 Video Compression: AI Coding, Instastream, H.265, H.264+, H.264 Audio Compression: G.711a, G.711u, PCM, AAC Protocols: HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, Alarm Server, InstaOn, Auto Connect, IP Search, ONVIF 24.06 (Profile T, Profile S, Profile G), CGI, SDK Smart Phone: iOS, Android Browser: Chrome, IE, Safari, Edge, Firefox Recording Playback: 1/4 Backup Mode: USB device and network Playback Mode: Instant playback, General playback, Event playback, Tag playback, Smart playback Intelligent Alarm: IMD Alarm Linkage: Record, Snapshot (panoramic), IPC external alarm output, Audio, Buzzer, Log, Preset, Email Audio Input: 1 Channel RCA 4 Channel BNC (Coaxial Audio) Two-way Talk: Coaxial two-way talk: 4 Channel BNC Local and network user two-way talk: Shares the same audio input with the first channel Disk Interface: 1 SATA port, up to 6 TB. This limit varies depending on the environment temperature Interface Ports: 2 USB (2 rear USB 2.0 ports) Ethernet: 1 (10/100 Mbps Ethernet port, RJ-45) Power Supply: 12 VDC, 1.5 A Power Consumption: <7 W (without HDD) Operating Temperature: –10°C to +45°C (+14°F to +113°F) Operating Humidity: 10%–90% (RH), non-condensing Dimension: 197 mm × 204.3 mm × 41.5 mm Weight: 540g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
