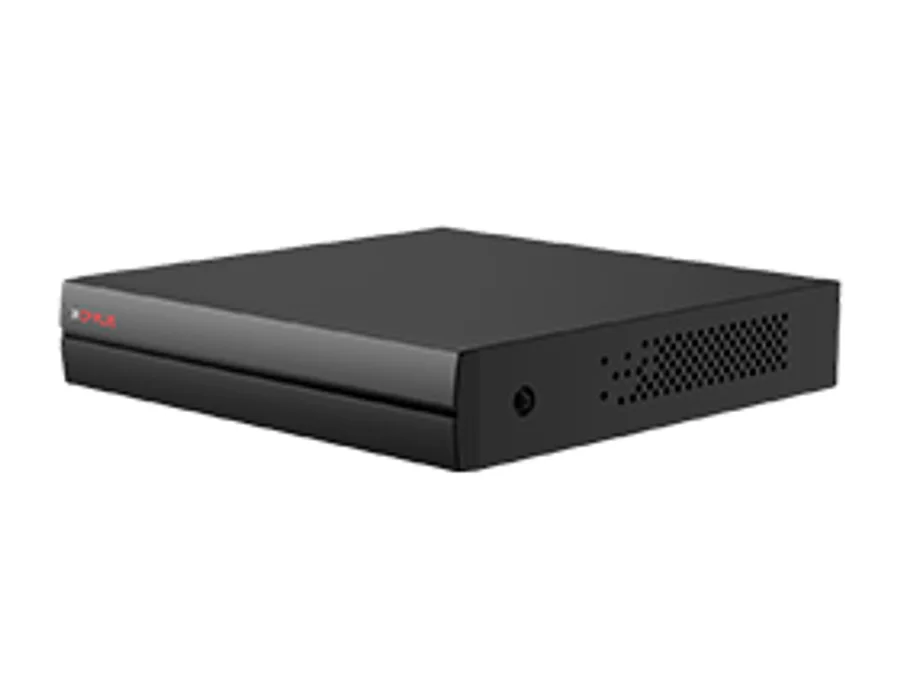

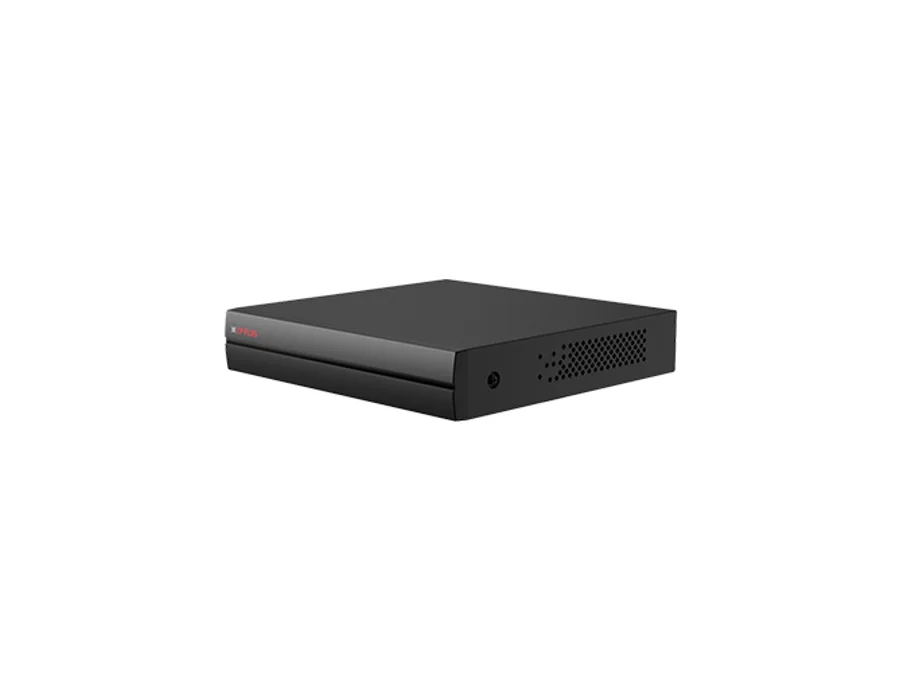

CP Plus CP-UVR-0401F1V-I – 4Ch. 5MP Digital Video Recorder

4Ch. 5MP Digital Video Recorder Features Supports HDCVI, AHD, TVI, CVBS and IP video input Supports up to 6 Channels IP camera input and each channel can be up to 6MP The incoming bandwidth reaches 32 Mbps 4 Channels two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder 4 Channels IMD+ for analog channels or 6 Channels IMD by camera which allows the device to trigger accurate alarms for humans and vehicles 4 Channels AI Coding saves on storage and bandwidth while maintaining the details of targets in videos Instastream, H.265, H.264+, H.264 dual stream video compression Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite Specifications Processor: Industrial-grade processor Operating System: Embedded LINUX User Interface: Web, Local GUI IMD+ by DVR: 4 Channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change IMD By Camera: 6 Channels Irregular Black Block Masking by DVR: 1 Channel Analog Camera Input: 4 BNC ports, supports HDCVI/AHD/TVI/CVBS autodetect Camera Input: 1. CVI: 5MP@25fps, 5MP@20fps, 5MP@10/12.5fps, 4MP@25/30fps, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps 2. TVI: 5MP(2560 x 1944)@20fps, 5MP(2960 x 1665)@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps 3. AHD: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps IP Camera Input: Up to 6 Channels of IPC access 2 IP channels by default + 4 Channels (analog channels are converted to IP channels) Incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps Stream Capability: Dual stream Video Frame Rate: Main stream: 5MP Mode: 4 Channels 5MP@(1fps-6fps), others 5MN@(1fps-12fps) 5M-N Mode: 5M-N@(1fps–12fps), 4M-N/ 1080p@(1fps–15fps), 1080N/720p/960H/D1/CIF@(1fps 25/30fps) Sub stream: D1/CIF@(1fps–15fps) Bit Rate: 32 kbps–6144 kbps Audio Sample Rate: 8 kHz, 16 bit Audio Bit Rate: 64 kbps Video Output: 1 HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720; 1 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Video Display Split: When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6 Video Compression: AI Coding, Instastream, H.265, H.264+, H.264 Audio Compression: G.711a, G.711u, PCM, AAC Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm, Server, InstaOn, Auto Connect, IP Search, ONVIF 24.12 (Profile T, Profile S, Profile G), CGI, SDK Smart Phone: iOS, Android Browser: Chrome, IE; Safari, Edge, Firefox Record Mode: General, Alarm, Motion detection Recording Playback: 1/4 Backup Mode: USB device and network Playback Mode: Instant playback, General playback, Event playback, Tag playback, Smart playback General Alarm: Motion detection, HDCVI alarm, Camera external alarm, Network alarm, PIR alarm Abnormality Alarm: Error (No disk, Disk error, Low space, Low quota space, Network disconnection, IP conflict, MAC conflict), Video loss, Video tampering, Camera offline Intelligent Alarm: IMD+ Alarm Linkage: Record, Snapshot (panoramic), IPC external alarm output, Audio, Buzzer, Log, Preset, Email Audio Input: 1 Channel RCA 4 Channels BNC (Coaxial Audio) Audio Output: 1 Channel RCA Two-way Talk: Coaxial two-way talk: 4-channel BNC Local and network user two-way talk: Shares the same audio input with the first channel Disk Interface: 1 SATA port, up to 16 TB. This limit varies depending on the environment temperature Interface Ports: 2 USB (2 rear USB 2.0 ports) Ethernet: 1 (10/100 Mbps Ethernet port, RJ-45) Power Supply: 12 VDC, 1.5 A Power Consumption: <4 W (without HDD) Operating Temperature: –10°C to +45°C (+14°F to +113°F) Operating Humidity: 10%–90% (RH), non-condensing Storage Temperature: –20°C to +60°C (–4°F to +140°F) Dimensions: 197.0 mm × 204.3 mm × 41.5 mm Weight: 580g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
