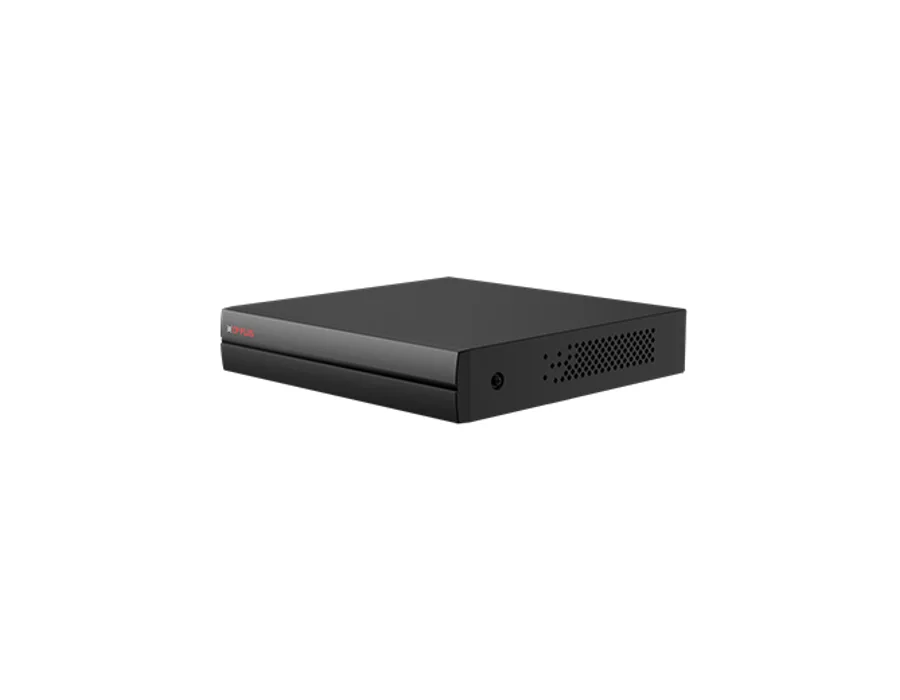

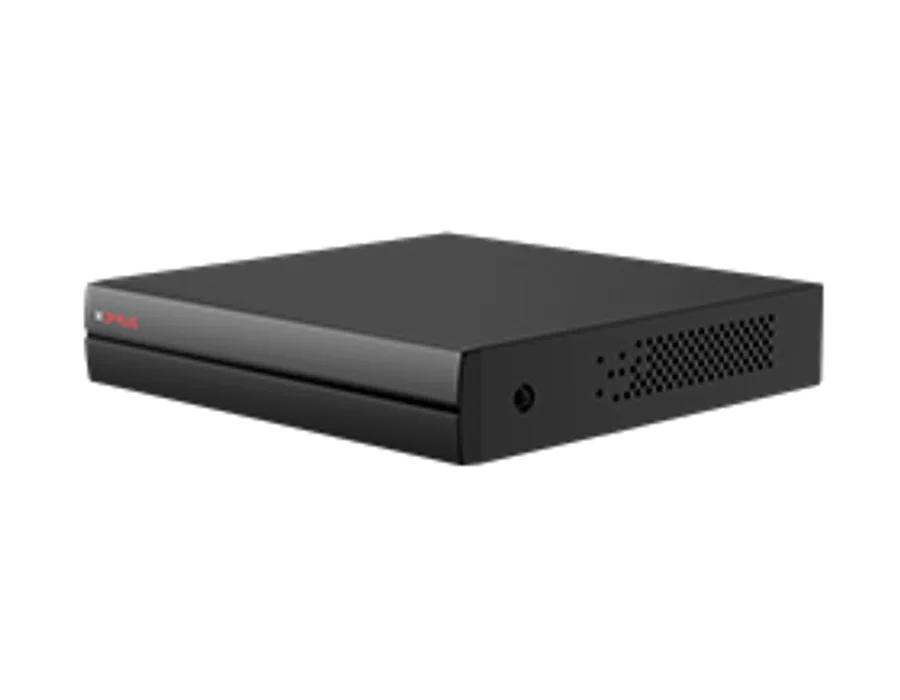

CP Plus CP-UVR-0801F1V-I – 8Ch. 5MP Digital Video Recorder

8Ch. 5MP Digital Video Recorder Features Supports HDCVI, AHD, TVI, CVBS and IP video input Supports up to 12 Channels IP camera input and each channel can be up to 6MP The incoming bandwidth reaches 64 Mbps 8 Channels two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder 8 Channels IMD+ for analog channels or 12 Channels IMD by camera which allows the device to trigger accurate alarms for humans and vehicles 8 Channels AI Coding saves on storage and bandwidth while maintaining the details of targets in videos Instastream, H.265, H.264+, H.264 dual stream video compression Mobile Software: iCMOB, gCMOB Specifications Processor: Industrial-grade processor Operating System: Embedded LINUX User Interface: Web, Local GUI IMD+ by DVR: 8 Channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change IMD By Camera: 12 Channels Irregular Black Block Masking by DVR: 1 Channel Analog Camera Input: 8 BNC ports, supports HDCVI/AHD/TVI/CVBS autodetect Camera Input: 1. CVI: 5MP@25fps, 5MP@20fps, 5MP@10/12.5fps, 4MP@25/30fps, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps 2. TVI: 5MP(2560 x 1944)@20fps, 5MP(2960 x 1665)@20fps; 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps 3. AHD: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps IP Camera Input: Up to 12 Channels of IPC access 4 IP channels by default + 8 channels (analog channels are converted to IP channels) Incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps stream Capability: Dual stream Video Frame Rate: Main stream: 5MP Mode: 4 Channels 5MP@(1fps-6fps), others 5MN@(1fps-12fps) 5M-N Mode: 5M-N@(1fps –12fps), 4M-N/ 1080p@(1fps–15fps), 1080N/720p/960H/D1/CIF@(1fps 25/30fps) Sub stream: D1/CIF@(1fps–15fps) Bit Rate: 32 kbps–6144 kbps Audio Sample Rate: 8 kHz, 16 bit Audio Bit Rate: 64 kbps Video Output: 1 HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720; 1 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Video Display Split: When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16 Video Compression: AI Coding, Instastream, H.265, H.264+, H.264 Audio Compression: G.711a, G.711u, PCM, AAC Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm, Server, InstaOn, Auto Connect, IP Search, ONVIF 24.12 (Profile T, Profile S, Profile G), CGI, SDK Smart Phone: iOS, Android Browser: Chrome, IE; Safari, Edge, Firefox Recording Playback: 1/4/9 Record Mode: General, Alarm, Motion detection Backup Mode: USB device and network Playback Mode: Instant playback, General playback, Event playback, Tag playback, Smart playback General Alarm: Motion detection, HDCVI alarm, Camera external alarm, Network alarm, PIR alarm Abnormality Alarm: Error (No disk, Disk error, Low space, Low quota space, Network disconnection, IP conflict, MAC conflict), Video loss, Video tampering, Camera offline Alarm Linkage: Record, Snapshot (panoramic), IPC external alarm output, Audio, Buzzer, Log, Preset, Email Audio Input: 1 Channel RCA 8 Channels BNC (Coaxial Audio) Two-way Talk: Coaxial two-way talk: 8 Channel BNC Local and network user two-way talk: Shares the same audio input with the first channel Disk Interface: 1 SATA port, up to 16 TB. This limit varies depending on the environment temperature. Interface Ports: 2 USB (2 rear USB 2.0 ports) Ethernet: 1 (10/100 Mbps Ethernet port, RJ-45) Power Supply: 12 VDC, 1.5 Power Consumption: <7 W (without HDD) Operating Temperature: –10°C to +45°C (+14°F to +113°F) Operating Humidity: 10%–90% (RH), non-condensing Dimension: 197.0 mm × 204.3 mm × 41.5 mm Weight: 590g
