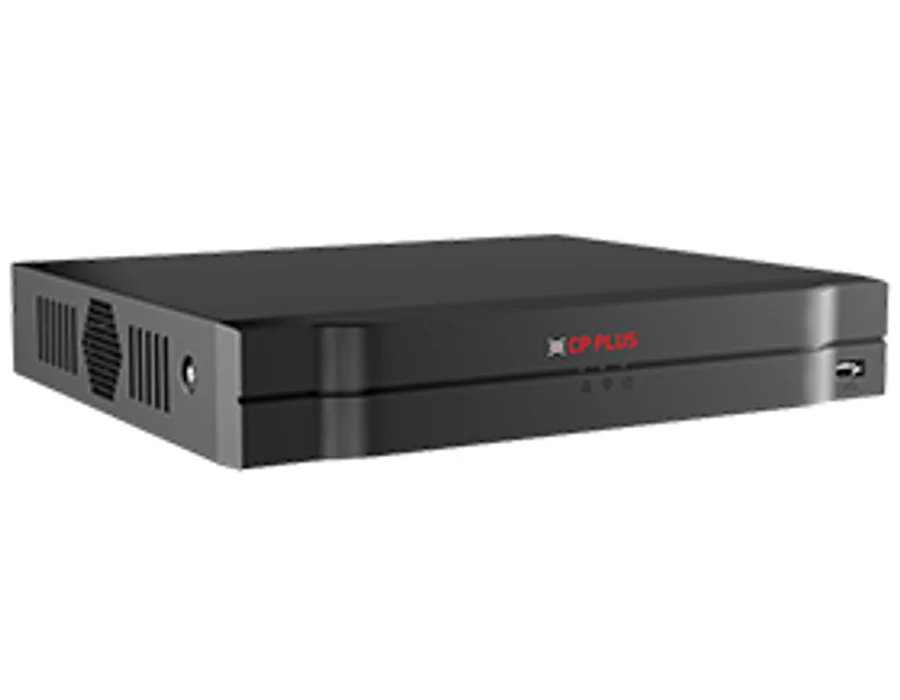

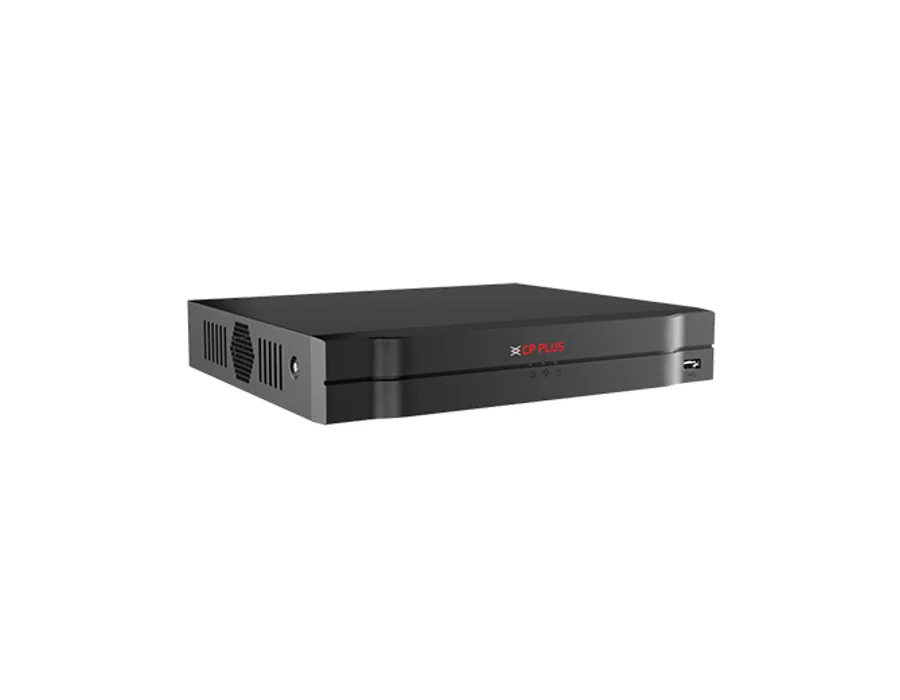

CP Plus CP-UVR-0801L1-4KI3-V2 – 8Ch. 5MP Digital Video Recorder

8Ch. 5MP Digital Video Recorder Features Supports HDCVI/AHD/TVI/CVBS/IP video inputs Max 16 channels IP camera inputs, each channel up to 8MP; Max 128Mbps incoming bandwidth Supports Full-channel AI Instastream Support 1 SATA HDD up to 16TB Each, 3 USB Ports Up to 8 channels video stream (analog channel) SMD Plus Up to 8 channels video stream (analog channel) perimeter protection Up to 2 channels video stream (analog channel) human face recognition AI Instastream/Instastream/H.265 dual-stream video compression Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Specifications Processor: Industrial-grade processor Operating System: Embedded LINUX IP Camera Input: Up to 16 channels of IPC access 8 IP channels by default + 8 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled. Camera Input: 1. CVI: 4K@25/30 fps; 6MP@20 fps; 5 MP@20 fps; 5MP@25 fps; 4MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps.2. TVI: 4K@15 fps; 5MP@20fps; 4MP@25/30 fps; 3MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.3. AHD: 4K@15 fps; 5MP@20 fps; 4MP@25/30 fps; 3MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps Two-way Talk: Support (share the same audio input with the first channel) User Interface: Web; Local GUI SMD Plus by DVR: 8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change Perimeter Performance of AI by DVR (Number of Channels): Advanced Model: 2 channels, 10 IVS for each channel General Model: 8 channels, 10 IVS for each channel Face Attributes: Gender; age group; glasses; expressions; face mask; beard Face Detection Performance of AI by DVR (Number of Channels): 2 channels (up to 12 face images each channel) Video Input: 8 channel, BNC Video Output: 1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable Video Compression: H.265+; Smart H.264+; H.264 Encode Strategy: AI Instastream; Instastream Video Streaming: Main stream: 4K@(1fps-7fps); 6 MP@(1fps-10fps); 5 MP@(1fps-12fps); 4K-N, 4 MP, 3 MP@ (1fps-15fps); 4M-N, 1080p, 720p, 960H, D1,CIF@(1fps–25/30fps); Sub stream: 960H@(1fps– 15fps); D1/CIF@(1 fps–25/30fps) Video Display Split: 1/4/8/9 Audio Input: 1-channel RCA, 8-channel BNC (Coaxial Audio) Bit Rate: 32 kbps–6144 kbps Audio Output: 1 channel, RCA Audio Sample Rate: 8KHz, 16 bit Per Channel Audio Bit Rate: 64Kbps Per Channel Audio Compression: G.711A, G.711U, PCM General Alarm: Motion detection; video loss; tampering Alarm Linkage: Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompt; buzzer; log; preset; email Smart Phone: iPhone, iPad, Android Phone Hard Disk: 1 SATA port, up to 16TB capacity disk. The maximum HDD capacity varies with environment temperature. Recording Playback: 1/4/9 Recording Mode: General, motion detection; intelligent; alarm; POS Playback: Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) Backup Mode: USB Device/Network Interface Ports: 2 (1 front USB 2.0 port, 1 rear USB 3.0 port), 1 RS485 Port Browser: Chrome, IE9 or later, Firefox Network Mode: Single-address mode Ethernet: 1 (10/100/1000 Mbps Ethernet port, RJ-45) Protocol: IPv4/IPv6, HTTP, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour, ONVIF Ver. 2.0 Power Supply: DC 12V, 2A Power Consumption: <10 W (without HDD) Operating Humidity: 10%–90% (RH) Operating Temperature: -10°C ~ +55°C (14°F ~ +131°F) Dimension: 260.0 mm × 237.9 mm × 47.6 mm

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
