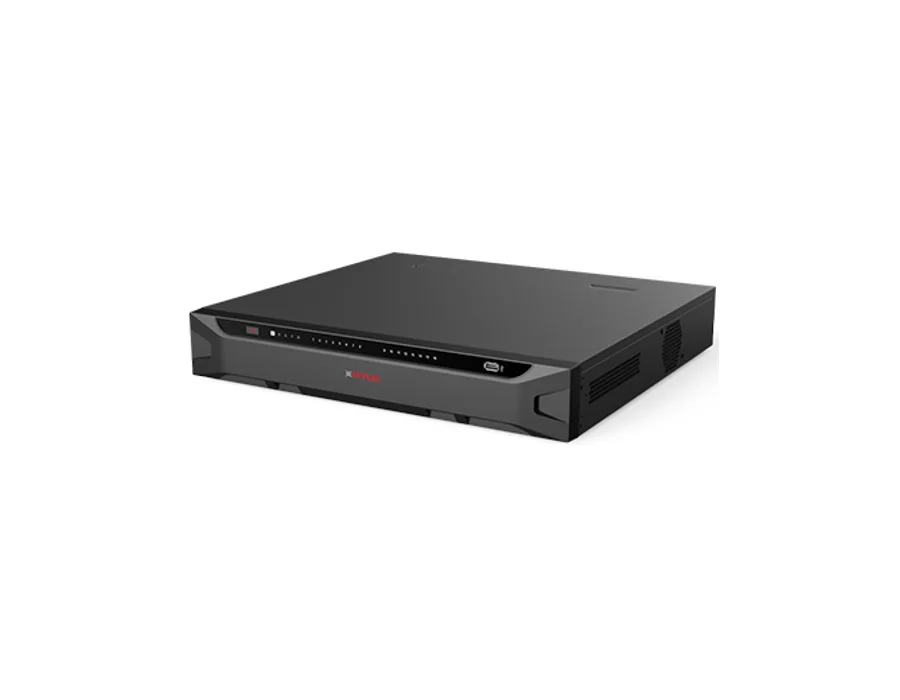

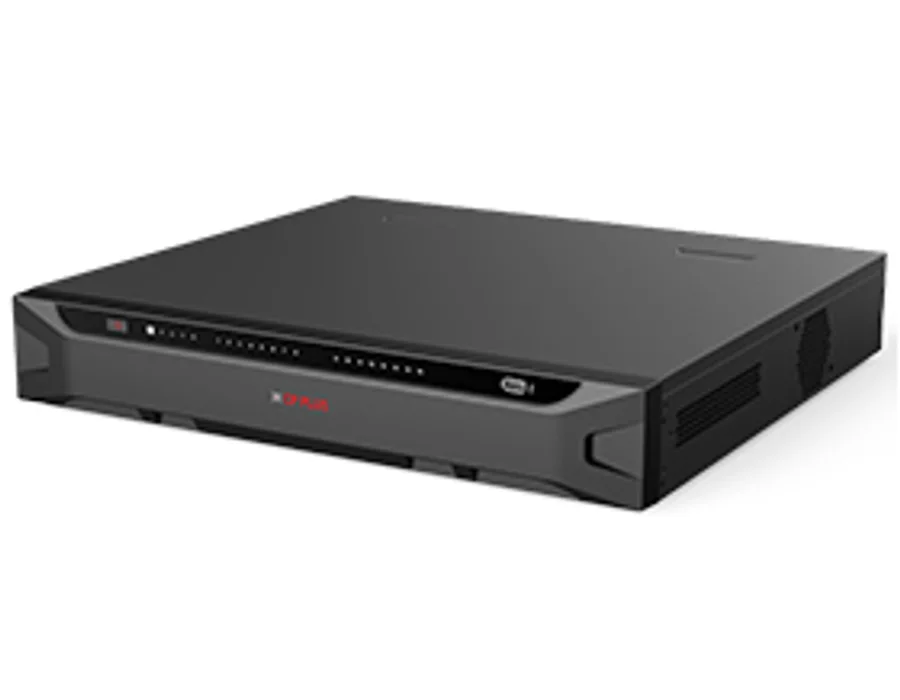

CP Plus CP-UVR-0804K4-I3-V3 – 8Ch. 5MP Digital Video Recorder

8Ch. 5MP Digital Video Recorder Features Supports HDCVI/AHD/TVI/CVBS/IP video inputs Max. 12 Channels IP camera inputs, Each channel up to 6MP, Max. 64 Mbps incoming bandwidth, 64 Mbps outgoing bandwidth, 64 recording bandwidth Supports all Channel AI Coding Support 4 SATA HDD up to 16TB Each, 3 USB Ports Up to 4 Channels video stream (analog channel) perimeter protection Up to 2 Channels video stream (analog channel) human face recognition Mobile Software: iCMOB, gCMOB Specifications Processor: Industrial-grade processor Operating System: Embedded Linux User Interface: Web, Local GUI Video Output: 1 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720; 1 HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 IP Camera Input: Up to 12 Channels of IPC access 4 IP Channels by default + 8 Channels (analog channels are converted to IP channels) Incoming bandwidth: 64 Mbps, Recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled. Analog Camera Input: 8 BNC ports, Supports HDCVI/AHD/TVI/CVBS autodetect HD Camera Input: 1. CVI: 5MP@20fps, 5MP@25fps, 5MP@10/12.5fps, 4MP@25/30fps, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps. 2. TVI: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps. 3. AHD: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps stream Capability: Dual stream Video Streaming: Main stream: 5MP Mode: 4-ch 5MP@(1-6fps); other channels 5M-N@ (1-12fps) 5M-N Mode: All channel 5M-N@(1–12fps);4M-N,1080p@(1–15fps); 1080N, 720p, 960H, D1,CIF@(1–25/30fps) Sub stream: D1, CIF@(1–15fps) Video Display Split: When IP extension mode not enabled: 1/4/8; When IP extension mode enabled: 1/4/8/9/16 Bit Rate: 32 kbps - 6144 kbps Video Compression: Instastream, H.265, H.264+, H.264 Hard Disk: 4 SATA ports, up to 16TB capacity for each disk. The maximum HDD capacity varies with environment temperature Face Database Capacity: Up to 10 face databases with 10,000 face images in total. Name, Gender, Birthday, Address, Certificate type, Certificate No., Countries & Regions and state can be added to each face image Backup Mode: USB device and network Interface Ports: 3 (1 front USB 2.0 port, 2 rear USB 2.0 ports), 1 RS485 Port (for PTZ control), 1 RS232 (1 port, for PC Communication & Keyboard) Protocols: HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, DDNS, Alarm Server, InstaOn, Auto Registration, ONVIF 22.12(Profile T, Profile S, Profile G), CGI, SDK Audio Compression: G.711a, G.711u, PCM, Audio Output: 1 Channel BNC Audio Input: 4 Channel BNC, 8 Channel BNC (Coaxial Audio) Ethernet: 1 (10/100 Mbps Ethernet port, RJ-45) Alarm Input: 6 Channels Alarm Output: 6 Channels (5 Channel relay output, 1 Channel 12 V 1 A output) Smart Phone: iOS, Android Browser: Chrome, IE9 or later, Firefox Power Supply: 100-240 VAC, 50/60 Hz Power Consumption: <10 W (without HDD) Operating Temperature: –20°C to +60°C (–4°F to +140°F) Operating Humidity: ≤95% (RH) Dimension: 440 mm × 420.2 mm × 76 mm

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
