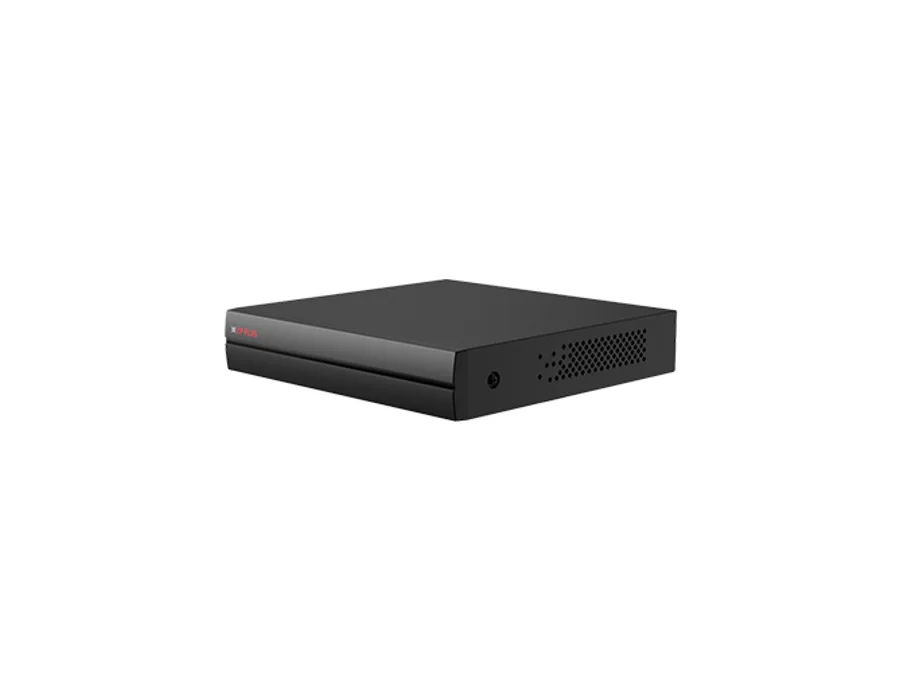

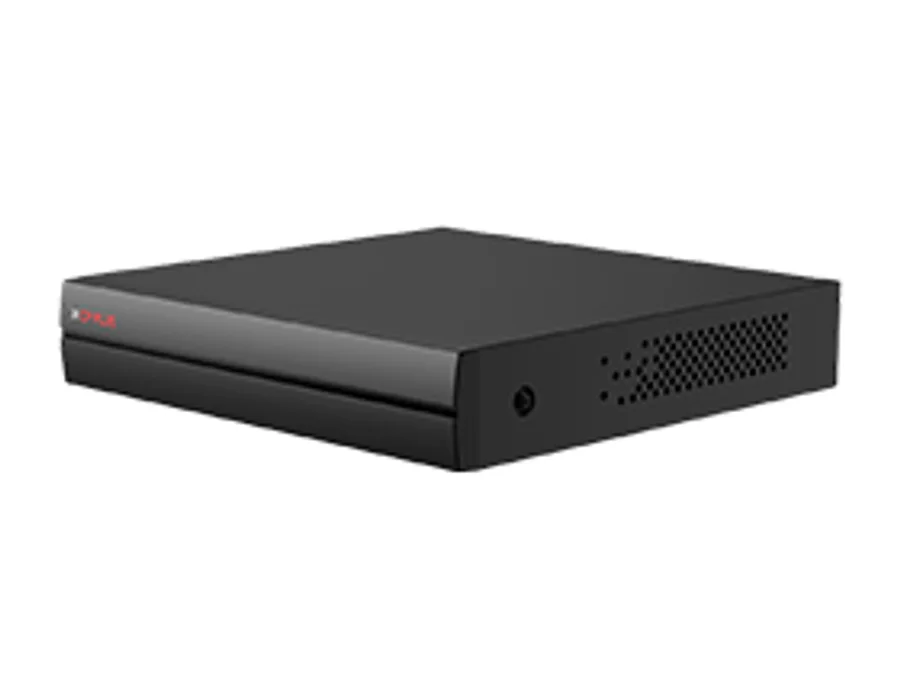

CP Plus CP-UVR-1601E1V-I – 16Ch. 1080N Digital Video Recorder

16Ch. 1080N Digital Video Recorder Features Supports HDCVI, AHD, TVI, CVBS and IP video input Supports up to 18 channels of IPC access, including 2 additional IP channels + 16 analog channels, with the option to convert all analog channels to IP The incoming bandwidth reaches 64 Mbps 16 Channels two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder 16 Channels IMD+ for analog channels or 18 Channels IMD by camera which allows the device to trigger accurate alarms for humans and vehicles 16 Channels AI Coding saves on storage and bandwidth while maintaining the details of targets in videos Instastream, H.265, H.264+, H.264 dual stream video compression Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite Specifications Processor: Industrial-grade processor User Interface: Web, Local GUI Operating System: Embedded LINUX IMD+ by DVR: 16 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change IMD By Camera: 18 Channels (2 IP Channels + 16 Analog Channels) Irregular Black Block Masking by DVR: 1 Channel Analog Camera Input: 16 BNC ports, supports HDCVI/AHD/TVI/CVBS autodetect Camera Input: 1. CVI: 1080p@25/30 fps; 720p@25/30 fps 2. TVI: 1080p@25/30 fps; 720p@25/30 fps 3. AHD: 1080p@25/30 fps; 720p@25/30 fps IP Camera Input: Up to 18 Channels of IPC access 2 IP Channel by default + 16 Channels (analog channels are converted to IP channels) Incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps stream Capability: Dual stream Video Frame Rate: Main stream: the 1st channel 1080N/720p@1 fps– 25/30 fps, others 1080N/720p@1 fps–15 fps; 960H/D1/CIF@1 fps–25/30 fps Sub stream: CIF@1 fps–7 fps Bit Rate: 32 kbps–4096 kbps Audio Sample Rate: 8 kHz, 16 bit Audio Bit Rate: 64 kbps Video Output: 1 HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 1 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Video Display Split: When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25 Video Compression: AI Coding, Instastream, H.265, H.264+, H.264 Audio Compression: G.711a, G.711u, PCM, AAC Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, InstaOn, Auto Connect, IP Search, ONVIF (Profile T, Profile S, Profile G), CGI, SDK Smart Phone: iOS, Android Browser: Chrome, IE, Safari, Edge, Firefox Record Mode: General, Alarm, Motion detection Recording Playback: 1/4/9/16 Backup Mode: USB device and network Playback Mode: Instant playback, General playback, Event playback, Tag playback, Smart playback General Alarm: Motion detection, HDCVI alarm, Camera external alarm, Network alarm, PIR alarm Abnormality Alarm: Error (No disk, Disk error, Low space, Low quota space, Network disconnection, IP conflict, MAC conflict), Video loss, Video tampering, Camera offline Intelligent Alarm: IMD+ Alarm Linkage: Record, Snapshot (panoramic), IPC external alarm output, Audio, Buzzer, Log, Preset, Email Audio Input: 1 Channel RCA 16-channel BNC (Coaxial Audio) Audio Output: 1 Channel RCA Two-way Talk: Coaxial two-way talk: 16-channel BNC Local and network user two-way talk: Shares the same audio input with the first channel Disk Interface: 1 SATA port, up to 16 TB. This limit varies depending on the environment temperature. Interface Ports: 2 USB (2 rear USB 2.0 ports) Ethernet: 1 (10/100 Mbps Ethernet port, RJ-45) Power Supply: 12 VDC, 2 A Power Consumption: <10 W (without HDD) Operating Temperature: –10°C to +45°C (+14°F to +113°F) Operating Humidity: 10%–90% (RH), non-condensing Storage Temperature: –20°C to +60°C (–4°F to +140°F) Dimensions: 260.0 mm × 231.6 mm × 47.6 mm Weight: 960g
