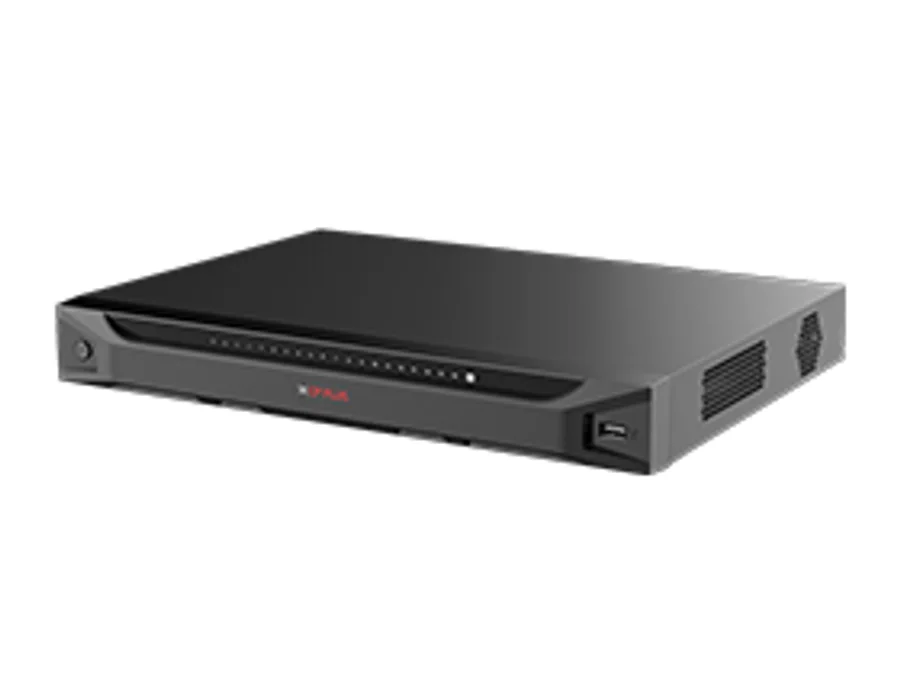

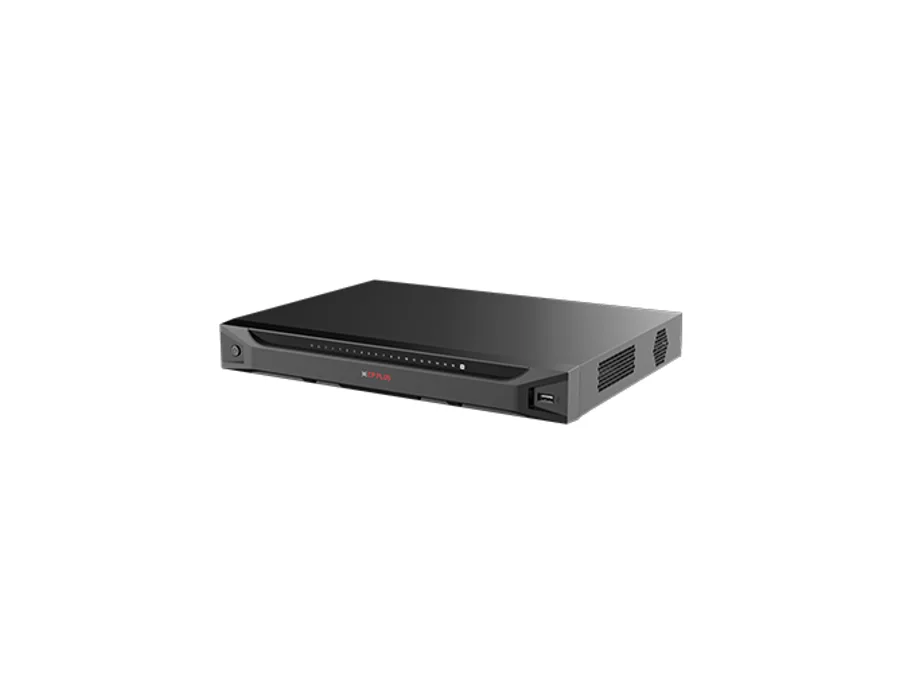

CP Plus CP-UVR-1601E2V-I – 16Ch. 1080N Digital Video Recorder

16Ch. 1080N Digital Video Recorder Features Supports HDCVI, AHD, TVI, CVBS and IP video input Supports up to 18 channels of IPC access, including 2 additional IP channels + 16 analog channels, with the option to convert all analog channels to IP Incoming bandwidth reaches 64 Mbps Instastream, H.265, H.264+, H.264, Dual stream video compression 16 Channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder 16 Channel IMD+ for analog channels or 18 Channel IMD by camera which allows the device to trigger accurate alarms for humans and vehicles Support 2 SATA HDD up to 16TB Each, 2 USB Ports, 1 HDMI, 1 VGA, 1 RS485 Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite Specifications Processor: Industrial-grade processor Operating System: Embedded Linux IP Camera Input: Up to 18 channels of IPC access 2 IP channel by default + 16 channels (analog channels are ; converted to IP channels) Incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and ; outgoing bandwidth: 64 Mbps Analog Camera Input: 16 BNC ports, supports HDCVI/AHD/TVI/CVBS autodetect Two-way Talk: Coaxial two-way talk: 16 Channel BNC Local and network user two-way talk: Shares the same ; audio input with the first channel User Interface: Web, Local GUI Video Output: 1 HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720; ; 1 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Camera Input: 1. CVI: 1080p@25/30 fps; 720p@25/30 fps. ; 2. TVI: 1080p@25/30 fps; 720p@25/30 fps. ; 3. AHD: 1080p@25/30 fps; 720p@25/30 fps. IMD By Camera: 18 Channels (2 IP Channels + 16 Analog Channels) Video Compression: Instastream, H.265, H.264+, H.264 Irregular Black Block Masking by DVR: 1 Channel Stream Capability: Dual stream Encoding Capacity: Main stream: 1st channel 1080N/720p@(1 fps– 25/30 fps), others 1080N/720p@(1 fps–15 ; fps); 960H/D1/CIF@(1 fps–25/30 fps) ; Sub stream: CIF@(1 fps–7 fps) Bit Rate: 32 kbps–4096 kbps IMD+ by DVR: 16 Channels: Secondary filtering for human and vehicle, Reducing false alarms caused by ; leaves, Rain and lighting condition change Audio Sample Rate: 8 kHz, 16 bit Disk Group: Support Hard Disk: 2 SATA ports. Each disk can contain up to 16 TB. this limit varies depending on the environ- ; ment temperature General Alarm: Motion detection, Alarm box, HDCVI alarm, Camera external alarm, Network alarm, PIR alarm Audio Bit Rate: 64 kbps Alarm Linkage: Record, Snapshot (panoramic), IPC external alarm output, Audio, Buzzer, Log, Preset, Email Recording Playback: 1/4/9 Recording Mode: General, Alarm, Motion detection Playback: Instant playback, General playback, Event playback, Tag playback, Smart playback Backup Mode: USB device and network Interface Ports: 2 USB (1 front USB 2.0 port, 1 rear USB 2.0 port), 1 HDMI, 1 VGA, 1 RS485 Ethernet: 1 (10/100 Mbps Ethernet port, RJ-45) Protocol: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, ; DDNS, SNMP, Alarm Server, InstaOn, Auto Connect, ONVIF (Profile T, Profile S, Profile G), CGI, ; SDK Abnormality Alarm: Error (No disk, Disk error, Low space, Low quota space, Network disconnection, IP conflict, ; MAC conflict), Video loss, Video tampering, Camera offline Video Display Split: When IP extension mode not enabled: 1/4/8/9/16 ; When IP extension mode enabled: 1/4/8/9/16/25 Audio Compression: G.711a, G.711u, PCM, AAC Audio Input: 1 Channel RCA ; 16 Channel BNC (Coaxial Audio) Smart Phone: iOS, Android Browser: Chrome, IE, Safari, Edge, Firefox Power Supply: 12 VDC, 4 A Power Consumption: <10 W (without HDD) Operating Temperature: –10°C to +55°C (+14°F to +131°F) Operating Humidity: 10%–90% (RH), non-condensing Dimensions: 375.0 mm × 289.6 mm × 53.0 mm Weight: 1610g
