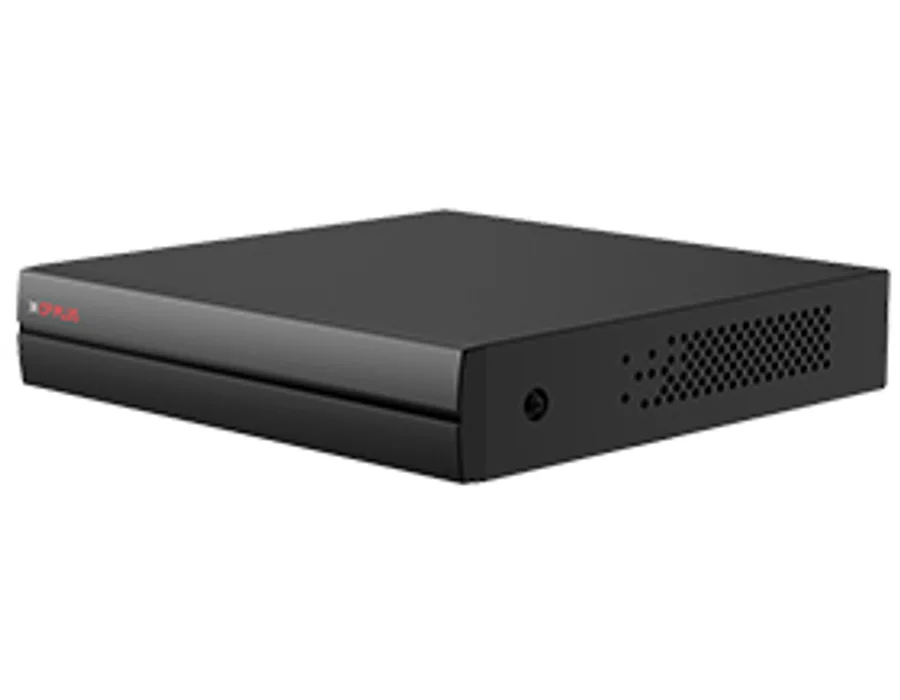

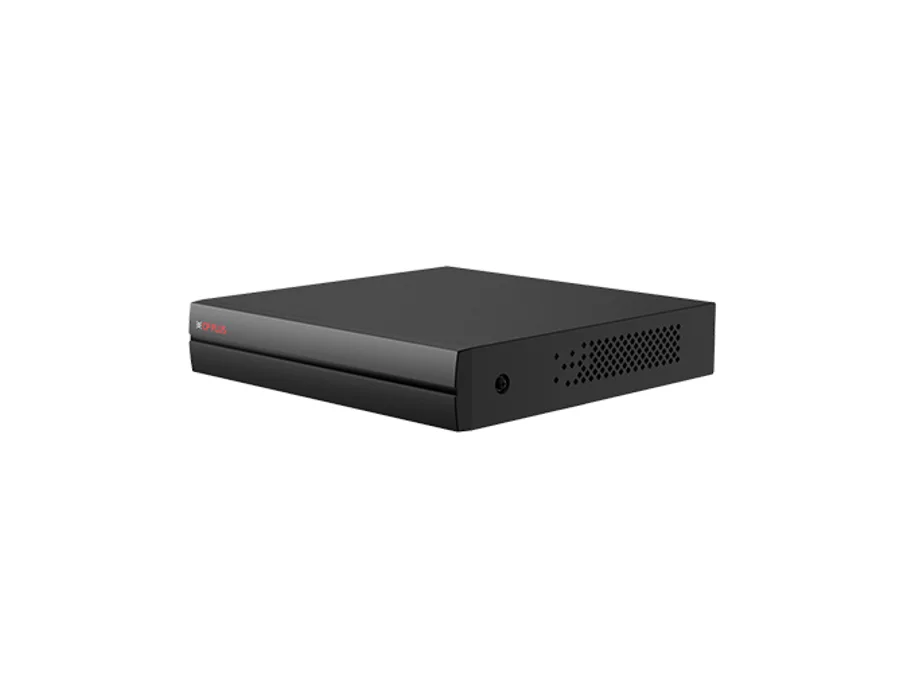

CP Plus CP-UVR-1601F1-IC – 16Ch. 5M-N Digital Video Recorder

16Ch. 5M-N Digital Video Recorder Features Supports HDCVI/AHD/TVI/CVBS/IP video inputs Max 24 channels IP camera inputs, each channel up to 6MP Supports Full-channel AI Instastream Instastream/H.265 dual-stream video compression Up to 16 channels video stream (analog channel) SMD Plus Support 1 SATA HDD up to 16TB Each, 2 USB Ports 1 HDMI / 1 VGA Simultaneous Video Output Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Specifications Processor: Embedded processor Operating System: Embedded LINUX IP Camera Input: 16+8 channels, each channel up to 6MP Two-way Talk: Reuse audio in/out, RCA User Interface: GUI Video Output: 1 HDMI, 1 VGA Video Resolution: VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 Video Compression: AI Instastream/Instastream/H.265/H.264+/H.264 Video Recording: Main stream: All channel 5M-N (1 fps–10fps); 4M-N/1080p (1 fps–15fps); 1080N/720p/960H D1/CIF (1 fps–25/30fps) Sub Stream: D1/CIF (1 fps–15fps) Video Display Split: 1/4/8/9/16 Resolution: 4M-N; 1080P; 1080N; 720P; 960H; D1; CIF Bit Rate: 32 kbps–6144 kbps per channel Video Channel: 16 channel, BNC Audio Compression: G.711A, G.711U, PCM Audio Input: 1 Ch., RCA (external) ; 16 Ch., BNC (coaxial) Audio Output: 1 channel, RCA Motion Detection: Support Video Loss: Support Smart Phone: iPhone, iPad, Android Phone Hard Disk: 1 SATA port, up to 16TB Each Camera Blank: Support Search Mode: Time/Date, MD & Exact search (accurate to second) Backup Mode: USB Device/Network Playback: Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom Max User Account: 128 users Record Interval: 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec Ethernet: 1 RJ-45 port (10/100/1000MB) Interface Ports: 2 USB Ports (USB 2.0) Protocols: TTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; InstaOn; IP Search, ONVIF 16.12, CGI Conformant Power Supply: DC12V/2A Power Consumption: <12W (without HDD) Working Temp: -10°C ~ +45°C (+14°F ~ +113°F), 0 ~ 90% RH Dimension: 260.0 mm × 231.4 mm × 47.6 mm (W × D × H) Weight: 0.93 kg (without HDD)

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
