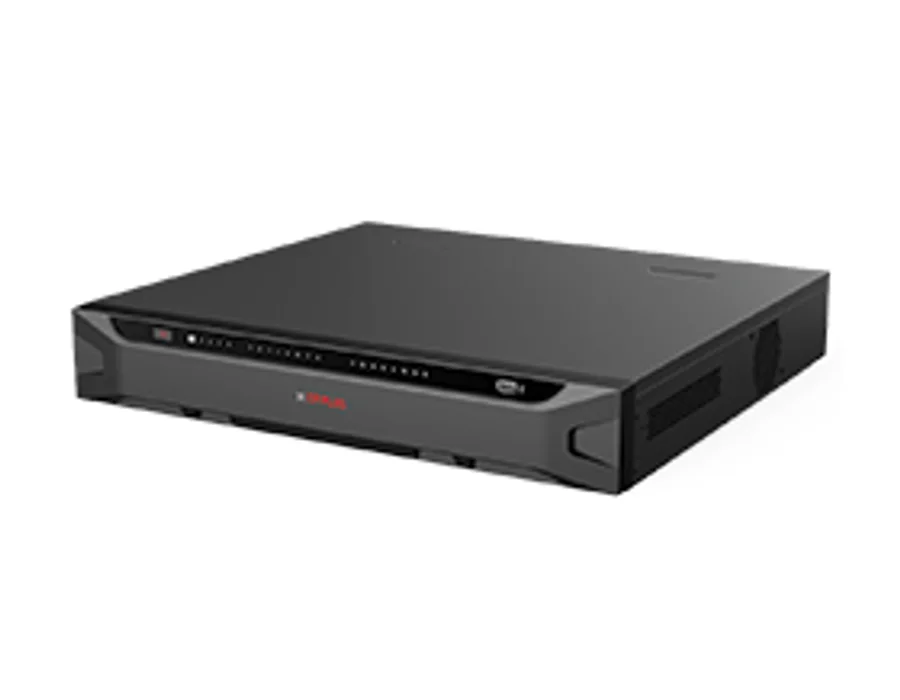

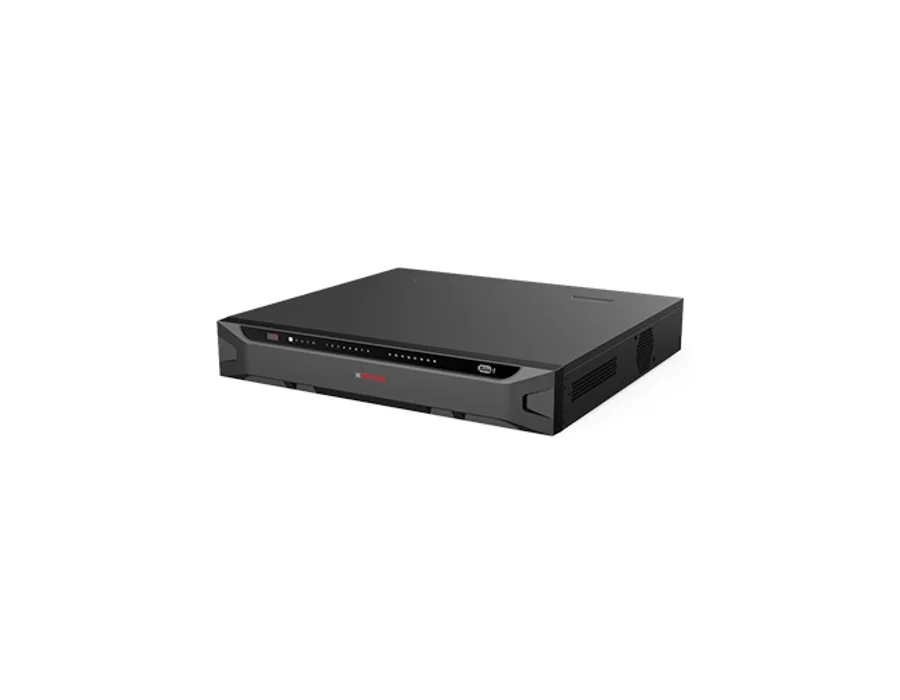

CP Plus CP-UVR-1604K4-I3 – 16Ch. 5M-N Digital Video Recorder

16Ch. 5M-N Digital Video Recorder Features Supports HDCVI/AHD/TVI/CVBS/IP video inputs. Supports up to 24 channels of IPC access, including 8 additional IP channels + 16 analog channels, with the option to convert all analog channels to IP Instastream, H.265, H.264+, H.264, Dual stream video compression. Support 4 SATA HDDs up to 16TB Each, 3 USB Ports, 1 HDMI, 1 VGA, 1 RS232, 1 RS485. 16 Channel IMD+ for analog channels or 24 Channel IMD by camera which allows the device to trigger accurate alarms for humans and vehicles. 4 Channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI. 2 Channel face recognition for analog channels which supports face comparison. Mobile Software: iCMOB, gCMOB Specifications Processor: Industrial-grade processor Operating System: Embedded Linux User Interface: Web, Local GUI IntelliSearch 2.0 AI by DVR (Number of Channels): 2 Channels Perimeter Performance AI by DVR (Number of Channels): Advanced Mode: 2 channels, 10 IVS rules for each Channel General Mode: 4 channels, 10 IVS rules for each Channel Face Attributes: Gender, Age group, Glasses, Expressions, Face mask, Face Detection Performance of AI by DVR (Number of Channels): 2 Channels (up to 12 face images/s each channel) Face Database Capacity: Up to 10 face databases with 10,000 images IMD+ by DVR: 16 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change IMD+ by Camera: 24 Channels (8 IP Channels + 16 Analog Channels) AI Video Quality Analytics by DVR: 16 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white Scene Changing by DVR: 1 Channel Camera Input: 1. CVI: 5MP@25 fps, 5MP@20 fps, 5MP@10/12.5 fps, 4MP@25/30 fps, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30fps 2. TVI: 5MP(2560 x 1944)@20 fps, 5MP(2960 x 1665)@20 fps, 4MP@25/30 fps, 1080p@25/30 fps, 720p@25/30 fps 3. AHD: 5MP@20 fps, 4MP@25/30 fps, 1080p@25/30 fps, 720p@25/30 fps IP Camera Input: Up to 24 channels of IPC access 8 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, IMD, Perimeter Protection and IntelliSearch 2.0 cannot be used. Video Streaming: Main stream: 5MP Mode: 4 Channels 5MP@(1 fps-6 fps), others 5M-N@(1 fps-12 fps) 5M-N Mode: 5M-N@(1 fps –12 fps), 4M-N/1080p@(1 fps–15 fps), 1080N/720p/960H/D1/ CIF@(1 fps–25/30 fps) Sub stream: D1/CIF@(1 fps–15 fps) Stream Capability: Dual stream Bit Rate: 32 kbps–6144 kbps Audio Sample Rate: 8 kHz, 16 bit Audio Bit Rate: 64 Kbps Video Output: 2 HDMI, 1 VGA HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720 It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face, IVS & IMD or IntelliSearch is selected in AI Mode. *Heterogeneous video sources output for HDMI2 is configurable. Video Display Split: When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16/25 Video Compression: Instastream, H.265, H.264+, H.264 Audio Compression: G.711a, G.711u, PCM Protocols: HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, InstaOn, Auto Connect, IP Search, ONVIF (Profile T, Profile S, Profile G), CGI, SDK Smart Phone: iOS, Android Browser: Chrome, IE, Safari, Edge, Firefox Network Mode: Multi-address mode, Fault Tolerance, Load Balance Record Mode: General, Motion detection, Intelligent, Alarm, POS Recording Playback: 1/4/9 It changes to 1/4/9 split when Face or IVS & IMD is selected in AI Mode Backup Mode: USB Device/Network Playback Mode: Instant playback, General playback, Event playback, Tag playback, Smart playback Alarm Linkage: Record, Snapshot (panoramic), Local alarm output, IPC external alarm output, Audio, Buzzer, Log, Preset, Email CVBS Output: 1 Channel Audio Input: 4 Channels BNC 16 Channels BNC (Coaxial Audio) Alarm Input: 16 Channels Hard Disk: 4 SATA ports. Each disk can contain up to 16 TB. This limit varies depending on the environment temperature. Interface Ports: 3 (1 front USB 2.0 port, 2 rear USB 3.0 ports), 1 RS485 Port, 1 RS232, 1 eSATA Port Ethernet: 2 (10/100/1000 Mbps Ethernet port, RJ-45) Power Supply: 100–240 VAC, 50±2% Hz Power Consumption: <15 W (without HDD) Operating Temperature: -10°C ~ +55°C (14°F ~ +131°F) Operating Humidity: 10%–90% (RH), non-condensing Storage Temperature: -10°C ~ +55°C (14°F ~ +131°F) Dimension: 440.0 mm × 420.2 mm × 76.0 mm Weight: 4450g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
