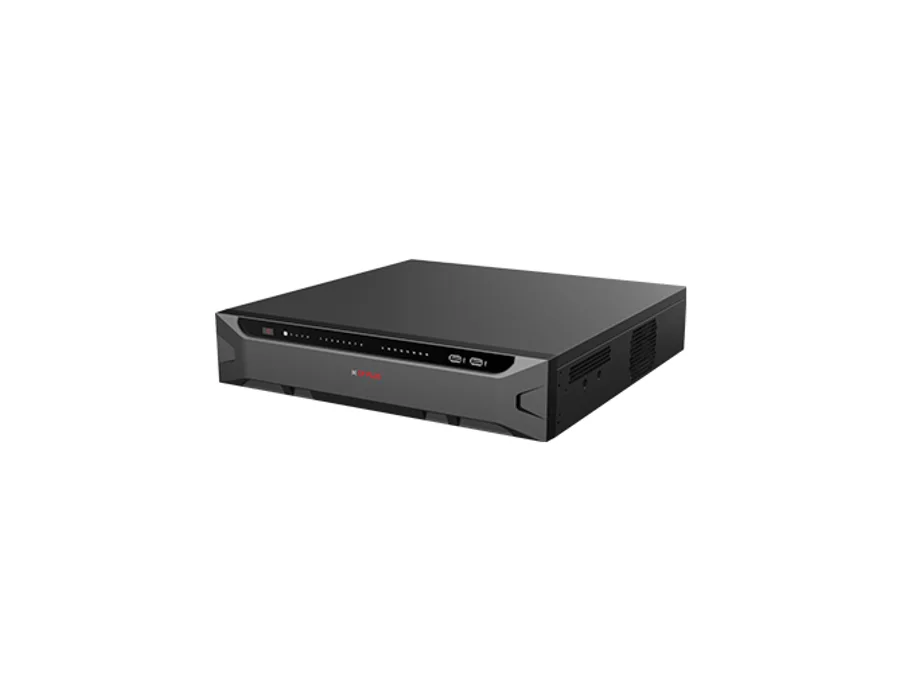

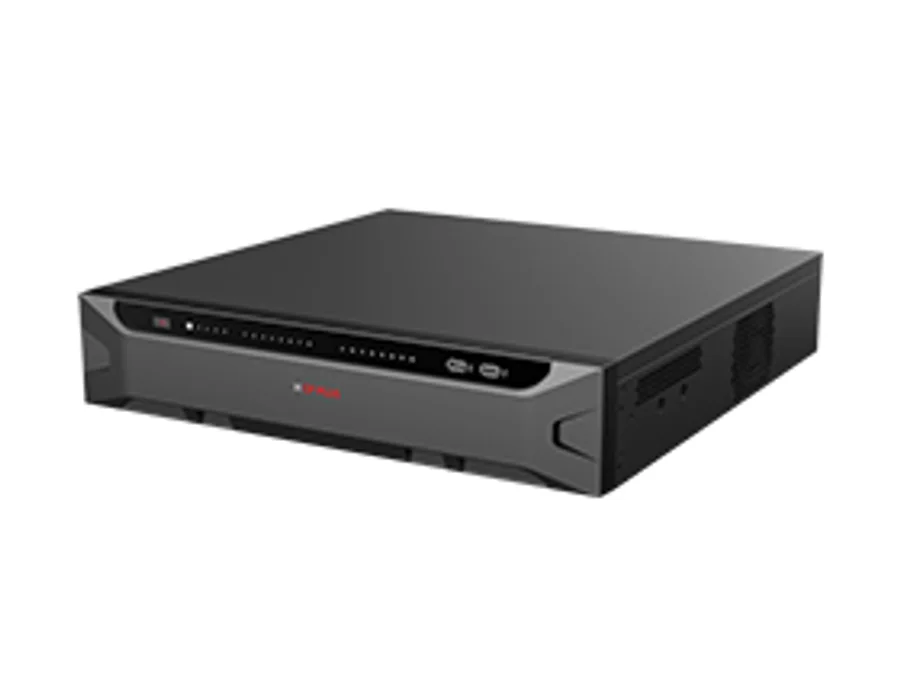

CP Plus CP-UVR-1616K8-I3 – 16 Ch. 5M-N Digital Video Recorder

16 Ch. 5M-N Digital Video Recorder Features Supports HDCVI, AHD, TVI, CVBS and IP video input AI Instastream, Instastream, H.265, H.264+, H.264 video compression 24 Channel IP camera input and each channel can be up to 8 MP, 128 Mbps incoming bandwidth 4 Channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI 16 Channel IMD+ for analog channels or 24 Channel IMD by camera which allows the device to trigger accurate alarms for humans and vehicles Support 8 SATA HDDs up to 20TB Each, 4 USB Ports, 1 RS232, 1 RS485, 1 eSATA 2 HDMI / 1 VGA Heterogeneous video output Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite Specifications Processor: Industrial-grade processor Operating System: Embedded LINUX Operating Interface: Web, Local GUI Intellisearch 2.0 AI by DVR: 2 Channels Perimeter Performance AI by DVR: Advanced Mode: 2 channels, 10 IVS rules for each channel ; General Mode: 4 channels, 10 IVS rules for each Channel Face Attributes: Gender, Age group, Glasses, Expressions, Face mask, Beard Face Detection Performance AI by DVR: 2 Channels (up to 12 face images/s each channel) Face Database Capacity: Up to 10 face databases with 10,000 images Face Recognition Performance AI by DVR: 2 Channels IMD+ by DVR: 16 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change IMD By Camera: 24 Channels AI Video Quality Analytics by DVR: 16 channels: Supports detecting brightness levels, Color cast, Defocus, Overexposure, Contrast levels, Black and white Scene Changing by DVR: 1 Channel Irregular Black Block Masking by DVR: 1 Channel Analog Camera Input: 16 BNC ports, Supports HDCVI/AHD/TVI/CVBS autodetect Camera Input: 1. CVI: 5MP @25fps, 5MP @20fps, 5MP @10/12.5fps, 4MP @25/30fps, 1080p @25/30fps, 720p @50/60fps, 720p @25/30fps 2. TVI: 5MP(2560 x 1944)@20fps, 5MP(2960 x 1665)@20fps, 4MP @25/30fps, 1080p @25/30fps, 720p @25/30fps 3. AHD: 5MP @20fps, 4MP @25/30fps, 1080p @25/30fps, 720p @25/30fps. IP Camera Input: Up to 24 channels of IPC access (8 IP Channels + 16 Analog Channels) Incoming bandwidth: 128 Mbps, Recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, IMD, Perimeter Protection and Intellisearch 2.0 cannot be used. Stream Capability: Dual stream Encoding Capacity: Main stream: 5MP Mode: 4 Channel 5MP@1fps-6fps, others 5M-N@1fps-12fps 5M-N Mode: 5M-N@1fps–12fps, 4M-N/ 1080p@1fps–15fps, 1080N/ 720p/ 960H/ D1/CIF @1fps–25/30fps Sub stream: D1/ CIF@1fps–15fps Bit Rate: 32 kbps–6144 kbps Audio Sample Rate: 8 kHz, 16 bit Audio Bit Rate: 64 Kbps Video Output: 2 HDMI, 1 VGA, 1 CVBS HDMI 1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA/HDMI 2: 1920 × 1080, 1280 × 1024, 1280 × 720 It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face, IVS & IMD or Intellisearch is selected in AI Mode. *Heterogeneous video sources output for HDMI2 is configurable. Video Display Split: When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25 Video Compression: AI Instastream, Instastream, H.265, H.264+, H.264 Audio Compression: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, InstaOn, Auto Connect, ONVIF (Profile T, Profile S, Profile G), CGI, SDK Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, InstaOn, Auto Connect, ONVIF (Profile T, Profile S, Profile G), CGI, SDK Smart Phone: iOS, Android Browser: Chrome, IE, Safari, Edge, Firefox Network Mode: Multi-address mode, Fault tolerance, Load balance Record Mode: General, Alarm, Motion detection, Intelligent, POS Recording Playback: 1/4/9/16 It changes to 1/4/9 split when Face or IVS & IMD is selected in AI Mode. Backup Mode: USB device and network Playback Mode: Instant playback, General playback, Event playback, Tag playback, Smart playback Disk Group: Support General Alarm: Motion detection, Local alarm, Alarm box, HDCVI alarm, Camera external alarm, Network alarm, PIR alarm Abnormality Alarm: Error (No disk, Disk error, Low space, Low quota space, Network disconnection, IP conflict, MAC conflict), Video loss, Video tampering, Camera offline Intelligent Alarm: Face detection, Face recognition, Perimeter protection, IMD+ Alarm Linkage: Record, Snapshot (panoramic), Local alarm output, IPC external alarm output, Audio, Buzzer, Log, Preset, Email CVBS Output: 1 Channel Audio Input: 16 Channels BNC 16 Channels BNC (Coaxial Audio) Audio Output: 1 Channel BNC Two-way Talk: 1 Channel BNC Alarm Input: 16 Channels Alarm Output: 6 Channels Disk Interface: 8 SATA ports. Each disk can contain up to 16TB. This limit varies depending on the environment temperature. Interface Ports: 4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports), 1 RS232, 1 eSATA Port, 1 RS485 Power Supply: 100–240 VAC, 50±2% Hz Ethernet: 2 (10/100/1000 Mbps Ethernet port, RJ-45) Power Consumption: <15 W (without HDD) Operating Temperature: –10°C to +55°C (+14°F to +131°F) Operating Humidity: 10%–90% (RH), non-condensing Storage Temperature: –20°C to +60°C (–4°F to +140°F) Dimensions: 440.0mm x 463.0mm x 94.9mm Weight: 6720g
