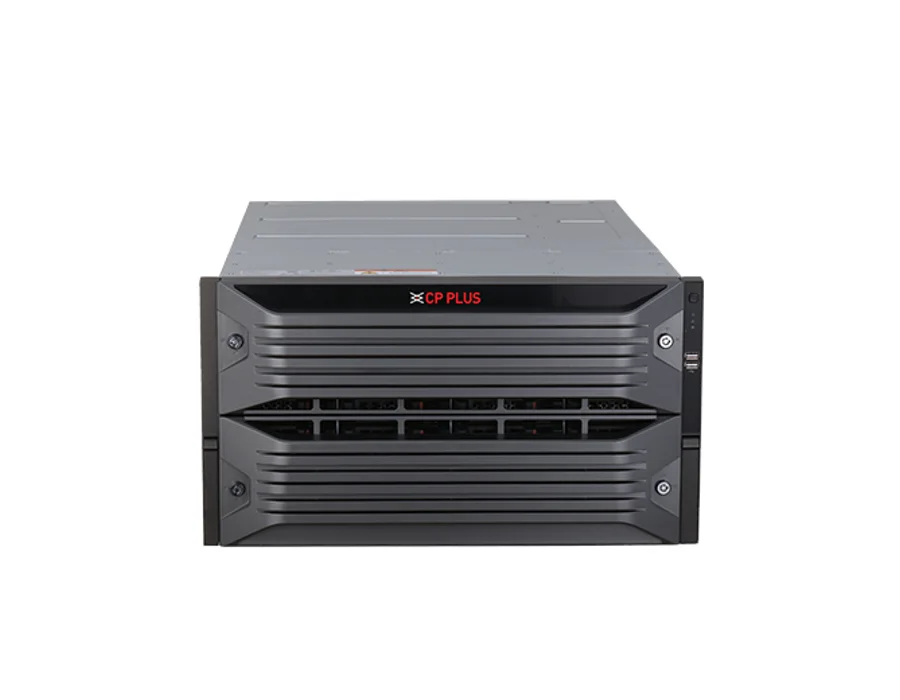

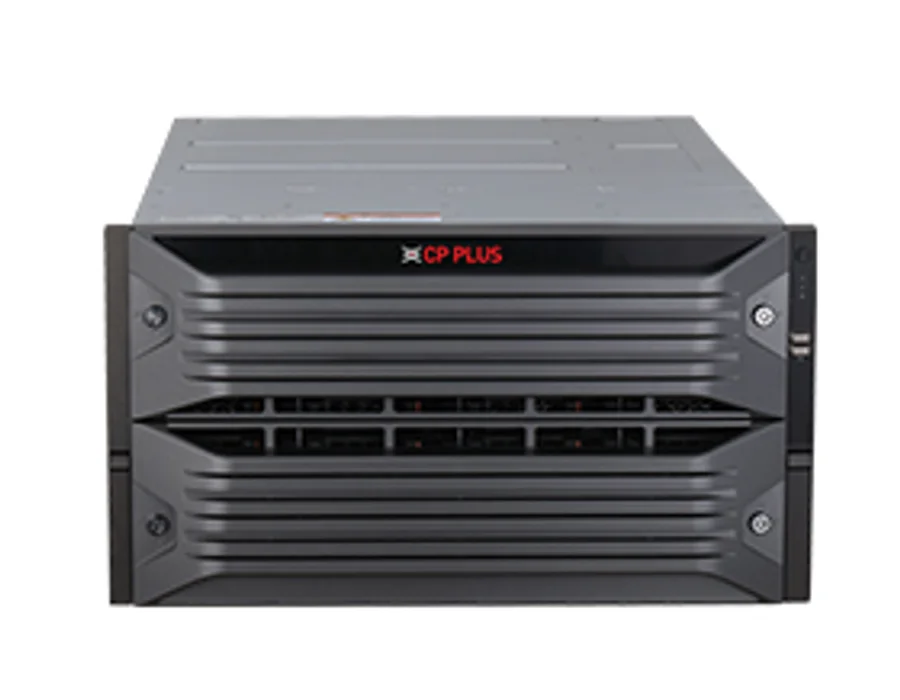

CP Plus CP-UVS-6487R-V2 – 48-HDD Embedded Video Storage

48-HDD Embedded Video Storage Features Max 320-ch IP camera inputs. 48 bays, SATA, Hot-Swap. Max 800 Mbps incoming/recording/forwarding bandwidth. Supports video stream direct storage mode and IPSAN storage mode. Supports N+M cluster. Supports RAID 0/1/5/6/10/50/60,Hot spare. Supports Automatic Network Replenishment (ANR). 1+1 redundant 80PLUS platinum power supply Specifications Processor: 64-bit high-performance multi-core processor Operating System: Embedded Linux OS IP Camera Input: 320 Channel User Interface: Web (PCAPP) Network Mode: NIC binding mode such as multiple-address mode, load balance, fault-tolerance, link aggregation, etc N+M Cluster: N+M (Support) Record Mode: Auto record; manual record; search video detection; IO alarm; thermal imaging; intelligent event; all record file Video Compression: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG Audio Compression: G.711A; G.711U; PCM; G726 Disk Interface: 48 Slots, SATA, Max.18 T/HDD hot swapping CMR support enterprise-grade HDD Disk Group: Support General Alarm: Motion detect; tampering; IPC external alarm Anomaly Alarm: IPC offline alarm; storage error; HDD full; video frame loss; SSD exception; IP conflict; MAC conflict; login lock; fan malfunction; no HDD; network security exception; power exception; disk health exception; RAID exception; storage pool exception; temperature alarm; share service Alarm Linkage: Record; snapshot (full image); alarm uploading; remote device alarm output; camera audio; buzzer; log; preset; email, smart tracking and warning light. Disarming alarm linkage action by period or one-click sync disarm config with channels Record Management: Supports record control (continuous, event-based, scheduled, scheduled & event-based) Storage Pool: Support iSCSI: Supports client and Server Network Disk: Supports client Browser: Chrome; PCAPP; IE9 or higher; Firefox Playback Function: 1. Play, pause, stop, fast forward, fast backward, reverse play, frame by frame 2. Full-screen, backup (clip; file), snapshot, digital zoom, audio on/of Multi-channel Playback: Max. 16-channel playback AI by Camera: Face detection, face recognition, IVS (abandoned object, missing object, loitering, crowd gathering, parking, fence-crossing, fast moving, tripwire and intrusion), video metadata (human, vehicle, non-motor vehicle), vehicle recognition, people counting (fisheye or people counting camera required),face & body detection, crowd distribution, smart thermal (call detection, visible channel- smoking detection, thermal channel-smoking detection) RAID: RAID 0/1/5/6/10/50/60; (with enterprise-grade HDD) Video Direct Storage (Private Protocol): Incoming: 320-channel (bandwidth: 800 Mbps), Recording: 320-channel (bandwidth: 800 Mbps), Outgoing: 320-channel (bandwidth: 800 Mbps), Playback: 32-channel (bandwidth: 64 Mbps) Video Direct Storage (Onvif): Incoming: 320-channel (bandwidth: 800 Mbps), Recording: 320-channel (bandwidth: 800 Mbps), Outgoing: 320-channel (bandwidth: 800 Mbps), Playback: 32-channel (bandwidth: 64 Mbps) Video Direct Storage (Auto Connect): Incoming: 320-channel (bandwidth: 800 Mbps), Recording: 320-channel (bandwidth: 800 Mbps), Outgoing: 320-channel (bandwidth: 800 Mbps), Playback: 32-channel (bandwidth: 64 Mbps) Picture Direct Storage: 280-channel × 2 Mbps video stream writing and 24-channel × 2 Mbps video playback( I/O size of VMS is 64 KB) 400-channel × 2 Mbps video stream writing and 24-channel × 2 Mbps video playback(I/O size of VMS is 512 KB) IPSAN Performance: 280-channel × 2 Mbps video stream writing and 24-channel × 2 Mbps video playback( I/O size of VMS is 64 KB) 400-channel × 2 Mbps video stream writing and 24-channel × 2 Mbps video playback(I/O size of VMS is 512 KB) Backup Mode: HDD, peripheral USB storage device Interface Ports: 1 eSATA Port, 1 RS-232 port, for debug or COM data transmission, 4 ports. 2 USB2.0 ports at the front panel and 2 USB3.0 ports at the rear panel , 1 HDMI Port, only for debug Ethernet: 4 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports. (gigabit electrica port) 1 RJ-45 10/100 Mbps self-adaptive Ethernet ports. (100 Mbps electrical port) Protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; InstaOn; iSCSI; FTP ; SMB ; NFS, ONVIF (Profile S, T and G); CGI; SDK Operating Altitude: 5000 m (16404.20 ft) Controller: Single controller Cache: 8 GB by default (extendable to 64 GB) Network Port Extension: 4 × 1-GbE LAN ports (optional), 2 × 10-GbE optical fiber ports (optional) Storage Method: Internal HDD and network disk PTZ Smart Track: Works with camera for manual tracking, auto tracking, click positioning and select positioning Thermal: Works with camera for fire alarm, temperature alarm, temperature difference alarm, hot spot, cold spot, smoking and calling Fisheye Dewarp: Supports dewarping for fisheye cameras People Counting: Works with camera for tripwire people counting, regional people counting and queue people counting Power Redundancy: 1+1 redundant power Fan: Intelligent speed regulation fan Operating Temperature: 0 °C to 45 °C (+32 °F to +113 °F) Operating Humidity: 10%–80% (RH), non-condensing Power Supply: 100-240 VAC 50-60 Hz Power Consumption: <100 W (without HDD, idling) <500 W (all HDDs connected) Dimension: Chassis: 446 mm × 261.4 mm × 736.5 mm (17.56 Weight: 35.2 kg (77.60 lb)

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
