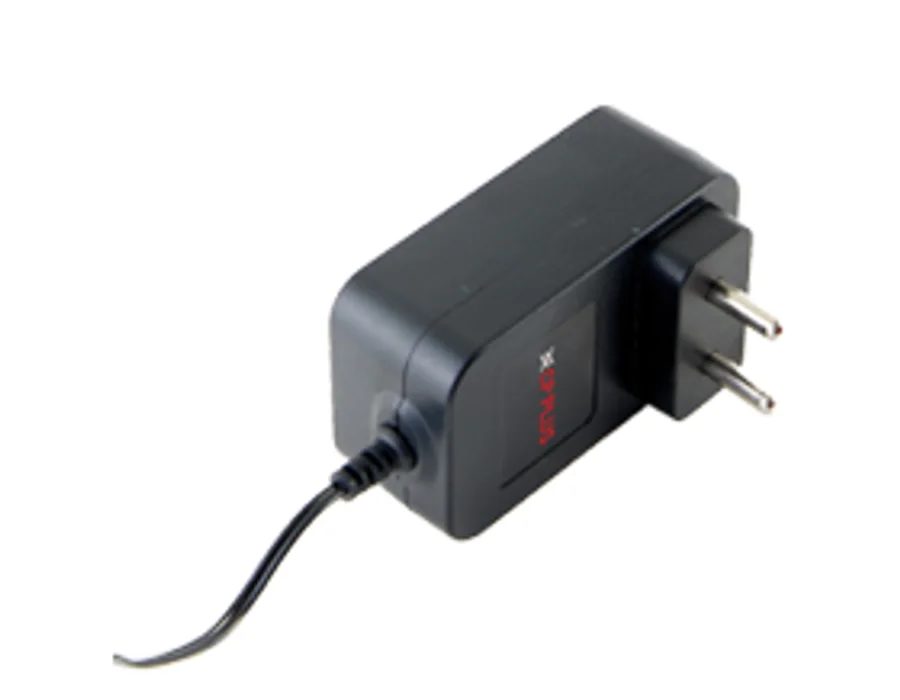

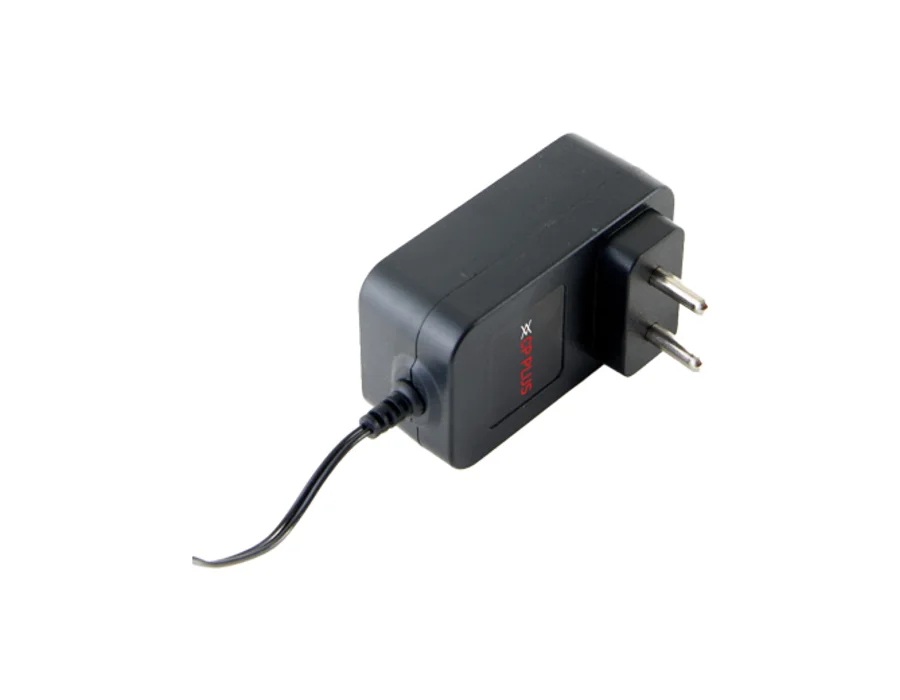

CP Plus CP-YPS-PA24B-12DT – 12V 2Amp-2 Pin Power Adapter

12V 2Amp-2 Pin Power Adapter Features Wide 110–265VAC input with stable 12V/2A, 24W output. Low ripple performance ensuring clean and reliable power delivery. Built-in OCP, 2kV Hi-Pot isolation & surge protection ±5% line and load regulation for consistent output stability. High operational efficiency up to 75% for energy-optimized performance. Specifications Output: Voltage: 12VDC, Range: 11.40 -12.60V, Min. Load: 0.1A, Rated Load: 2A, Output Power: 24W Input Voltage Range: 110-265VAC Rated Frequency: 50/60Hz Variation Frequency : 47 – 63Hz Rated Input Voltage: 140-240VAC Input Current: 0.75A Max. Combined Load/ Line Regulation: Voltage: 12VDC, Min. Load: 0.1A, Rated Load: 2A, Line Regulation: ± 5%, Load Regulation: ± 5% Ripple and Noise: 250mVp-p; Under normal voltage & nominal load Turn on Delay Time: 3S Max. @ 115V AC input and output Max. Load Rise Time: 100mS Max. @ 115V AC input and output Max. Load Hold Up Time: 8mS Min. @ 115V AC input and output Max. Load Fall Time: 50mS @ Max. Load Surge Immunity: 2kV L-N Hi-Pot Test: 2kV@ 10mA Output voltage: 11.4V – 12.6V No Load Power Consumption: <0.3W OCP Power: 2.2A min @ 230VAC Efficiency: Average efficiency 75% minimum @ 25%, 50%, 75% & 100% of full-loading and 230V AC input (After warm up 30 minutes) Certificates: ISO 9001: 2015, ISO 20000-1: 2018, ISO 14001: 2015, ISO 45001: 2018, ISO 50001: 2018, CE, FCC and RoHS, BIS Overshoot: 10% Max. When power supply @ turns on or turn off Operating Temperature: 0°C to 40°C (Full load, Normal Operation) Storage Temperature: -40°C to 70°C
