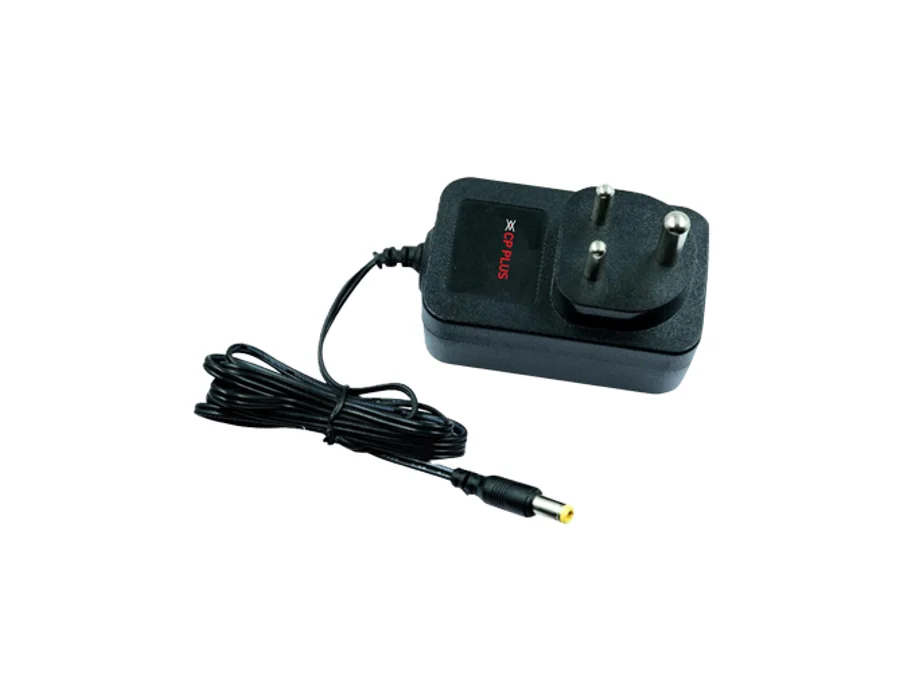

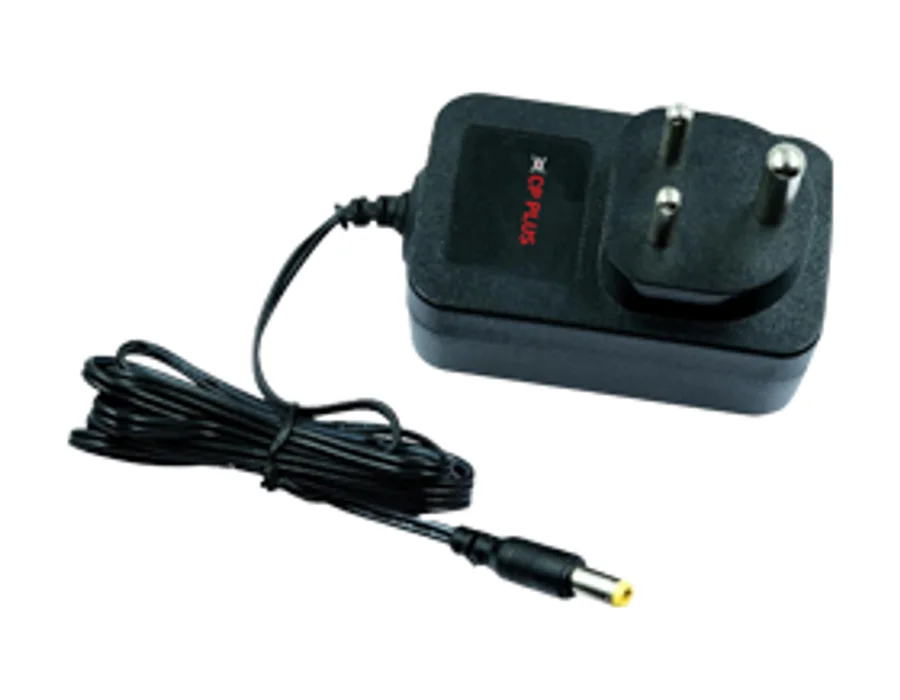

CP Plus CP-YPS-PA36B-12DN – 12V 3Amp-3 Pin Power Adapter

12V 3Amp-3 Pin Power Adapter Features Wide 100-285VAC input with stable 12V/3A, 36W output. Low ripple performance ensuring clean and reliable power delivery. Built-in OCP, 3kV Hi-Pot isolation and surge protection ±5 line and load regulation for consistent output stability. High operational efficiency up to 77 for energy-optimized performance Specifications Output: Voltage: 12VDC, Min. Load: 0.1A, Rated Load: 3A, Output Power: 36W Input Voltage Range: 100-285V AC Rated Frequency: 50/60Hz Variation Frequency : 47 – 63Hz Rated Input Voltage: 140-240V AC Input Current: 0.8A Max.@ Any input AC voltage & output full load Combined Load/ Line Regulation: Voltage: 12VDC, Min. Load: 0.1A, Rated Load: 3A, Line Regulation: ± 5%, Load Regulation: ±5% Turn on Delay Time: 3S Max. @ 115V AC input and output Max. Load Hold Up Time: 10mS Min. @ 115V AC input and output Max. Load Fall Time: 50mS @ Max. Load Surge Immunity: 2kV L-N Hi-Pot Test: 3kV@ 10mA Output voltage: 11.4V-12.6V No Load Power Consumption: <0.3W OCP Power: 3.6A min @ 230VAC Certificates: ISO 9001: 2015, ISO 20000-1: 2018, ISO 14001: 2015, ISO 45001: 2018, ISO 50001: 2018, CE, FCC and RoHS, BIS Overshoot: 10% Max. When power supply @ turns on or turn off Operating Temperature: 0°C to 40°C (Full load, Normal Operation) Storage Temperature: -40°C to 85°C

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
