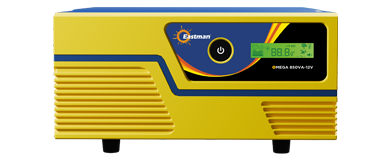

Eastman OMEGA 850VA-12V Inverter
Not sure which inverter or battery you need? Plan your backup →SKU: EASTMAN-OMEGA-850VA-12V · Model: OMEGA 850VA-12V
Price on request
- 850 VA
- Pure Sine Wave
Contact our team for price, battery options and availability.
Enter your PIN code to find delivery options and a nearby store.
Overview
Explore the Eastman OMEGA 850VA-12V home UPS inverter from the Omega range. Review the manufacturer specifications below and ask Sysmantech for a quotation and suitable battery options.
Specifications and photography: Eastman Electronics ↗
Full specifications
| Series | Omega |
|---|---|
| Technology | MICRO CONTROLLER BASED DESIGN |
| Rated capacity | 850 VA |
| Charger topology | CC,CV |
| Product Warranty | 3 years |
| UPS Transfer Time | <=15msec |
| Auto Reset Feature | YES |
| Transformer Warranty | 10 years |
| Operating Temperature | 0°C TO +45°C |
| UNIT Dimension (L*W*H) | 290*245*159 |
| Input Voltage (Wide Mode) | 90V-300V ± 10V |
| Mains Mode Input frequency | 50HZ ± 3 HZ |
| Input Voltage (Narrow Mode) | 180V-260V ± 10V |
| Output waveform on UPS mode | Pure Sine Wave |
| Output voltage on Mains Mode | Same as input voltage |
| Output voltage on Backup Mode | 210V + 10%, -15% |
| Battery Charging Current (STD) | 11A |
| UPS overload/UPS Short Circuit | 110%/300% |
| Battery Charging Current (HIGH) | 13A |
| Output frequency on Backup Mode | 50HZ ± 0.1HZ |
| UNIT Dimension (L*W*H) With Packing | 356*323*214 |
| Switching from Mains to Backup and from Backup to Mains | AUTOMMATIC |
What’s in the box
Confirm battery inclusion, cables and supplied accessories with our team before purchase.
Warranty
3 years product warranty; 10 years transformer warranty. Manufacturer terms apply.
