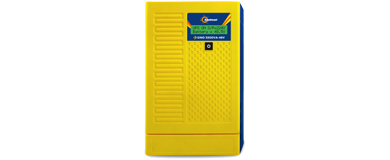

Eastman Sino-5500VA Inverter
Not sure which inverter or battery you need? Plan your backup →SKU: EASTMAN-SINO-5500VA · Model: Sino-5500VA
Price on request
- 5500 VA
- Pure sine wave
Contact our team for price, battery options and availability.
Enter your PIN code to find delivery options and a nearby store.
Overview
Explore the Eastman Sino-5500VA home UPS inverter from the Sino range. Review the manufacturer specifications below and ask Sysmantech for a quotation and suitable battery options.
Specifications and photography: Eastman Electronics ↗
Full specifications
| Series | Sino |
|---|---|
| Technology | Micro Controller Based Design |
| Rated capacity | 5500 VA |
| Charger topology | Boost Based PWM Control Multi-Stage Technology with GPM |
| UPS Transfer Time | <=15msec |
| Auto Reset Feature | Yes |
| Operating Temperature | -10°C to +45°C |
| Battery Charging Current | Constant charging approx 10% of the rated battery current in AH |
| Input Voltage (Wide Mode) | 120V-275V±10V |
| Size of product (LxWxH)mm | 437X260X441 MM |
| Mains Mode Input frequency | Same as mains |
| Input Voltage (Narrow Mode) | 180V-260V±10V |
| Output waveform on UPS mode | Pure sine wave |
| Output voltage on Mains Mode | Same as input voltage |
| Output voltage on Backup Mode | 220V ± 15% |
| UPS overload/UPS Short Circuit | 110%/300% |
| Output frequency on Backup Mode | 50Hz ± 0.2HZ |
| Switching from Mains to Backup and from Backup to Mains | Automatic |
What’s in the box
Confirm battery inclusion, cables and supplied accessories with our team before purchase.
Warranty
Eastman lists 10 Years*. Coverage and conditions must be confirmed before purchase.
