SKU: MSI-310876 · Model: B450M-A PRO MAX II
In Stock
Enter your PIN code to find delivery options and a nearby store.

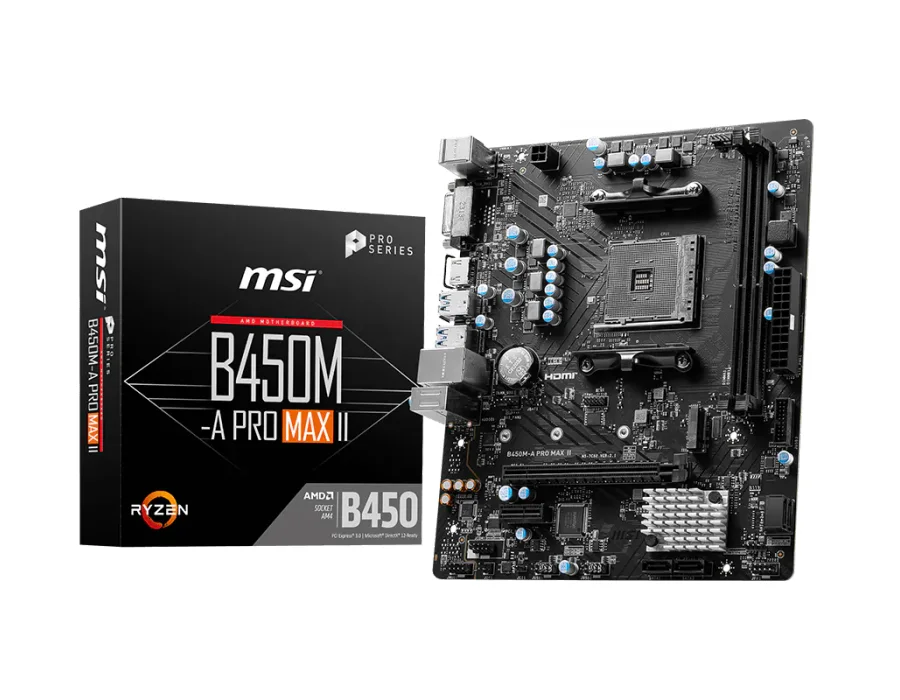

MSI B450M-A PRO MAX II Model: B450M-A PRO MAX II Chipset: AMD B450; CPU: Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon™ with Radeon™ Vega Graphics desktop processors; Socket AM4; Memory: 2x DDR4, Maximum Memory Capacity 64GB; Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE); Supports Dual-Channel mode; Supports non-ECC, UDIMM memory; Supports ECC UDIMM memory (non-ECC mode); Supports un-buffered memory; Onboard Graphics: 1x HDMI™; Support HDMITM 2.0b with HDR port, maximum resolution of 4K 60Hz*; 1x DVI; Support DVI-D, maximum resolution of 1920x1200 60Hz; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.; Slot: 1x PCI-E x16 slot (Qty); 1x PCI-E x1 slot (Qty); PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) ; PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset) ; Audio: Realtek® ALC897 Codec; 7.1-Channel High Definition Audio; Storage: 1x M.2 (Qty); M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices ; 4x SATA 6G (Qty); RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; USB: 2x USB 2.0 (Rear); 4x USB 2.0 (Front); 4x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); LAN: Realtek® 8125 2.5Gbps LAN controller; Internal IO: 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 1x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit; PCB Info: mATX; 200mmx236mm;
| CPU | Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon™ with Radeon™ Vega Graphics desktop processors; Socket AM4; |
|---|---|
| LAN | Realtek® 8125 2.5Gbps LAN controller; |
| USB | 2x USB 2.0 (Rear); 4x USB 2.0 (Front); 4x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; |
| Slot | 1x PCI-E x16 slot (Qty); 1x PCI-E x1 slot (Qty); PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) ; PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset) ; |
| Audio | Realtek® ALC897 Codec; 7.1-Channel High Definition Audio; |
| Model | B450M-A PRO MAX II |
| Memory | 2x DDR4, Maximum Memory Capacity 64GB; Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE); Supports Dual-Channel mode; Supports non-ECC, UDIMM memory; Supports ECC UDIMM memory (non-ECC mode); Supports un-buffered memory; |
| Chipset | AMD B450; |
| Storage | 1x M.2 (Qty); M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices ; 4x SATA 6G (Qty); |
| PCB Info | mATX; 200mmx236mm; |
| Internal IO | 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 1x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit; |
| Onboard Graphics | 1x HDMI™; Support HDMITM 2.0b with HDR port, maximum resolution of 4K 60Hz*; 1x DVI; Support DVI-D, maximum resolution of 1920x1200 60Hz; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.; |
Confirm the supplied items with our team.
Warranty information will be confirmed before purchase.
Module Type SO-DIMM; Memory Slot(Total) 2; Memory Slot(Free) 2; Max Capacity Max 64GB / Module Type SO-DIMM; Memory Slot(Total) 2; Memory Slot(Free) 2; Max Capacity Max 64GB / Module Type SO-DIMM; Memory Slot(Total) 2; Memory Slot(Free) 2; Max Capacity Max 64GB / Memory Size 8GB(8GB*1); Memory Type DDR4 SDRAM; Module Type SO-DIMM; Memory Slot(Total) 2; Memory Slot(Free) 1; Max Capacity Max 64GB / Memory Size 8GB(8GB*1); Memory Type DDR4 SDRAM; Module Type SO-DIMM; Memory Slot(Total) 2; Memory Sl
