SKU: MSI-367719 · Model: B550 GAMING WIFI6E
In Stock
Enter your PIN code to find delivery options and a nearby store.

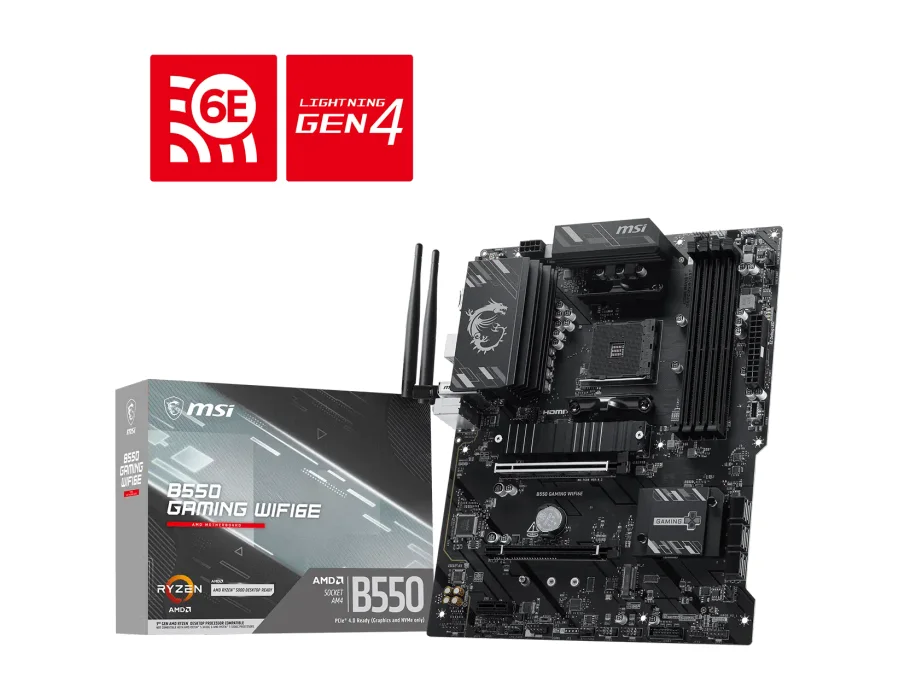

MSI B550 GAMING WIFI6E Model: B550 GAMING WIFI6E Chipset: AMD B550; CPU: Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors; Socket AM4; Memory: 4x DDR4, Maximum Memory Capacity 128GB; Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE; Max. overclocking frequency:; • 1DPC 1R Max speed up to 4800+ MHz; • 1DPC 2R Max speed up to 3866+ MHz; • 2DPC 1R Max speed up to 4000+ MHz; • 2DPC 2R Max speed up to 3600+ MHz; ; • Dual channel memory architecture; • Supports non-ECC UDIMM memory; • Supports ECC UDIMM memory (non-ECC mode); • Supports Onboard Graphics: 1x HDMI™; Support HDMI™ 1.4, maximum resolution of 4K 30Hz*; 1x DisplayPort; Support DisplayPort 1.2, maximum resolution of 4K 60Hz*; ; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.; Slot: 2x PCI-E x16 slot (Qty); 1x PCI-E x1 slot (Qty); PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) ; PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset) ; PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) ; *The supported specification depends on installed processor.; **When installing PCIe SSD in M.2_2 slot, PCI_E2 slot will be unavailable.; Audio: Realtek® ALC897; 7.1-Channel High Definition Audio; Storage: 2x M.2 (Qty); M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices ; M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices ; 6x SATA 6G (Qty); USB: 4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 1x USB 5Gbps Type C (Front); 1x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Rear); LAN: Realtek® 8111H 1G LAN; Internal IO: 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 1x PUMP_SYS Fan; 6x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 2x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 5Gbps Type C ports; WIRELESS LAN & BLUETOOTH: Wi-Fi 6E Solution; The Wireless module is pre-installed in the M.2 (Key-E) slot; Dual-band 1T1R mode; Supports MU-MIMO RX; Supports 2.4GHz/ 5GHz/ 6GHz* frequency band; Supports 802.11 a/ b/ g/ n/ ac/ ax; ; Supports Bluetooth® 5.3**; ; * The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations.; ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.; LED FEATURE: 4x EZ Debug LED; OPERATING SYSTEM: Support for Windows® 11 64-bit; PCB Info: ATX; 243.84mmx304.8mm;
| CPU | Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors; Socket AM4; |
|---|---|
| LAN | Realtek® 8111H 1G LAN; |
| USB | 4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 1x USB 5Gbps Type C (Front); 1x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Rear); |
| Slot | 2x PCI-E x16 slot (Qty); 1x PCI-E x1 slot (Qty); PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) ; PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset) ; PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) ; *The supported specification depends on installed processor.; **When installing PCIe SSD in M.2_2 slot, PCI_E2 slot will be unavailable.; |
| Audio | Realtek® ALC897; 7.1-Channel High Definition Audio; |
| Model | B550 GAMING WIFI6E |
| Memory | 4x DDR4, Maximum Memory Capacity 128GB; Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE; Max. overclocking frequency:; • 1DPC 1R Max speed up to 4800+ MHz; • 1DPC 2R Max speed up to 3866+ MHz; • 2DPC 1R Max speed up to 4000+ MHz; • 2DPC 2R Max speed up to 3600+ MHz; ; • Dual channel memory architecture; • Supports non-ECC UDIMM memory; • Supports ECC UDIMM memory (non-ECC mode); • Supports |
| Chipset | AMD B550; |
| Storage | 2x M.2 (Qty); M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices ; M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices ; 6x SATA 6G (Qty); |
| PCB Info | ATX; 243.84mmx304.8mm; |
| Internal IO | 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 1x PUMP_SYS Fan; 6x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 2x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 5Gbps Type C ports; |
| LED FEATURE | 4x EZ Debug LED; |
| OPERATING SYSTEM | Support for Windows® 11 64-bit; |
| Onboard Graphics | 1x HDMI™; Support HDMI™ 1.4, maximum resolution of 4K 30Hz*; 1x DisplayPort; Support DisplayPort 1.2, maximum resolution of 4K 60Hz*; ; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.; |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 6E Solution; The Wireless module is pre-installed in the M.2 (Key-E) slot; Dual-band 1T1R mode; Supports MU-MIMO RX; Supports 2.4GHz/ 5GHz/ 6GHz* frequency band; Supports 802.11 a/ b/ g/ n/ ac/ ax; ; Supports Bluetooth® 5.3**; ; * The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations.; ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.; |
