SKU: MSI-367720 · Model: B550M GAMING PLUS WIFI6E
In Stock
Enter your PIN code to find delivery options and a nearby store.

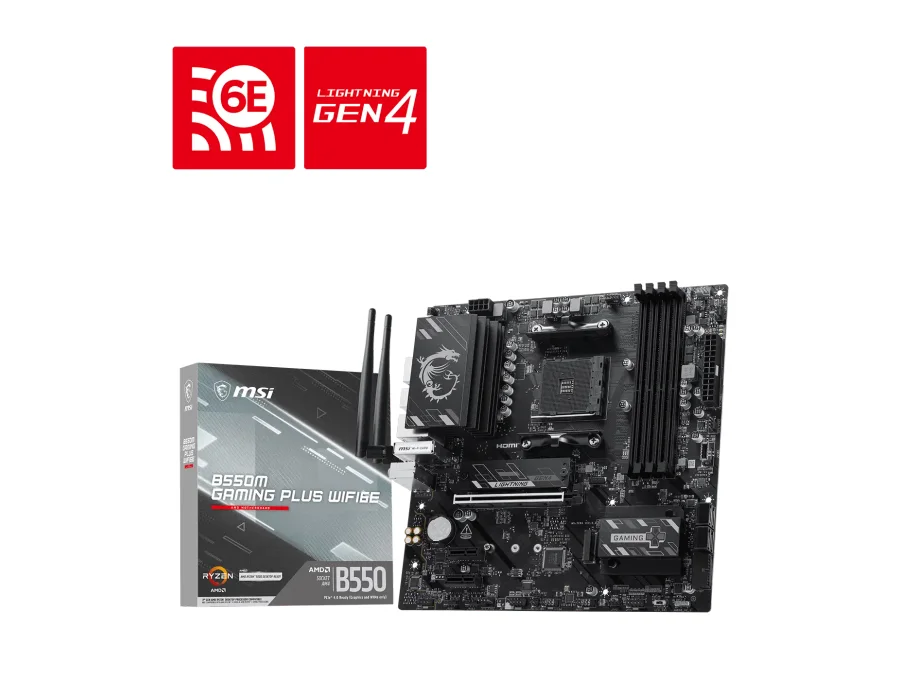

MSI B550M GAMING PLUS WIFI6E Model: B550M GAMING PLUS WIFI6E Chipset: AMD B550; CPU: Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors; Socket AM4; Memory: 4x DDR4, Maximum Memory Capacity 128GB; Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE; Max. overclocking frequency:; • 1DPC 1R Max speed up to 4400+ MT/s; • 1DPC 2R Max speed up to 3733+ MT/s; • 2DPC 1R Max speed up to 3866+ MT/s; • 2DPC 2R Max speed up to 3466+ MT/s; ; Supports JEDEC Speed; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Memory Overclocking by A-XMP OC mode; ; • The DIMM sl Onboard Graphics: 1x HDMI™; Support HDMITM 2.1, maximum resolution of 4K 60Hz*; 1x DisplayPort; Supports DP 1.4, maximum resolution of 4K 60Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.; Slot: 1x PCI-E x16 slot (Qty); 2x PCI-E x1 slot (Qty); PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) ; PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) ; PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) ; *The supported specification depends on installed processor.; Audio: Realtek® ALC897 Codec; 7.1-Channel High Definition Audio; Storage: 2x M.2 (Qty); M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices ; M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices ; 4x SATA 6G (Qty); *The supported specification depends on installed processor.; RAID: Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*; Supports RAID 0 and RAID 1 for M.2 NVMe storage devices; USB: 2x USB 2.0 (Rear); 4x USB 2.0 (Front); 4x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 1x USB 5Gbps Type C (Front); LAN: Realtek® RTL8111H 1Gbps LAN; Internal IO: 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 3x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 2x Addressable V2 RGB LED connector (JARGB_V2); 2x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 5Gbps Type C ports; WIRELESS LAN & BLUETOOTH: Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Dual-band 1T1R mode; Supports MU-MIMO RX; Supports 2.4GHz/ 5GHz/ 6GHz* frequency band; Supports 802.11 a/ b/ g/ n/ ac/ ax; ; Supports Bluetooth® 5.3**; * The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations.; ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.; LED FEATURE: 4x EZ Debug LED; OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit; PCB Info: mATX; 243.84mmx243.84mm;
| CPU | Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors; Socket AM4; |
|---|---|
| LAN | Realtek® RTL8111H 1Gbps LAN; |
| USB | 2x USB 2.0 (Rear); 4x USB 2.0 (Front); 4x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 1x USB 5Gbps Type C (Front); |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*; Supports RAID 0 and RAID 1 for M.2 NVMe storage devices; |
| Slot | 1x PCI-E x16 slot (Qty); 2x PCI-E x1 slot (Qty); PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) ; PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) ; PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) ; *The supported specification depends on installed processor.; |
| Audio | Realtek® ALC897 Codec; 7.1-Channel High Definition Audio; |
| Model | B550M GAMING PLUS WIFI6E |
| Memory | 4x DDR4, Maximum Memory Capacity 128GB; Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE; Max. overclocking frequency:; • 1DPC 1R Max speed up to 4400+ MT/s; • 1DPC 2R Max speed up to 3733+ MT/s; • 2DPC 1R Max speed up to 3866+ MT/s; • 2DPC 2R Max speed up to 3466+ MT/s; ; Supports JEDEC Speed; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Memory Overclocking by A-XMP OC mode; ; • The DIMM sl |
| Chipset | AMD B550; |
| Storage | 2x M.2 (Qty); M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices ; M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices ; 4x SATA 6G (Qty); *The supported specification depends on installed processor.; |
| PCB Info | mATX; 243.84mmx243.84mm; |
| Internal IO | 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 3x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 2x Addressable V2 RGB LED connector (JARGB_V2); 2x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 5Gbps Type C ports; |
| LED FEATURE | 4x EZ Debug LED; |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit; |
| Onboard Graphics | 1x HDMI™; Support HDMITM 2.1, maximum resolution of 4K 60Hz*; 1x DisplayPort; Supports DP 1.4, maximum resolution of 4K 60Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.; |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Dual-band 1T1R mode; Supports MU-MIMO RX; Supports 2.4GHz/ 5GHz/ 6GHz* frequency band; Supports 802.11 a/ b/ g/ n/ ac/ ax; ; Supports Bluetooth® 5.3**; * The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations.; ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.; |
Confirm the supplied items with our team.
Warranty information will be confirmed before purchase.
Module Type SO-DIMM; Memory Slot(Total) 2; Memory Slot(Free) 2; Max Capacity Max 64GB / Module Type SO-DIMM; Memory Slot(Total) 2; Memory Slot(Free) 2; Max Capacity Max 64GB / Module Type SO-DIMM; Memory Slot(Total) 2; Memory Slot(Free) 2; Max Capacity Max 64GB / Memory Size 8GB(8GB*1); Memory Type DDR4 SDRAM; Module Type SO-DIMM; Memory Slot(Total) 2; Memory Slot(Free) 1; Max Capacity Max 64GB / Memory Size 8GB(8GB*1); Memory Type DDR4 SDRAM; Module Type SO-DIMM; Memory Slot(Total) 2; Memory Sl
