SKU: MSI-320296 · Model: B650M BOMBER WIFI
In Stock
Enter your PIN code to find delivery options and a nearby store.

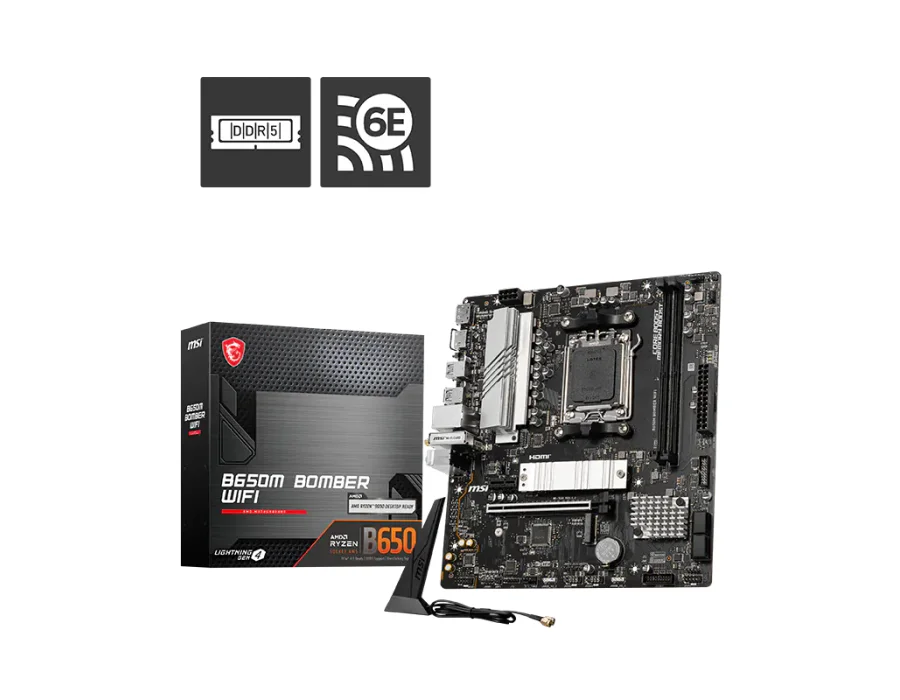

MSI B650M BOMBER WIFI Model: B650M BOMBER WIFI Chipset: AMD B650; CPU: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5; Memory: 2x DDR5, Maximum Memory Capacity 128GB; Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s; Max. overclocking:; • 1DPC 1R Max speed up to 7800+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports AMD EXPO™; Onboard Graphics: 1x HDMI™; Support HDMI™ 2.1, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DP 1.4, maximum resolution of 4K 60Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.; Slot: 1x PCI-E x16 slot (Qty); Supports x16/x1; • Supports x16 (For Ryzen™ 9000/ 7000 Series processors); • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors); • Supports x4 (For Ryzen™ 8500/ 8300 Series processors); 1x PCI-E x1 slot (Qty); PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) ; PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) ; Audio: Realtek® ALC897 Codec; 7.1-Channel High Definition Audio; Storage: 2x M.2 (Qty); M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices ; M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices ; 4x SATA 6G (Qty); • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor; RAID: Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices; USB: 2x USB 2.0 (Rear); 4x USB 2.0 (Front); 3x USB 5Gbps Type A (Rear); 1x USB 5Gbps Type C (Rear); 4x USB 5Gbps Type A (Front); LAN: Realtek® RTL8125BG 2.5Gbps LAN; Internal IO: 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 3x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 2x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 4x USB 5Gbps Type A ports; WIRELESS LAN & BLUETOOTH: Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX; Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands ; Supports 802.11 a/ b/ g/ n/ ac/ ax; ; Supports Bluetooth® 5.3**; ; * The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations.; ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.; LED FEATURE: 4x EZ Debug LED; OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit; PCB Info: mATX; 226mmx243.84mm;
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5; |
|---|---|
| LAN | Realtek® RTL8125BG 2.5Gbps LAN; |
| USB | 2x USB 2.0 (Rear); 4x USB 2.0 (Front); 3x USB 5Gbps Type A (Rear); 1x USB 5Gbps Type C (Rear); 4x USB 5Gbps Type A (Front); |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices; |
| Slot | 1x PCI-E x16 slot (Qty); Supports x16/x1; • Supports x16 (For Ryzen™ 9000/ 7000 Series processors); • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors); • Supports x4 (For Ryzen™ 8500/ 8300 Series processors); 1x PCI-E x1 slot (Qty); PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) ; PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) ; |
| Audio | Realtek® ALC897 Codec; 7.1-Channel High Definition Audio; |
| Model | B650M BOMBER WIFI |
| Memory | 2x DDR5, Maximum Memory Capacity 128GB; Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s; Max. overclocking:; • 1DPC 1R Max speed up to 7800+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports AMD EXPO™; |
| Chipset | AMD B650; |
| Storage | 2x M.2 (Qty); M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices ; M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices ; 4x SATA 6G (Qty); • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor; |
| PCB Info | mATX; 226mmx243.84mm; |
| Internal IO | 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 3x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 2x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 4x USB 5Gbps Type A ports; |
| LED FEATURE | 4x EZ Debug LED; |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit; |
| Onboard Graphics | 1x HDMI™; Support HDMI™ 2.1, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DP 1.4, maximum resolution of 4K 60Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.; |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX; Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands ; Supports 802.11 a/ b/ g/ n/ ac/ ax; ; Supports Bluetooth® 5.3**; ; * The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations.; ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.; |
