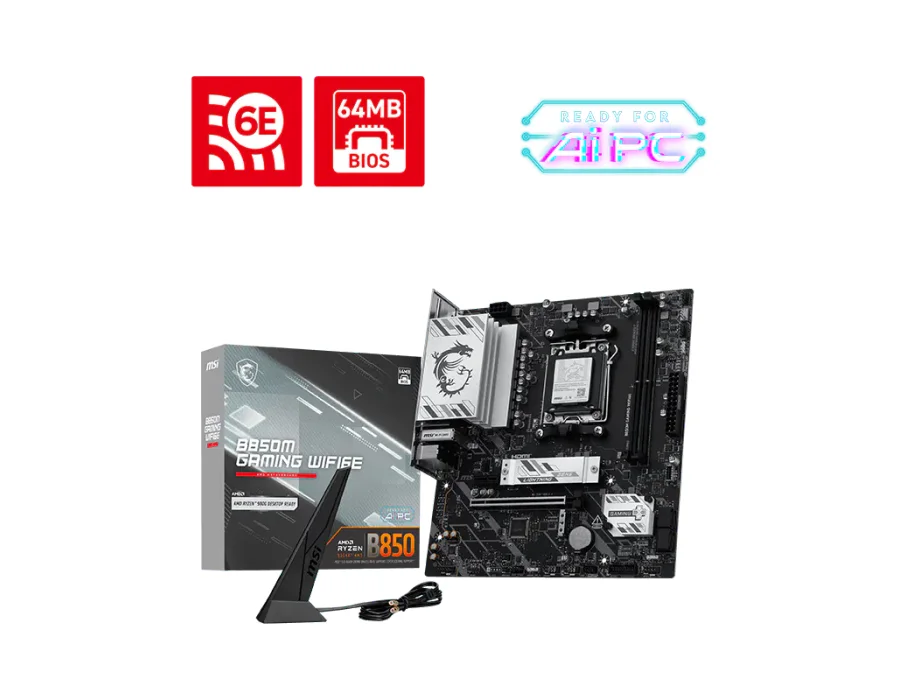

SKU: MSI-332839 · Model: B850M GAMING WIFI6E
In Stock
Enter your PIN code to find delivery options and a nearby store.
MSI B850M GAMING WIFI6E Model: B850M GAMING WIFI6E Chipset: AMD B850 CPU: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5 Memory: 2x DDR5 UDIMM, Maximum Memory Capacity 128GBMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/sRyzen™ 9000 Series Processors max. overclocking frequency:; • 1DPC 1R Max speed up to 8200+ MT/s; • 1DPC 2R Max speed up to 8000+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only*; ; * CUDIMM support and POR boot frequency may vary b Onboard Graphics: 1x HDMI™Support HDMI™ 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupport DisplayPort 1.4, maximum resolution of 4K 60Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Slot: 1x PCI-E x16 slot (Qty)1x PCI-E x1 slot (Qty)PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) ; PCI_E1 slot; • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors); • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors); • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) Audio: Realtek® ALC8977.1-Channel High Definition Audio Storage: 2x M.2 (Qty)M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G (Qty); M2_1 slot; • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors); • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors); ; M2_2 slot; • Supports up to PCIe 4.0 x4; • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors); ; *Please refer to the manual for M.2 SSD heatsink restr RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; Supports RAID 0 and RAID 1 for M.2 NVMe storage devices USB: 2x USB 2.0 (Rear)4x USB 2.0 (Front)3x USB 5Gbps Type A (Rear)1x USB 5Gbps Type C (Rear)2x USB 5Gbps Type A (Front)1x USB 10Gbps Type C (Front) LAN: Realtek® 8125D 2.5G LAN Internal IO: 1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan1x PUMP_SYS Fan3x System Fan1x ARGB+FAN Header (JAF_1)2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 10Gbps Type C ports WIRELESS LAN & BLUETOOTH: Wi-Fi 6E SolutionThe Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth® 5.3, FIPS, FISMA; * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.; ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. LED FEATURE: 4x EZ Debug LED; 1x EZ Memory Detection LED BACK PANEL PORTS: Clear CMOS Button USB 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth HD Audio Connectors DisplayPort 1.4 HDMI™ Flash BIOS Button USB 5Gbps (Type-C) USB 2.0 OPERATING SYSTEM: Support for Windows® 11 64-bit PCB Info: mATX226mmx243.84mm
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5 |
|---|---|
| LAN | Realtek® 8125D 2.5G LAN |
| USB | 2x USB 2.0 (Rear)4x USB 2.0 (Front)3x USB 5Gbps Type A (Rear)1x USB 5Gbps Type C (Rear)2x USB 5Gbps Type A (Front)1x USB 10Gbps Type C (Front) |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Slot | 1x PCI-E x16 slot (Qty)1x PCI-E x1 slot (Qty)PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) ; PCI_E1 slot; • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors); • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors); • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
| Audio | Realtek® ALC8977.1-Channel High Definition Audio |
| Model | B850M GAMING WIFI6E |
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GBMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/sRyzen™ 9000 Series Processors max. overclocking frequency:; • 1DPC 1R Max speed up to 8200+ MT/s; • 1DPC 2R Max speed up to 8000+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only*; ; * CUDIMM support and POR boot frequency may vary b |
| Chipset | AMD B850 |
| Storage | 2x M.2 (Qty)M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G (Qty); M2_1 slot; • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors); • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors); ; M2_2 slot; • Supports up to PCIe 4.0 x4; • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors); ; *Please refer to the manual for M.2 SSD heatsink restr |
| PCB Info | mATX226mmx243.84mm |
| Internal IO | 1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan1x PUMP_SYS Fan3x System Fan1x ARGB+FAN Header (JAF_1)2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 10Gbps Type C ports |
| LED FEATURE | 4x EZ Debug LED; 1x EZ Memory Detection LED |
| BACK PANEL PORTS | Clear CMOS Button USB 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth HD Audio Connectors DisplayPort 1.4 HDMI™ Flash BIOS Button USB 5Gbps (Type-C) USB 2.0 |
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
| Onboard Graphics | 1x HDMI™Support HDMI™ 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupport DisplayPort 1.4, maximum resolution of 4K 60Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 6E SolutionThe Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth® 5.3, FIPS, FISMA; * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.; ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
