SKU: MSI-311421 · Model: Crosshair 16 HX D14V
In Stock
Enter your PIN code to find delivery options and a nearby store.

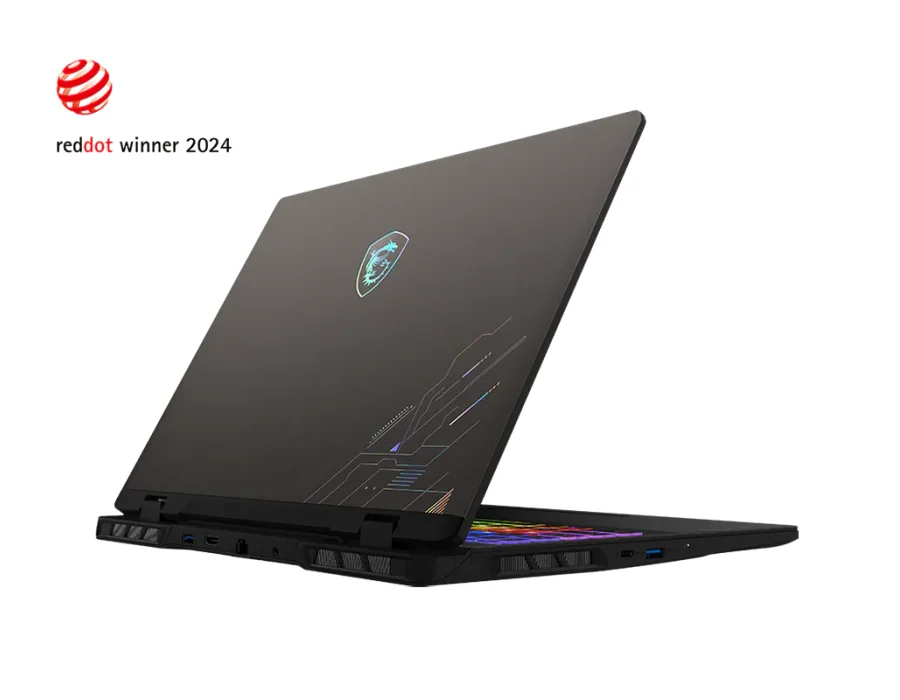

MSI Crosshair 16 HX D14V Model: Crosshair 16 HX D14V Show the Differences: Crosshair 16 HX D14VFKG-206IN / Crosshair 16 HX D14VFKG-452IN / Crosshair 16 HX D14VGKG-205IN / Crosshair 16 HX D14VGKG-668IN CPU: Intel® Core™ i7 processor 14700HX; 20 cores (8 P-cores + 12 E-cores), 28 threads, 33 MB Intel® Smart Cache, Max Turbo Frequency 5.5 GHz / Intel® Core™ i7 processor 14650HX; 16 cores (8 P-cores + 8 E-cores), 24 threads, 30 MB Intel® Smart Cache, Max Turbo Frequency 5.2 GHz / Intel® Core™ i7 processor 14700HX; 20 cores (8 P-cores + 12 E-cores), 28 threads, 33 MB Intel® Smart Cache, Max Turbo Frequency 5.5 GHz / Intel® Core™ i7 processor 14700HX; 20 cores (8 P-cores + 12 E-cores), 28 threads, 33 MB Operating Systems: Windows 11 Home (MSI recommends Windows 11 Pro for business.) / Windows 11 Home (MSI recommends Windows 11 Pro for business.) / Windows 11 Home (MSI recommends Windows 11 Pro for business.) / Windows 11 Home (MSI recommends Windows 11 Pro for business.) Microsoft Office: - / - / - / Office Home 2024 included Display: 16" QHD+(2560x1600), 240Hz Refresh Rate, IPS-Level, 100% DCI-P3(Typical) / 16" QHD+(2560x1600), 240Hz Refresh Rate, IPS-Level, 100% DCI-P3(Typical) / 16" QHD+(2560x1600), 240Hz Refresh Rate, IPS-Level, 100% DCI-P3(Typical) / 16" QHD+(2560x1600), 240Hz Refresh Rate, IPS-Level, 100% DCI-P3(Typical) Chipset: Intel® HM770 / Intel® HM770 / Intel® HM770 / Intel® HM770 Discrete Graphics: NVIDIA® GeForce RTX™ 4060 Laptop GPU powers advanced AI with 233 AI TOPS; Up to 2370MHz Boost Clock 140W Maximum Graphics Power with Dynamic Boost.; *May vary by scenario; *Full-Power GPU Design / NVIDIA® GeForce RTX™ 4060 Laptop GPU powers advanced AI with 233 AI TOPS; Up to 2370MHz Boost Clock 140W Maximum Graphics Power with Dynamic Boost.; *May vary by scenario; *Full-Power GPU Design / NVIDIA® GeForce RTX™ 4070 Laptop GPU powers advanced AI with 321 AI TOPS; Up to 2175MHz Boost Clock 140W M Video Memory: 8GB GDDR6 / 8GB GDDR6 / 8GB GDDR6 / 8GB GDDR6 Memory: 8GB*2 DDR5; *Vary by Memory capacity / 8GB*2 DDR5; *Vary by Memory capacity / 16GB*2 DDR5; *Vary by Memory capacity / 16GB*2 DDR5; *The actual frequency will vary by memory combination and CPU capability. Memory Slot and Max Capacity: Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Slots, Max 96GB Storage: 1TB*1 NVMe SSD PCIe Gen4; / 1TB*1 NVMe SSD PCIe Gen4; / 1TB*1 NVMe SSD PCIe Gen4; / 1TB*1 NVMe SSD PCIe Gen4; Storage Slot: 1x M.2 SSD slot (NVMe PCIe Gen4), 1x M.2 SSD slot (NVMe PCIe Gen5) Compatible / 1x M.2 SSD slot (NVMe PCIe Gen4), 1x M.2 SSD slot (NVMe PCIe Gen5) Compatible / 1x M.2 SSD slot (NVMe PCIe Gen4), 1x M.2 SSD slot (NVMe PCIe Gen5) Compatible / 1x M.2 SSD slot (NVMe PCIe Gen4), 1x M.2 SSD slot (NVMe PCIe Gen5) Compatible Keyboard: 24-Zone RGB Gaming Keyboard with Copilot Key / 24-Zone RGB Gaming Keyboard with Copilot Key / 24-Zone RGB Gaming Keyboard with Copilot Key / 24-Zone RGB Gaming Keyboard with Copilot Key WebCam: HD type (30fps@720p) with 3D Noise Reduction (3DNR) / HD type (30fps@720p) with 3D Noise Reduction (3DNR) / HD type (30fps@720p) with 3D Noise Reduction (3DNR) / HD type (30fps@720p) with 3D Noise Reduction (3DNR) Audio: 2x 2W Audio Speaker; Nahimic 3 Audio Enhancer, Hi-Res Audio Ready; Array Microphone / 2x 2W Audio Speaker; Nahimic 3 Audio Enhancer, Hi-Res Audio Ready; Array Microphone / 2x 2W Audio Speaker; Nahimic 3 Audio Enhancer, Hi-Res Audio Ready; Array Microphone / 2x 2W Audio Speaker; Nahimic 3 Audio Enhancer, Hi-Res Audio Ready; Array Microphone Audio Port: 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone-out Combo Jack USB Ports: 3x Type-A USB3.2 Gen1; 1x Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0) / 3x Type-A USB3.2 Gen1; 1x Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0) / 3x Type-A USB3.2 Gen1; 1x Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0) / 3x Type-A USB3.2 Gen1; 1x Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0) Video Ports: 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) LAN: Gigabit Ethernet / Gigabit Ethernet / Gigabit Ethernet / Gigabit Ethernet Wi-Fi/ Bluetooth: Intel® Wi-Fi 6E AX211, Bluetooth v5.4 / Intel® Wi-Fi 6E AX211, Bluetooth v5.4 / Intel® Wi-Fi 6E AX211, Bluetooth v5.4 / Intel® Wi-Fi 6E AX211, Bluetooth v5.4 Security: Firmware Trusted Platform Module(fTPM) 2.0, Webcam Shutter, Kensington Lock / Firmware Trusted Platform Module(fTPM) 2.0, Webcam Shutter, Kensington Lock / Firmware Trusted Platform Module(fTPM) 2.0, Webcam Shutter, Kensington Lock / Firmware Trusted Platform Module(fTPM) 2.0, Webcam Shutter, Kensington Lock Adapter: 240W / 240W / 240W / 240W Battery: 4-Cell; 90 Whrs / 4-Cell; 90 Whrs / 4-Cell; 90 Whrs / 4-Cell; 90 Whrs Dimension (WXDXH): 359 x 266.4 x 21.8-27.9 mm / 359 x 266.4 x 21.8-27.9 mm / 359 x 266.4 x 21.8-27.9 mm / 359 x 266.4 x 21.8-27.9 mm Weight (W/ Battery): 2.5 kg / 2.5 kg / 2.5 kg / 2.5 kg Chassis Color: Cosmos Gray / Cosmos Gray / Cosmos Gray / Cosmos Gray Warranty: 2 years limited warranty / 2 years limited warranty / 2 years limited warranty / 2 years limited warranty Integrated Graphics: Intel® UHD Graphics Configurations: 4 manufacturer configurations; contact us for the exact configuration and quote. Series: Intel® Core™ processor (14th gen) / GeForce RTX™ 40 Series
| CPU | Intel® Core™ i7 processor 14700HX; 20 cores (8 P-cores + 12 E-cores), 28 threads, 33 MB Intel® Smart Cache, Max Turbo Frequency 5.5 GHz / Intel® Core™ i7 processor 14650HX; 16 cores (8 P-cores + 8 E-cores), 24 threads, 30 MB Intel® Smart Cache, Max Turbo Frequency 5.2 GHz / Intel® Core™ i7 processor 14700HX; 20 cores (8 P-cores + 12 E-cores), 28 threads, 33 MB Intel® Smart Cache, Max Turbo Frequency 5.5 GHz / Intel® Core™ i7 processor 14700HX; 20 cores (8 P-cores + 12 E-cores), 28 threads, 33 MB |
|---|---|
| LAN | Gigabit Ethernet / Gigabit Ethernet / Gigabit Ethernet / Gigabit Ethernet |
| Audio | 2x 2W Audio Speaker; Nahimic 3 Audio Enhancer, Hi-Res Audio Ready; Array Microphone / 2x 2W Audio Speaker; Nahimic 3 Audio Enhancer, Hi-Res Audio Ready; Array Microphone / 2x 2W Audio Speaker; Nahimic 3 Audio Enhancer, Hi-Res Audio Ready; Array Microphone / 2x 2W Audio Speaker; Nahimic 3 Audio Enhancer, Hi-Res Audio Ready; Array Microphone |
| Model | Crosshair 16 HX D14V |
| Memory | 8GB*2 DDR5; *Vary by Memory capacity / 8GB*2 DDR5; *Vary by Memory capacity / 16GB*2 DDR5; *Vary by Memory capacity / 16GB*2 DDR5; *The actual frequency will vary by memory combination and CPU capability. |
| Series | Intel® Core™ processor (14th gen) / GeForce RTX™ 40 Series |
| WebCam | HD type (30fps@720p) with 3D Noise Reduction (3DNR) / HD type (30fps@720p) with 3D Noise Reduction (3DNR) / HD type (30fps@720p) with 3D Noise Reduction (3DNR) / HD type (30fps@720p) with 3D Noise Reduction (3DNR) |
| Adapter | 240W / 240W / 240W / 240W |
| Battery | 4-Cell; 90 Whrs / 4-Cell; 90 Whrs / 4-Cell; 90 Whrs / 4-Cell; 90 Whrs |
| Chipset | Intel® HM770 / Intel® HM770 / Intel® HM770 / Intel® HM770 |
| Display | 16" QHD+(2560x1600), 240Hz Refresh Rate, IPS-Level, 100% DCI-P3(Typical) / 16" QHD+(2560x1600), 240Hz Refresh Rate, IPS-Level, 100% DCI-P3(Typical) / 16" QHD+(2560x1600), 240Hz Refresh Rate, IPS-Level, 100% DCI-P3(Typical) / 16" QHD+(2560x1600), 240Hz Refresh Rate, IPS-Level, 100% DCI-P3(Typical) |
| Storage | 1TB*1 NVMe SSD PCIe Gen4; / 1TB*1 NVMe SSD PCIe Gen4; / 1TB*1 NVMe SSD PCIe Gen4; / 1TB*1 NVMe SSD PCIe Gen4; |
| Keyboard | 24-Zone RGB Gaming Keyboard with Copilot Key / 24-Zone RGB Gaming Keyboard with Copilot Key / 24-Zone RGB Gaming Keyboard with Copilot Key / 24-Zone RGB Gaming Keyboard with Copilot Key |
| Security | Firmware Trusted Platform Module(fTPM) 2.0, Webcam Shutter, Kensington Lock / Firmware Trusted Platform Module(fTPM) 2.0, Webcam Shutter, Kensington Lock / Firmware Trusted Platform Module(fTPM) 2.0, Webcam Shutter, Kensington Lock / Firmware Trusted Platform Module(fTPM) 2.0, Webcam Shutter, Kensington Lock |
| Warranty | 2 years limited warranty / 2 years limited warranty / 2 years limited warranty / 2 years limited warranty |
| USB Ports | 3x Type-A USB3.2 Gen1; 1x Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0) / 3x Type-A USB3.2 Gen1; 1x Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0) / 3x Type-A USB3.2 Gen1; 1x Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0) / 3x Type-A USB3.2 Gen1; 1x Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0) |
| Audio Port | 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone-out Combo Jack |
| Video Ports | 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) |
| Storage Slot | 1x M.2 SSD slot (NVMe PCIe Gen4), 1x M.2 SSD slot (NVMe PCIe Gen5) Compatible / 1x M.2 SSD slot (NVMe PCIe Gen4), 1x M.2 SSD slot (NVMe PCIe Gen5) Compatible / 1x M.2 SSD slot (NVMe PCIe Gen4), 1x M.2 SSD slot (NVMe PCIe Gen5) Compatible / 1x M.2 SSD slot (NVMe PCIe Gen4), 1x M.2 SSD slot (NVMe PCIe Gen5) Compatible |
| Video Memory | 8GB GDDR6 / 8GB GDDR6 / 8GB GDDR6 / 8GB GDDR6 |
| Chassis Color | Cosmos Gray / Cosmos Gray / Cosmos Gray / Cosmos Gray |
| Configurations | 4 manufacturer configurations; contact us for the exact configuration and quote. |
| Microsoft Office | - / - / - / Office Home 2024 included |
| Wi-Fi/ Bluetooth | Intel® Wi-Fi 6E AX211, Bluetooth v5.4 / Intel® Wi-Fi 6E AX211, Bluetooth v5.4 / Intel® Wi-Fi 6E AX211, Bluetooth v5.4 / Intel® Wi-Fi 6E AX211, Bluetooth v5.4 |
| Dimension (WXDXH) | 359 x 266.4 x 21.8-27.9 mm / 359 x 266.4 x 21.8-27.9 mm / 359 x 266.4 x 21.8-27.9 mm / 359 x 266.4 x 21.8-27.9 mm |
| Discrete Graphics | NVIDIA® GeForce RTX™ 4060 Laptop GPU powers advanced AI with 233 AI TOPS; Up to 2370MHz Boost Clock 140W Maximum Graphics Power with Dynamic Boost.; *May vary by scenario; *Full-Power GPU Design / NVIDIA® GeForce RTX™ 4060 Laptop GPU powers advanced AI with 233 AI TOPS; Up to 2370MHz Boost Clock 140W Maximum Graphics Power with Dynamic Boost.; *May vary by scenario; *Full-Power GPU Design / NVIDIA® GeForce RTX™ 4070 Laptop GPU powers advanced AI with 321 AI TOPS; Up to 2175MHz Boost Clock 140W M |
| Operating Systems | Windows 11 Home (MSI recommends Windows 11 Pro for business.) / Windows 11 Home (MSI recommends Windows 11 Pro for business.) / Windows 11 Home (MSI recommends Windows 11 Pro for business.) / Windows 11 Home (MSI recommends Windows 11 Pro for business.) |
| Integrated Graphics | Intel® UHD Graphics |
| Weight (W/ Battery) | 2.5 kg / 2.5 kg / 2.5 kg / 2.5 kg |
| Show the Differences | Crosshair 16 HX D14VFKG-206IN / Crosshair 16 HX D14VFKG-452IN / Crosshair 16 HX D14VGKG-205IN / Crosshair 16 HX D14VGKG-668IN |
| Memory Slot and Max Capacity | Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Slots, Max 96GB |
Confirm the supplied items with our team.
Warranty information will be confirmed before purchase.
Module Type SO-DIMM; Memory Slot(Total) 2; Memory Slot(Free) 2; Max Capacity Max 64GB / Module Type SO-DIMM; Memory Slot(Total) 2; Memory Slot(Free) 2; Max Capacity Max 64GB / Module Type SO-DIMM; Memory Slot(Total) 2; Memory Slot(Free) 2; Max Capacity Max 64GB / Memory Size 8GB(8GB*1); Memory Type DDR4 SDRAM; Module Type SO-DIMM; Memory Slot(Total) 2; Memory Slot(Free) 1; Max Capacity Max 64GB / Memory Size 8GB(8GB*1); Memory Type DDR4 SDRAM; Module Type SO-DIMM; Memory Slot(Total) 2; Memory Sl
