SKU: MSI-298258 · Model: Cubi 5 12M
In Stock
Enter your PIN code to find delivery options and a nearby store.

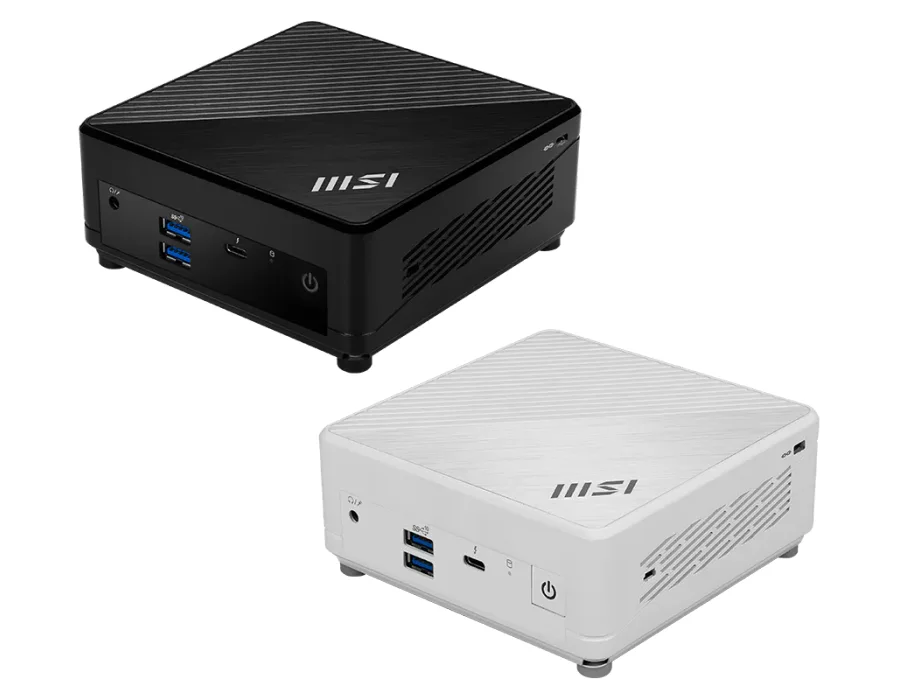

MSI Cubi 5 12M Model: Cubi 5 12M Show the Differences: Cubi 5 12M-285BIN / Cubi 5 12M-299BIN / Cubi 5 12M-400BIN EAN: 4711377247368 / 4711377290234 / 4711377290241 Part No: 936-B0A811-285 / 936-B0A812-299 / 936-B0A811-400 MKT Name: Cubi 5 12M / Cubi 5 12M / Cubi 5 12M SKU Name: Cubi 5 12M-285BIN / Cubi 5 12M-299BIN / Cubi 5 12M-400BIN Color: Black / White / Black Chipsets: Soc / Soc / Soc Module Type: SO-DIMM / SO-DIMM / SO-DIMM Memory Slot(Total): 2 / 2 / 2 Memory Slot(Free): 2 / 2 / 2 Max Capacity: Max 64GB / Max 64GB / Max 64GB CPU Number: Intel Core i5-1235U / Intel Core i5-1235U / Intel Core i3-1215U CPU Clock: 1.3GHz / 1.3GHz / 1.2GHz CPU Cores: 10 / 10 / 6 TDP: 15W / 15W / 15W Max Turbo Frequency: up to 4.40 GHz / up to 4.40 GHz / up to 4.40 GHz Cache: 12 MB Intel® Smart Cache / 12 MB Intel® Smart Cache / 10 MB Intel® Smart Cache Threads: 12 / 12 / 8 Audio Chipset: Realtek ALC256 / Realtek ALC256 / Realtek ALC256 Audio Type: 2.1 Channel HD Audio / 2.1 Channel HD Audio / 2.1 Channel HD Audio mSATA slots(Free): 0 / 0 / 0 M.2 slots(Total): 1 / 1 / 1 M.2 slots(Free): 1 / 1 / 1 2.5" Drive Bays(Total): 1 / 1 / 1 2.5" Drive Bays (Free): 1 / 1 / 1 3.5" Drive Bays(Free): 0 / 0 / 0 LAN: 1x Realtek RTL8111H+1x Realtek RTL8125BG-CG / 1x Realtek RTL8111H+1x Realtek RTL8125BG-CG / 1x Realtek RTL8111H+1x Realtek RTL8125BG-CG WLAN Version: Wi-Fi 6E+BT / Wi-Fi 6E+BT / Wi-Fi 6E+BT BT Version: 5.3 / 5.3 / 5.3 USB 3.2 Gen 2 Type A: 2 / 2 / 2 Mic-in/Headphone-out combo: 1 / 1 / 1 Thunderbolt: 1x (ThunderBolt 4) / 1x (ThunderBolt 4) / 1x (ThunderBolt 4) USB 3.2 Gen 2 Type A (R): 2 / 2 / 2 RJ45: 2 / 2 / 2 HDMI out: 1x (v2.0b) / 1x (v2.0b) / 1x (v2.0b) DP out: 1x (v1.4) / 1x (v1.4) / 1x (v1.4) Weight (Net kg): 0.59 / 0.59 / 0.59 Weight (Gross kg): 1.33 / 1.33 / 1.33 Product Dimension (WxDxH) (mm): 124 x 124 x 53.7 / 124 x 124 x 53.7 / 124 x 124 x 53.7
| EAN | 4711377247368 / 4711377290234 / 4711377290241 |
|---|---|
| LAN | 1x Realtek RTL8111H+1x Realtek RTL8125BG-CG / 1x Realtek RTL8111H+1x Realtek RTL8125BG-CG / 1x Realtek RTL8111H+1x Realtek RTL8125BG-CG |
| TDP | 15W / 15W / 15W |
| RJ45 | 2 / 2 / 2 |
| Cache | 12 MB Intel® Smart Cache / 12 MB Intel® Smart Cache / 10 MB Intel® Smart Cache |
| Color | Black / White / Black |
| Model | Cubi 5 12M |
| DP out | 1x (v1.4) / 1x (v1.4) / 1x (v1.4) |
| Part No | 936-B0A811-285 / 936-B0A812-299 / 936-B0A811-400 |
| Threads | 12 / 12 / 8 |
| Chipsets | Soc / Soc / Soc |
| HDMI out | 1x (v2.0b) / 1x (v2.0b) / 1x (v2.0b) |
| MKT Name | Cubi 5 12M / Cubi 5 12M / Cubi 5 12M |
| SKU Name | Cubi 5 12M-285BIN / Cubi 5 12M-299BIN / Cubi 5 12M-400BIN |
| CPU Clock | 1.3GHz / 1.3GHz / 1.2GHz |
| CPU Cores | 10 / 10 / 6 |
| Audio Type | 2.1 Channel HD Audio / 2.1 Channel HD Audio / 2.1 Channel HD Audio |
| BT Version | 5.3 / 5.3 / 5.3 |
| CPU Number | Intel Core i5-1235U / Intel Core i5-1235U / Intel Core i3-1215U |
| Module Type | SO-DIMM / SO-DIMM / SO-DIMM |
| Thunderbolt | 1x (ThunderBolt 4) / 1x (ThunderBolt 4) / 1x (ThunderBolt 4) |
| Max Capacity | Max 64GB / Max 64GB / Max 64GB |
| WLAN Version | Wi-Fi 6E+BT / Wi-Fi 6E+BT / Wi-Fi 6E+BT |
| Audio Chipset | Realtek ALC256 / Realtek ALC256 / Realtek ALC256 |
| M.2 slots(Free) | 1 / 1 / 1 |
| Weight (Net kg) | 0.59 / 0.59 / 0.59 |
| M.2 slots(Total) | 1 / 1 / 1 |
| Memory Slot(Free) | 2 / 2 / 2 |
| Weight (Gross kg) | 1.33 / 1.33 / 1.33 |
| mSATA slots(Free) | 0 / 0 / 0 |
| Memory Slot(Total) | 2 / 2 / 2 |
| Max Turbo Frequency | up to 4.40 GHz / up to 4.40 GHz / up to 4.40 GHz |
| Show the Differences | Cubi 5 12M-285BIN / Cubi 5 12M-299BIN / Cubi 5 12M-400BIN |
| USB 3.2 Gen 2 Type A | 2 / 2 / 2 |
| 3.5" Drive Bays(Free) | 0 / 0 / 0 |
| 2.5" Drive Bays (Free) | 1 / 1 / 1 |
| 2.5" Drive Bays(Total) | 1 / 1 / 1 |
| USB 3.2 Gen 2 Type A (R) | 2 / 2 / 2 |
| Mic-in/Headphone-out combo | 1 / 1 / 1 |
| Product Dimension (WxDxH) (mm) | 124 x 124 x 53.7 / 124 x 124 x 53.7 / 124 x 124 x 53.7 |
Confirm the supplied items with our team.
Warranty information will be confirmed before purchase.
Module Type SO-DIMM; Memory Slot(Total) 2; Memory Slot(Free) 2; Max Capacity Max 64GB / Module Type SO-DIMM; Memory Slot(Total) 2; Memory Slot(Free) 2; Max Capacity Max 64GB / Module Type SO-DIMM; Memory Slot(Total) 2; Memory Slot(Free) 2; Max Capacity Max 64GB / Memory Size 8GB(8GB*1); Memory Type DDR4 SDRAM; Module Type SO-DIMM; Memory Slot(Total) 2; Memory Slot(Free) 1; Max Capacity Max 64GB / Memory Size 8GB(8GB*1); Memory Type DDR4 SDRAM; Module Type SO-DIMM; Memory Slot(Total) 2; Memory Sl
