SKU: MSI-329869 · Model: Cubi NUC AI 1UMG
In Stock
Enter your PIN code to find delivery options and a nearby store.

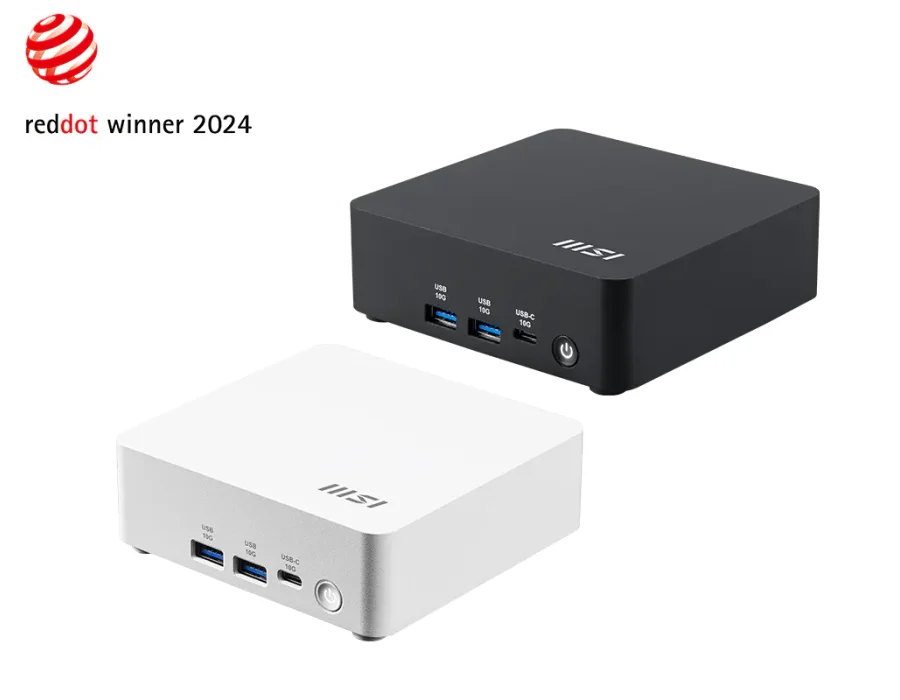

MSI Cubi NUC AI 1UMG Model: Cubi NUC AI 1UMG Show the Differences: Cubi NUC AI 1UMG-058BIN / Cubi NUC AI 1UMG-059BIN Part No: 936-B20911-058 / 936-B20911-059 MKT Name: Cubi NUC AI 1UMG / Cubi NUC AI 1UMG MKT Spec: Cubi NUC AI 1UMG-058BIN / Cubi NUC AI 1UMG-059BIN Color: ID1/Black-Black-Black / ID1/Black-Black-Black Chipsets: Soc / Soc Module Type: SO-DIMM / SO-DIMM Memory Slot(Total): 2 / 2 Memory Slot(Free): 2 / 2 Max Capacity: Max 64GB / Max 64GB CPU Number: Intel Core Ultra 5 processor 125H / Intel Core Ultra 7 processor 155H CPU Clock: 1.2GHz / 1.4GHz CPU Cores: 14 / 16 TDP: 28W / 28W Max Turbo Frequency: up to 4.50 GHz / up to 4.80 GHz Cache: 18 MB Intel® Smart Cache / 24 MB Intel® Smart Cache Threads: 18 / 22 M.2 slots(Total): 2 / 2 M.2 slots(Free): 2 / 2 2.5" Drive Bays (Free): 0 / 0 3.5" Drive Bays(Free): 0 / 0 LAN: 2x Intel I226-V / 2x Intel I226-V WLAN Version: Wi-Fi 6E+BT / Wi-Fi 6E+BT BT Version: 5.3 / 5.3 USB 3.2 Gen 2 (10G) Type C: 1 / 1 USB 3.2 Gen 2 (10G) Type A: 2 / 2 RJ45: 2 / 2 HDMI out: 2x (HDMI v2.1 Support up to 4K@60Hz) / 2x (HDMI v2.1 Support up to 4K@60Hz) Lock type: Kensington Lock / Kensington Lock Warranty: 36months / 36months Weight (Net kg): 0.55 / 0.55 Weight (Gross kg): 1.24 / 1.24 Product Dimension (WxDxH) (mm): 119.6 x 115.2 x 37.5 / 119.6 x 115.2 x 37.5 Product Dimension (WxDxH) (inch): 4.71 x 4.54 x 1.48 / 4.71 x 4.54 x 1.48 Inside Carton Dimension (WxDxH) (mm): 205 x 220 x 94 / 205 x 220 x 94 Inside Carton Dimension (WxDxH) (inch): 8.07 x 8.66 x 3.7 / 8.07 x 8.66 x 3.7 Net Weight (lbs): 1.21 / 1.21 Gross Weight (lbs): 2.73 / 2.73 VESA size: 100 x 100 mm / 100 x 100 mm
| LAN | 2x Intel I226-V / 2x Intel I226-V |
|---|---|
| TDP | 28W / 28W |
| RJ45 | 2 / 2 |
| Cache | 18 MB Intel® Smart Cache / 24 MB Intel® Smart Cache |
| Color | ID1/Black-Black-Black / ID1/Black-Black-Black |
| Model | Cubi NUC AI 1UMG |
| Part No | 936-B20911-058 / 936-B20911-059 |
| Threads | 18 / 22 |
| Chipsets | Soc / Soc |
| HDMI out | 2x (HDMI v2.1 Support up to 4K@60Hz) / 2x (HDMI v2.1 Support up to 4K@60Hz) |
| MKT Name | Cubi NUC AI 1UMG / Cubi NUC AI 1UMG |
| MKT Spec | Cubi NUC AI 1UMG-058BIN / Cubi NUC AI 1UMG-059BIN |
| Warranty | 36months / 36months |
| CPU Clock | 1.2GHz / 1.4GHz |
| CPU Cores | 14 / 16 |
| Lock type | Kensington Lock / Kensington Lock |
| VESA size | 100 x 100 mm / 100 x 100 mm |
| BT Version | 5.3 / 5.3 |
| CPU Number | Intel Core Ultra 5 processor 125H / Intel Core Ultra 7 processor 155H |
| Module Type | SO-DIMM / SO-DIMM |
| Max Capacity | Max 64GB / Max 64GB |
| WLAN Version | Wi-Fi 6E+BT / Wi-Fi 6E+BT |
| M.2 slots(Free) | 2 / 2 |
| Weight (Net kg) | 0.55 / 0.55 |
| M.2 slots(Total) | 2 / 2 |
| Net Weight (lbs) | 1.21 / 1.21 |
| Memory Slot(Free) | 2 / 2 |
| Weight (Gross kg) | 1.24 / 1.24 |
| Gross Weight (lbs) | 2.73 / 2.73 |
| Memory Slot(Total) | 2 / 2 |
| Max Turbo Frequency | up to 4.50 GHz / up to 4.80 GHz |
| Show the Differences | Cubi NUC AI 1UMG-058BIN / Cubi NUC AI 1UMG-059BIN |
| 3.5" Drive Bays(Free) | 0 / 0 |
| 2.5" Drive Bays (Free) | 0 / 0 |
| USB 3.2 Gen 2 (10G) Type A | 2 / 2 |
| USB 3.2 Gen 2 (10G) Type C | 1 / 1 |
| Product Dimension (WxDxH) (mm) | 119.6 x 115.2 x 37.5 / 119.6 x 115.2 x 37.5 |
| Product Dimension (WxDxH) (inch) | 4.71 x 4.54 x 1.48 / 4.71 x 4.54 x 1.48 |
| Inside Carton Dimension (WxDxH) (mm) | 205 x 220 x 94 / 205 x 220 x 94 |
| Inside Carton Dimension (WxDxH) (inch) | 8.07 x 8.66 x 3.7 / 8.07 x 8.66 x 3.7 |
Confirm the supplied items with our team.
Warranty information will be confirmed before purchase.
Module Type SO-DIMM; Memory Slot(Total) 2; Memory Slot(Free) 2; Max Capacity Max 64GB / Module Type SO-DIMM; Memory Slot(Total) 2; Memory Slot(Free) 2; Max Capacity Max 64GB / Module Type SO-DIMM; Memory Slot(Total) 2; Memory Slot(Free) 2; Max Capacity Max 64GB / Memory Size 8GB(8GB*1); Memory Type DDR4 SDRAM; Module Type SO-DIMM; Memory Slot(Total) 2; Memory Slot(Free) 1; Max Capacity Max 64GB / Memory Size 8GB(8GB*1); Memory Type DDR4 SDRAM; Module Type SO-DIMM; Memory Slot(Total) 2; Memory Sl
