SKU: MSI-332786 · Model: GeForce RTX™ 5090 32G LIGHTNING Z
In Stock
Enter your PIN code to find delivery options and a nearby store.

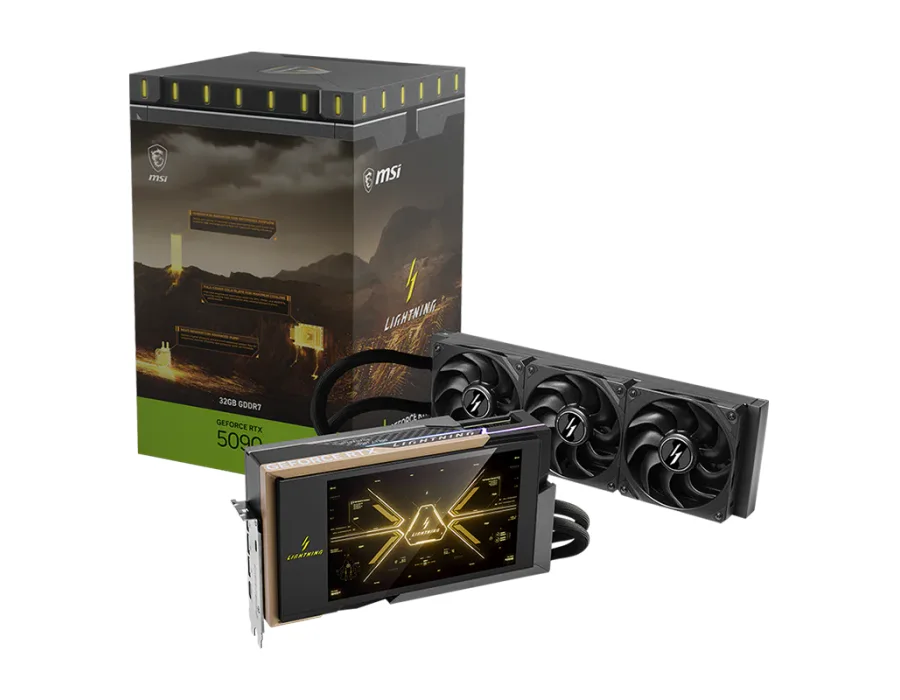

MSI GeForce RTX™ 5090 32G LIGHTNING Z Model: GeForce RTX™ 5090 32G LIGHTNING Z Marketing Name: GeForce RTX™ 5090 32G LIGHTNING Z Memory: 32GB GDDR7 Output: USB Type-C x 1 (Dedicated for Lightning display panel only),; DisplayPort x 3 (2.1b),; HDMI™ x 1; (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) Graphics Processing Unit: NVIDIA® GeForce RTX™ 5090 Interface: PCI Express® Gen 5x 16 Core Clock Speed (MHz): Extreme Performance: 2775 MHz (MSI Center); Boost: 2730 MHz Memory Interface: 512bit Memory Clock Speed (MHz): 28 Gbps OpenGL Version Support: 4.6 Maximum Displays: 4 HDCP Support: Y DirectX Version Support: 12 Ultimate Card Dimension(mm): Card: 260 x 151 x 61 mm; Radiator: 394 x 120 x 56 mm Card Weight (g): TBD g / TBD g Power consumption (W): OC:800 W; EXtreme:1000W Recommended PSU (W): 1600W Digital Maximum Resolution: 7680 x 4320 Power Connectors: 16-pin x 2 (1-to-3 dongle not supported.) Mic-in/Headphone-out: 1/1
| Model | GeForce RTX™ 5090 32G LIGHTNING Z |
|---|---|
| Memory | 32GB GDDR7 |
| Output | USB Type-C x 1 (Dedicated for Lightning display panel only),; DisplayPort x 3 (2.1b),; HDMI™ x 1; (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| Interface | PCI Express® Gen 5x 16 |
| HDCP Support | Y |
| Marketing Name | GeForce RTX™ 5090 32G LIGHTNING Z |
| Card Weight (g) | TBD g / TBD g |
| Maximum Displays | 4 |
| Memory Interface | 512bit |
| Power Connectors | 16-pin x 2 (1-to-3 dongle not supported.) |
| Card Dimension(mm) | Card: 260 x 151 x 61 mm; Radiator: 394 x 120 x 56 mm |
| Recommended PSU (W) | 1600W |
| Mic-in/Headphone-out | 1/1 |
| Power consumption (W) | OC:800 W; EXtreme:1000W |
| Core Clock Speed (MHz) | Extreme Performance: 2775 MHz (MSI Center); Boost: 2730 MHz |
| OpenGL Version Support | 4.6 |
| DirectX Version Support | 12 Ultimate |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5090 |
| Memory Clock Speed (MHz) | 28 Gbps |
| Digital Maximum Resolution | 7680 x 4320 |
Confirm the supplied items with our team.
Warranty information will be confirmed before purchase.
