SKU: MSI-331624 · Model: H810M GAMING WIFI6E
In Stock
Enter your PIN code to find delivery options and a nearby store.

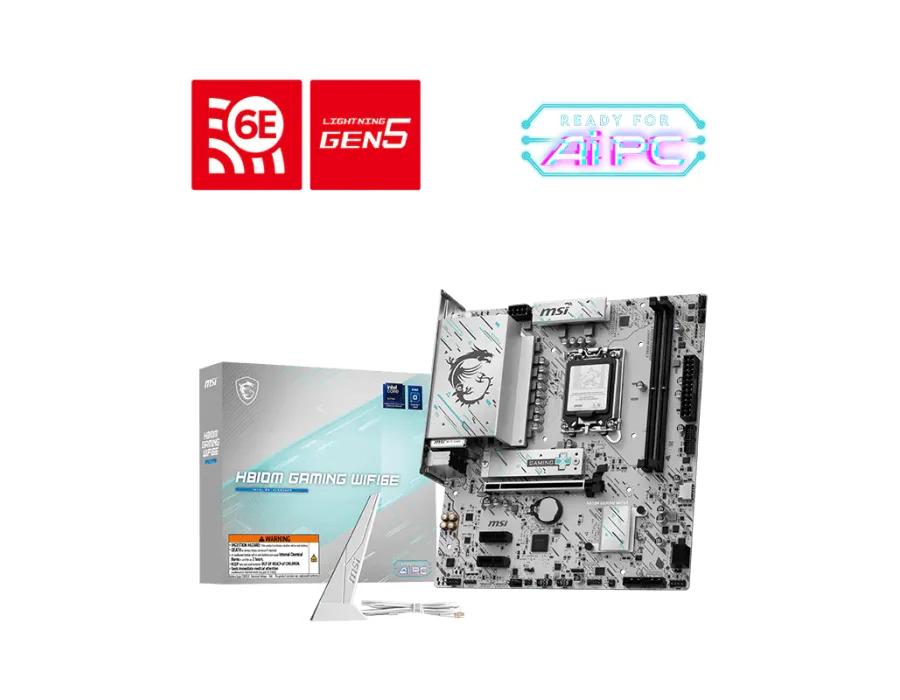

MSI H810M GAMING WIFI6E Model: H810M GAMING WIFI6E Chipset: INTEL H810 CPU: Supports Intel® Core™ Ultra Processors (Series 2)LGA 1851 Memory: 2x DDR5 UDIMM, Maximum Memory Capacity 128GBMemory Support DDR5 7200 - 4800 (JEDEC) MT/sMax. overclocking frequency:; • 1DPC 1R Max speed up to 7200+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; Supports Intel® POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel® XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM; ; • The DIMM slots on this motherboard only have single-sided latches.; • Memory compatibility and supported speeds Onboard Graphics: 1x HDMI™Support HDMI™ 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupport DisplayPort 1.4, maximum resolution of 4K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Slot: 1x PCI-E x16 slot (Qty)2x PCI-E x1 slot (Qty)PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) Audio: Realtek® ALC897 Codec7.1-Channel High Definition Audio Storage: 1x M.2 (Qty)M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G (Qty); *Please refer to the manual for M.2 SSD heatsink restrictions. USB: 4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)1x USB 10Gbps Type C (Front)1x USB 20Gbps Type C (Rear) LAN: Realtek® 8125 2.5Gbps LAN Internal IO: 1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 10Gbps Type C ports WIRELESS LAN & BLUETOOTH: Wi-Fi 6E moduleThe Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth® 5.3, FIPS, FISMA; * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.; ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. LED FEATURE: 4x EZ Debug LED; 1x EZ Memory Detection LED BACK PANEL PORTS: DisplayPort USB 2.0 USB 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth HDMI™ USB 20Gbps (Type-C) USB 2.0 Audio connectors OPERATING SYSTEM: Support for Windows® 11 64-bit PCB Info: mATX220mmx243.84mm
| CPU | Supports Intel® Core™ Ultra Processors (Series 2)LGA 1851 |
|---|---|
| LAN | Realtek® 8125 2.5Gbps LAN |
| USB | 4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)1x USB 10Gbps Type C (Front)1x USB 20Gbps Type C (Rear) |
| Slot | 1x PCI-E x16 slot (Qty)2x PCI-E x1 slot (Qty)PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| Audio | Realtek® ALC897 Codec7.1-Channel High Definition Audio |
| Model | H810M GAMING WIFI6E |
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GBMemory Support DDR5 7200 - 4800 (JEDEC) MT/sMax. overclocking frequency:; • 1DPC 1R Max speed up to 7200+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; Supports Intel® POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel® XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM; ; • The DIMM slots on this motherboard only have single-sided latches.; • Memory compatibility and supported speeds |
| Chipset | INTEL H810 |
| Storage | 1x M.2 (Qty)M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G (Qty); *Please refer to the manual for M.2 SSD heatsink restrictions. |
| PCB Info | mATX220mmx243.84mm |
| Internal IO | 1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 10Gbps Type C ports |
| LED FEATURE | 4x EZ Debug LED; 1x EZ Memory Detection LED |
| BACK PANEL PORTS | DisplayPort USB 2.0 USB 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth HDMI™ USB 20Gbps (Type-C) USB 2.0 Audio connectors |
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
| Onboard Graphics | 1x HDMI™Support HDMI™ 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupport DisplayPort 1.4, maximum resolution of 4K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 6E moduleThe Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth® 5.3, FIPS, FISMA; * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.; ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
