SKU: MSI-328418 · Model: Katana 15 HX B14W
In Stock
Enter your PIN code to find delivery options and a nearby store.

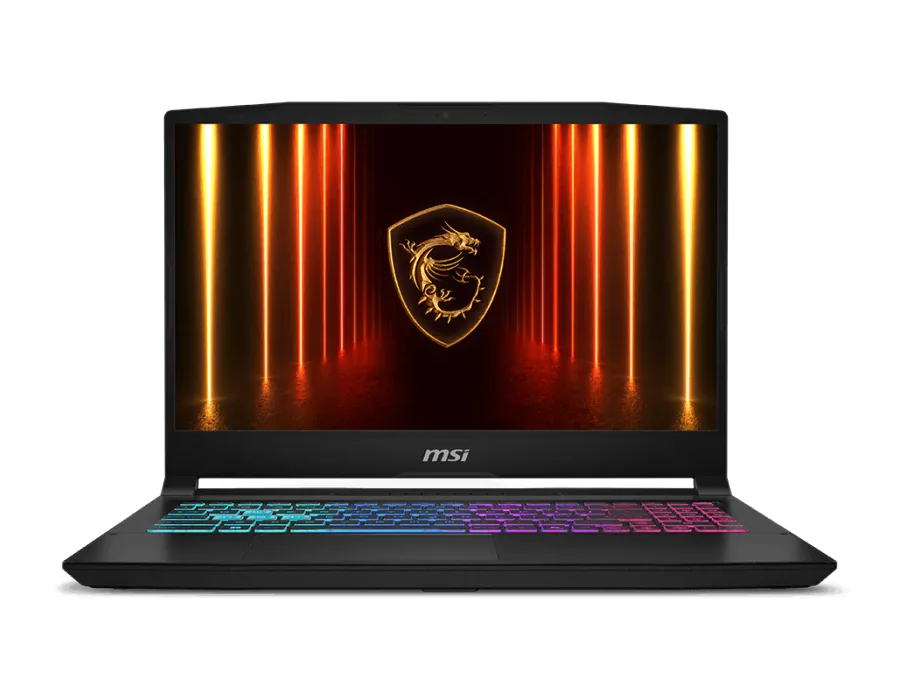

MSI Katana 15 HX B14W Model: Katana 15 HX B14W Show the Differences: Katana 15 HX B14WEK-110IN / Katana 15 HX B14WEK-111IN / Katana 15 HX B14WFK-109IN / Katana 15 HX B14WFK-112IN / Katana 15 HX B14WGK-256IN / Katana 15 HX B14WFK-102IN / Katana 15 HX B14WFK-261IN / Katana 15 HX B14WFK-641IN / Katana 15 HX B14WEK-103IN / Katana 15 HX B14WEK-104IN / Katana 15 HX B14WEK-264IN / Katana 15 HX B14WEK-266IN / Katana 15 HX B14WEK-438IN / Katana 15 HX B14WEK-642IN CPU: Intel® Core™ i7 processor 14650HX; 16 cores (8 P-cores + 8 E-cores), 24 threads, 30 MB Intel® Smart Cache, Max Turbo Frequency 5.2 GHz / Intel® Core™ i7 processor 14650HX; 16 cores (8 P-cores + 8 E-cores), 24 threads, 30 MB Intel® Smart Cache, Max Turbo Frequency 5.2 GHz / Intel® Core™ i7 processor 14650HX; 16 cores (8 P-cores + 8 E-cores), 24 threads, 30 MB Intel® Smart Cache, Max Turbo Frequency 5.2 GHz / Intel® Core™ i9 processor 14900HX; 24 cores (8 P-cores + 16 E-cores), 32 theads, 36 MB In Operating Systems: Windows 11 Home (MSI recommends Windows 11 Pro for business.) / Windows 11 Home (MSI recommends Windows 11 Pro for business.) / Windows 11 Home (MSI recommends Windows 11 Pro for business.) / Windows 11 Home (MSI recommends Windows 11 Pro for business.) / Windows 11 Home (MSI recommends Windows 11 Pro for business.) / Windows 11 Home (MSI recommends Windows 11 Pro for business.) / Windows 11 Home (MSI recommends Windows 11 Pro for business.) / Windows 11 Home (MSI recommends Windows 11 Pro for b Microsoft Office: - / - / - / - / - / - / - / Microsoft 365 Basic + Office Home 2024 included / - / - / - / - / - / Microsoft 365 Basic + Office Home 2024 included Display: 15.6" QHD(2560x1440), 165Hz Refresh Rate, IPS-Level, 100% DCI-P3(Typical) / 15.6" FHD(1920x1080), 144Hz Refresh Rate, IPS-Level / 15.6" QHD(2560x1440), 165Hz Refresh Rate, IPS-Level, 100% DCI-P3(Typical) / 15.6" QHD(2560x1440), 165Hz Refresh Rate, IPS-Level, 100% DCI-P3(Typical) / 15.6" QHD(2560x1440), 165Hz Refresh Rate, IPS-Level, 100% DCI-P3(Typical) / 15.6" QHD(2560x1440), 165Hz Refresh Rate, IPS-Level, 100% DCI-P3(Typical) / 15.6" QHD(2560x1440), 165Hz Refresh Rate, IPS-Level, 100% DCI-P3(T Chipset: Intel® HM770 / Intel® HM770 / Intel® HM770 / Intel® HM770 / Intel® HM770 / Intel® HM770 / Intel® HM770 / Intel® HM770 / Intel® HM770 / Intel® HM770 / Intel® HM770 / Intel® HM770 / Intel® HM770 / Intel® HM770 Discrete Graphics: NVIDIA® GeForce RTX™ 5050 Laptop GPU powers advanced AI; 2662MHzx Up to Boost Clock 115W Maximum Graphics Power with Dynamic Boost. *May vary by scenario / NVIDIA® GeForce RTX™ 5050 Laptop GPU powers advanced AI; 2662MHzx Up to Boost Clock 115W Maximum Graphics Power with Dynamic Boost. *May vary by scenario / NVIDIA® GeForce RTX™ 5060 Laptop GPU powers advanced AI with 572 AI TOPS; 2497MHzx Up to Boost Clock 115W Maximum Graphics Power with Dynamic Boost. *May vary by scenario / NVIDIA® GeForce Video Memory: 8GB GDDR7 / 8GB GDDR7 / 8GB GDDR7 / 8GB GDDR7 / 8GB GDDR7 / 8GB GDDR7 / 8GB GDDR7 / 8GB GDDR7 / 8GB GDDR7 / 8GB GDDR7 / 8GB GDDR7 / 8GB GDDR7 / 8GB GDDR7 / 8GB GDDR7 CPU and GPU Combined Power: *Full Power CPU & GPU / *Full Power CPU & GPU / *Full Power CPU & GPU / *Full Power CPU & GPU / *Full Power CPU & GPU / *Full Power CPU & GPU / *Full Power CPU & GPU / *Full Power CPU & GPU / *Full Power CPU & GPU / *Full Power CPU & GPU / *Full Power CPU & GPU / *Full Power CPU & GPU / *Full Power CPU & GPU / *Full Power CPU & GPU Memory: 16GB*1 DDR5; *The actual frequency will vary by memory combination and CPU capability. / 16GB*1 DDR5; *The actual frequency will vary by memory combination and CPU capability. / 16GB*1 DDR5; *The actual frequency will vary by memory combination and CPU capability. / 16GB*1 DDR5; *The actual frequency will vary by memory combination and CPU capability. / 8GB*2 DDR5; *The actual frequency will vary by memory combination and CPU capability. / 8GB*2 DDR5; *The actual frequency will vary by memory co Memory Slot and Max Capacity: Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Storage: 512GB*1 NVMe SSD PCIe Gen4; / 512GB*1 NVMe SSD PCIe Gen4; / 512GB*1 NVMe SSD PCIe Gen4; / 1TB*1 NVMe SSD PCIe Gen4; / 1TB*1 NVMe SSD PCIe Gen4; / 1TB*1 NVMe SSD PCIe Gen4; / 1TB*1 NVMe SSD PCIe Gen4; / 1TB*1 NVMe SSD PCIe Gen4; / 512GB*1 NVMe SSD PCIe Gen4; / 512GB*1 NVMe SSD PCIe Gen4; / 1TB*1 NVMe SSD PCIe Gen4; / 512GB*1 NVMe SSD PCIe Gen4; / 512GB*1 NVMe SSD PCIe Gen4; / 512GB*1 NVMe SSD PCIe Gen4; Storage Slot: 1x M.2 SSD slot (NVMe PCIe Gen4) / 1x M.2 SSD slot (NVMe PCIe Gen4) / 1x M.2 SSD slot (NVMe PCIe Gen4) / 1x M.2 SSD slot (NVMe PCIe Gen4) / 1x M.2 SSD slot (NVMe PCIe Gen4) / 1x M.2 SSD slot (NVMe PCIe Gen4) / 1x M.2 SSD slot (NVMe PCIe Gen4) / 1x M.2 SSD slot (NVMe PCIe Gen4) / 1x M.2 SSD slot (NVMe PCIe Gen4) / 1x M.2 SSD slot (NVMe PCIe Gen4) / 1x M.2 SSD slot (NVMe PCIe Gen4) / 1x M.2 SSD slot (NVMe PCIe Gen4) / 1x M.2 SSD slot (NVMe PCIe Gen4) / 1x M.2 SSD slot (NVMe PCIe Gen4) Keyboard: 4-Zone RGB Gaming Keyboard with Copilot Key / 4-Zone RGB Gaming Keyboard with Copilot Key / 4-Zone RGB Gaming Keyboard with Copilot Key / 4-Zone RGB Gaming Keyboard with Copilot Key / 4-Zone RGB Gaming Keyboard with Copilot Key / 4-Zone RGB Gaming Keyboard with Copilot Key / 4-Zone RGB Gaming Keyboard with Copilot Key / 4-Zone RGB Gaming Keyboard with Copilot Key / 4-Zone RGB Gaming Keyboard with Copilot Key / 4-Zone RGB Gaming Keyboard with Copilot Key / 4-Zone RGB Gaming Keyboard with Copilot WebCam: HD type (30fps@720p) / HD type (30fps@720p) / HD type (30fps@720p) / HD type (30fps@720p) / HD type (30fps@720p) / HD type (30fps@720p) / HD type (30fps@720p) / HD type (30fps@720p) / HD type (30fps@720p) / HD type (30fps@720p) / HD type (30fps@720p) / HD type (30fps@720p) / HD type (30fps@720p) / HD type (30fps@720p) Audio: 2x 2W Audio Speaker; Hi-Res Audio Ready, Nahimic 3 Audio Enhancer / 2x 2W Audio Speaker; Hi-Res Audio Ready, Nahimic 3 Audio Enhancer / 2x 2W Audio Speaker; Hi-Res Audio Ready, Nahimic 3 Audio Enhancer / 2x 2W Audio Speaker; Hi-Res Audio Ready, Nahimic 3 Audio Enhancer / 2x 2W Audio Speaker; Nahimic 3 Audio Enhancer; Hi-Res Audio Ready / 2x 2W Audio Speaker; Hi-Res Audio Ready, Nahimic 3 Audio Enhancer / 2x 2W Audio Speaker; Nahimic 3 Audio Enhancer; Hi-Res Audio Ready / 2x 2W Audio Speaker; Nah Audio Port: 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone USB Ports: 3x Type-A USB3.2 Gen2; 1x Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0) / 3x Type-A USB3.2 Gen2; 1x Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0) / 3x Type-A USB3.2 Gen2; 1x Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0) / 3x Type-A USB3.2 Gen2; 1x Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0) / 3x Type-A USB3.2 Gen2; 1x Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0) / 3x Type-A USB3.2 Gen2; 1x Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0 Video Ports: 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x HDMI™ 2.1 (8K @ 6 LAN: Gigabit Ethernet / Gigabit Ethernet / Gigabit Ethernet / Gigabit Ethernet / Gigabit Ethernet / Gigabit Ethernet / Gigabit Ethernet / Gigabit Ethernet / Gigabit Ethernet / Gigabit Ethernet / Gigabit Ethernet / Gigabit Ethernet / Gigabit Ethernet / Gigabit Ethernet Wi-Fi/ Bluetooth: Intel® Wi-Fi 6E AX211, Bluetooth v5.4 / Intel® Wi-Fi 6E AX211, Bluetooth v5.4 / Intel® Wi-Fi 6E AX211, Bluetooth v5.4 / Intel® Wi-Fi 6E AX211, Bluetooth v5.4 / Intel® Wi-Fi 6E AX211, Bluetooth v5.4 / Intel® Wi-Fi 6E AX211, Bluetooth v5.4 / Intel® Wi-Fi 6E AX211, Bluetooth v5.4 / Intel® Wi-Fi 6E AX211, Bluetooth v5.4 / Intel® Wi-Fi 6E AX211, Bluetooth v5.4 / Intel® Wi-Fi 6E AX211, Bluetooth v5.4 / Intel® Wi-Fi 6E AX211, Bluetooth v5.4 / Intel® Wi-Fi 6E AX211, Bluetooth v5.4 / Intel® Wi-Fi 6E AX21 Security: Firmware Trusted Platform Module(fTPM) 2.0 / Firmware Trusted Platform Module(fTPM) 2.0 / Firmware Trusted Platform Module(fTPM) 2.0 / Firmware Trusted Platform Module(fTPM) 2.0 / Firmware Trusted Platform Module(fTPM) 2.0 / Firmware Trusted Platform Module(fTPM) 2.0 / Firmware Trusted Platform Module(fTPM) 2.0 / Firmware Trusted Platform Module(fTPM) 2.0 / Firmware Trusted Platform Module(fTPM) 2.0 / Firmware Trusted Platform Module(fTPM) 2.0 / Firmware Trusted Platform Module(fTPM) 2.0 / Firmw Adapter: 240W / 240W / 240W / 240W / 240W / 240W / 240W / 240W / 240W / 240W / 240W / 240W / 240W / 240W Battery: 4-Cell; 75 Whrs / 4-Cell; 75 Whrs / 4-Cell; 75 Whrs / 4-Cell; 75 Whrs / 4-Cell; 75 Whrs / 4-Cell; 75 Whrs / 4-Cell; 75 Whrs / 4-Cell; 75 Whrs / 4-Cell; 75 Whrs / 4-Cell; 75 Whrs / 4-Cell; 75 Whrs / 4-Cell; 75 Whrs / 4-Cell; 75 Whrs / 4-Cell; 75 Whrs Dimension (WXDXH): 359 x 262 x 25.5 mm / 359 x 262 x 25.5 mm / 359 x 262 x 25.5 mm / 359 x 262 x 25.5 mm / 359 x 262 x 25.5 mm / 359 x 262 x 25.5 mm / 359 x 262 x 25.5 mm / 359 x 262 x 25.5 mm / 359 x 262 x 25.5 mm / 359 x 262 x 25.5 mm / 359 x 262 x 25.5 mm / 359 x 262 x 25.5 mm / 359 x 262 x 25.5 mm / 359 x 262 x 25.5 mm Weight (W/ Battery): 2.4 kg / 2.4 kg / 2.4 kg / 2.4 kg / 2.4 kg / 2.4 kg / 2.4 kg / 2.4 kg / 2.4 kg / 2.4 kg / 2.4 kg / 2.4 kg / 2.4 kg / 2.4 kg Chassis Color: - / - / - / - / Black / - / Black / Black / - / - / Black / Black / Black / Black Warranty: 2 years limited warranty / 2 years limited warranty / 2 years limited warranty / 2 years limited warranty / 2 years limited warranty / 2 years limited warranty / 2 years limited warranty / 2 years limited warranty / 2 years limited warranty / 2 years limited warranty / 2 years limited warranty / 2 years limited warranty / 2 years limited warranty / 2 years limited warranty Integrated Graphics: Intel® UHD Graphics Configurations: 14 manufacturer configurations; contact us for the exact configuration and quote. Series: Intel® Core™ processor (14th gen) / GeForce RTX™ 50 Series
| CPU | Intel® Core™ i7 processor 14650HX; 16 cores (8 P-cores + 8 E-cores), 24 threads, 30 MB Intel® Smart Cache, Max Turbo Frequency 5.2 GHz / Intel® Core™ i7 processor 14650HX; 16 cores (8 P-cores + 8 E-cores), 24 threads, 30 MB Intel® Smart Cache, Max Turbo Frequency 5.2 GHz / Intel® Core™ i7 processor 14650HX; 16 cores (8 P-cores + 8 E-cores), 24 threads, 30 MB Intel® Smart Cache, Max Turbo Frequency 5.2 GHz / Intel® Core™ i9 processor 14900HX; 24 cores (8 P-cores + 16 E-cores), 32 theads, 36 MB In |
|---|---|
| LAN | Gigabit Ethernet / Gigabit Ethernet / Gigabit Ethernet / Gigabit Ethernet / Gigabit Ethernet / Gigabit Ethernet / Gigabit Ethernet / Gigabit Ethernet / Gigabit Ethernet / Gigabit Ethernet / Gigabit Ethernet / Gigabit Ethernet / Gigabit Ethernet / Gigabit Ethernet |
| Audio | 2x 2W Audio Speaker; Hi-Res Audio Ready, Nahimic 3 Audio Enhancer / 2x 2W Audio Speaker; Hi-Res Audio Ready, Nahimic 3 Audio Enhancer / 2x 2W Audio Speaker; Hi-Res Audio Ready, Nahimic 3 Audio Enhancer / 2x 2W Audio Speaker; Hi-Res Audio Ready, Nahimic 3 Audio Enhancer / 2x 2W Audio Speaker; Nahimic 3 Audio Enhancer; Hi-Res Audio Ready / 2x 2W Audio Speaker; Hi-Res Audio Ready, Nahimic 3 Audio Enhancer / 2x 2W Audio Speaker; Nahimic 3 Audio Enhancer; Hi-Res Audio Ready / 2x 2W Audio Speaker; Nah |
| Model | Katana 15 HX B14W |
| Memory | 16GB*1 DDR5; *The actual frequency will vary by memory combination and CPU capability. / 16GB*1 DDR5; *The actual frequency will vary by memory combination and CPU capability. / 16GB*1 DDR5; *The actual frequency will vary by memory combination and CPU capability. / 16GB*1 DDR5; *The actual frequency will vary by memory combination and CPU capability. / 8GB*2 DDR5; *The actual frequency will vary by memory combination and CPU capability. / 8GB*2 DDR5; *The actual frequency will vary by memory co |
| Series | Intel® Core™ processor (14th gen) / GeForce RTX™ 50 Series |
| WebCam | HD type (30fps@720p) / HD type (30fps@720p) / HD type (30fps@720p) / HD type (30fps@720p) / HD type (30fps@720p) / HD type (30fps@720p) / HD type (30fps@720p) / HD type (30fps@720p) / HD type (30fps@720p) / HD type (30fps@720p) / HD type (30fps@720p) / HD type (30fps@720p) / HD type (30fps@720p) / HD type (30fps@720p) |
| Adapter | 240W / 240W / 240W / 240W / 240W / 240W / 240W / 240W / 240W / 240W / 240W / 240W / 240W / 240W |
| Battery | 4-Cell; 75 Whrs / 4-Cell; 75 Whrs / 4-Cell; 75 Whrs / 4-Cell; 75 Whrs / 4-Cell; 75 Whrs / 4-Cell; 75 Whrs / 4-Cell; 75 Whrs / 4-Cell; 75 Whrs / 4-Cell; 75 Whrs / 4-Cell; 75 Whrs / 4-Cell; 75 Whrs / 4-Cell; 75 Whrs / 4-Cell; 75 Whrs / 4-Cell; 75 Whrs |
| Chipset | Intel® HM770 / Intel® HM770 / Intel® HM770 / Intel® HM770 / Intel® HM770 / Intel® HM770 / Intel® HM770 / Intel® HM770 / Intel® HM770 / Intel® HM770 / Intel® HM770 / Intel® HM770 / Intel® HM770 / Intel® HM770 |
| Display | 15.6" QHD(2560x1440), 165Hz Refresh Rate, IPS-Level, 100% DCI-P3(Typical) / 15.6" FHD(1920x1080), 144Hz Refresh Rate, IPS-Level / 15.6" QHD(2560x1440), 165Hz Refresh Rate, IPS-Level, 100% DCI-P3(Typical) / 15.6" QHD(2560x1440), 165Hz Refresh Rate, IPS-Level, 100% DCI-P3(Typical) / 15.6" QHD(2560x1440), 165Hz Refresh Rate, IPS-Level, 100% DCI-P3(Typical) / 15.6" QHD(2560x1440), 165Hz Refresh Rate, IPS-Level, 100% DCI-P3(Typical) / 15.6" QHD(2560x1440), 165Hz Refresh Rate, IPS-Level, 100% DCI-P3(T |
| Storage | 512GB*1 NVMe SSD PCIe Gen4; / 512GB*1 NVMe SSD PCIe Gen4; / 512GB*1 NVMe SSD PCIe Gen4; / 1TB*1 NVMe SSD PCIe Gen4; / 1TB*1 NVMe SSD PCIe Gen4; / 1TB*1 NVMe SSD PCIe Gen4; / 1TB*1 NVMe SSD PCIe Gen4; / 1TB*1 NVMe SSD PCIe Gen4; / 512GB*1 NVMe SSD PCIe Gen4; / 512GB*1 NVMe SSD PCIe Gen4; / 1TB*1 NVMe SSD PCIe Gen4; / 512GB*1 NVMe SSD PCIe Gen4; / 512GB*1 NVMe SSD PCIe Gen4; / 512GB*1 NVMe SSD PCIe Gen4; |
| Keyboard | 4-Zone RGB Gaming Keyboard with Copilot Key / 4-Zone RGB Gaming Keyboard with Copilot Key / 4-Zone RGB Gaming Keyboard with Copilot Key / 4-Zone RGB Gaming Keyboard with Copilot Key / 4-Zone RGB Gaming Keyboard with Copilot Key / 4-Zone RGB Gaming Keyboard with Copilot Key / 4-Zone RGB Gaming Keyboard with Copilot Key / 4-Zone RGB Gaming Keyboard with Copilot Key / 4-Zone RGB Gaming Keyboard with Copilot Key / 4-Zone RGB Gaming Keyboard with Copilot Key / 4-Zone RGB Gaming Keyboard with Copilot |
| Security | Firmware Trusted Platform Module(fTPM) 2.0 / Firmware Trusted Platform Module(fTPM) 2.0 / Firmware Trusted Platform Module(fTPM) 2.0 / Firmware Trusted Platform Module(fTPM) 2.0 / Firmware Trusted Platform Module(fTPM) 2.0 / Firmware Trusted Platform Module(fTPM) 2.0 / Firmware Trusted Platform Module(fTPM) 2.0 / Firmware Trusted Platform Module(fTPM) 2.0 / Firmware Trusted Platform Module(fTPM) 2.0 / Firmware Trusted Platform Module(fTPM) 2.0 / Firmware Trusted Platform Module(fTPM) 2.0 / Firmw |
| Warranty | 2 years limited warranty / 2 years limited warranty / 2 years limited warranty / 2 years limited warranty / 2 years limited warranty / 2 years limited warranty / 2 years limited warranty / 2 years limited warranty / 2 years limited warranty / 2 years limited warranty / 2 years limited warranty / 2 years limited warranty / 2 years limited warranty / 2 years limited warranty |
| USB Ports | 3x Type-A USB3.2 Gen2; 1x Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0) / 3x Type-A USB3.2 Gen2; 1x Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0) / 3x Type-A USB3.2 Gen2; 1x Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0) / 3x Type-A USB3.2 Gen2; 1x Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0) / 3x Type-A USB3.2 Gen2; 1x Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0) / 3x Type-A USB3.2 Gen2; 1x Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0 |
| Audio Port | 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone-out Combo Jack / 1x Mic-in/Headphone |
| Video Ports | 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x HDMI™ 2.1 (8K @ 6 |
| Storage Slot | 1x M.2 SSD slot (NVMe PCIe Gen4) / 1x M.2 SSD slot (NVMe PCIe Gen4) / 1x M.2 SSD slot (NVMe PCIe Gen4) / 1x M.2 SSD slot (NVMe PCIe Gen4) / 1x M.2 SSD slot (NVMe PCIe Gen4) / 1x M.2 SSD slot (NVMe PCIe Gen4) / 1x M.2 SSD slot (NVMe PCIe Gen4) / 1x M.2 SSD slot (NVMe PCIe Gen4) / 1x M.2 SSD slot (NVMe PCIe Gen4) / 1x M.2 SSD slot (NVMe PCIe Gen4) / 1x M.2 SSD slot (NVMe PCIe Gen4) / 1x M.2 SSD slot (NVMe PCIe Gen4) / 1x M.2 SSD slot (NVMe PCIe Gen4) / 1x M.2 SSD slot (NVMe PCIe Gen4) |
| Video Memory | 8GB GDDR7 / 8GB GDDR7 / 8GB GDDR7 / 8GB GDDR7 / 8GB GDDR7 / 8GB GDDR7 / 8GB GDDR7 / 8GB GDDR7 / 8GB GDDR7 / 8GB GDDR7 / 8GB GDDR7 / 8GB GDDR7 / 8GB GDDR7 / 8GB GDDR7 |
| Chassis Color | - / - / - / - / Black / - / Black / Black / - / - / Black / Black / Black / Black |
| Configurations | 14 manufacturer configurations; contact us for the exact configuration and quote. |
| Microsoft Office | - / - / - / - / - / - / - / Microsoft 365 Basic + Office Home 2024 included / - / - / - / - / - / Microsoft 365 Basic + Office Home 2024 included |
| Wi-Fi/ Bluetooth | Intel® Wi-Fi 6E AX211, Bluetooth v5.4 / Intel® Wi-Fi 6E AX211, Bluetooth v5.4 / Intel® Wi-Fi 6E AX211, Bluetooth v5.4 / Intel® Wi-Fi 6E AX211, Bluetooth v5.4 / Intel® Wi-Fi 6E AX211, Bluetooth v5.4 / Intel® Wi-Fi 6E AX211, Bluetooth v5.4 / Intel® Wi-Fi 6E AX211, Bluetooth v5.4 / Intel® Wi-Fi 6E AX211, Bluetooth v5.4 / Intel® Wi-Fi 6E AX211, Bluetooth v5.4 / Intel® Wi-Fi 6E AX211, Bluetooth v5.4 / Intel® Wi-Fi 6E AX211, Bluetooth v5.4 / Intel® Wi-Fi 6E AX211, Bluetooth v5.4 / Intel® Wi-Fi 6E AX21 |
| Dimension (WXDXH) | 359 x 262 x 25.5 mm / 359 x 262 x 25.5 mm / 359 x 262 x 25.5 mm / 359 x 262 x 25.5 mm / 359 x 262 x 25.5 mm / 359 x 262 x 25.5 mm / 359 x 262 x 25.5 mm / 359 x 262 x 25.5 mm / 359 x 262 x 25.5 mm / 359 x 262 x 25.5 mm / 359 x 262 x 25.5 mm / 359 x 262 x 25.5 mm / 359 x 262 x 25.5 mm / 359 x 262 x 25.5 mm |
| Discrete Graphics | NVIDIA® GeForce RTX™ 5050 Laptop GPU powers advanced AI; 2662MHzx Up to Boost Clock 115W Maximum Graphics Power with Dynamic Boost. *May vary by scenario / NVIDIA® GeForce RTX™ 5050 Laptop GPU powers advanced AI; 2662MHzx Up to Boost Clock 115W Maximum Graphics Power with Dynamic Boost. *May vary by scenario / NVIDIA® GeForce RTX™ 5060 Laptop GPU powers advanced AI with 572 AI TOPS; 2497MHzx Up to Boost Clock 115W Maximum Graphics Power with Dynamic Boost. *May vary by scenario / NVIDIA® GeForce |
| Operating Systems | Windows 11 Home (MSI recommends Windows 11 Pro for business.) / Windows 11 Home (MSI recommends Windows 11 Pro for business.) / Windows 11 Home (MSI recommends Windows 11 Pro for business.) / Windows 11 Home (MSI recommends Windows 11 Pro for business.) / Windows 11 Home (MSI recommends Windows 11 Pro for business.) / Windows 11 Home (MSI recommends Windows 11 Pro for business.) / Windows 11 Home (MSI recommends Windows 11 Pro for business.) / Windows 11 Home (MSI recommends Windows 11 Pro for b |
| Integrated Graphics | Intel® UHD Graphics |
| Weight (W/ Battery) | 2.4 kg / 2.4 kg / 2.4 kg / 2.4 kg / 2.4 kg / 2.4 kg / 2.4 kg / 2.4 kg / 2.4 kg / 2.4 kg / 2.4 kg / 2.4 kg / 2.4 kg / 2.4 kg |
| Show the Differences | Katana 15 HX B14WEK-110IN / Katana 15 HX B14WEK-111IN / Katana 15 HX B14WFK-109IN / Katana 15 HX B14WFK-112IN / Katana 15 HX B14WGK-256IN / Katana 15 HX B14WFK-102IN / Katana 15 HX B14WFK-261IN / Katana 15 HX B14WFK-641IN / Katana 15 HX B14WEK-103IN / Katana 15 HX B14WEK-104IN / Katana 15 HX B14WEK-264IN / Katana 15 HX B14WEK-266IN / Katana 15 HX B14WEK-438IN / Katana 15 HX B14WEK-642IN |
| CPU and GPU Combined Power | *Full Power CPU & GPU / *Full Power CPU & GPU / *Full Power CPU & GPU / *Full Power CPU & GPU / *Full Power CPU & GPU / *Full Power CPU & GPU / *Full Power CPU & GPU / *Full Power CPU & GPU / *Full Power CPU & GPU / *Full Power CPU & GPU / *Full Power CPU & GPU / *Full Power CPU & GPU / *Full Power CPU & GPU / *Full Power CPU & GPU |
| Memory Slot and Max Capacity | Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 Slots, Max 96GB / Up to DDR5-5600, 2 |
Confirm the supplied items with our team.
Warranty information will be confirmed before purchase.
Module Type SO-DIMM; Memory Slot(Total) 2; Memory Slot(Free) 2; Max Capacity Max 64GB / Module Type SO-DIMM; Memory Slot(Total) 2; Memory Slot(Free) 2; Max Capacity Max 64GB / Module Type SO-DIMM; Memory Slot(Total) 2; Memory Slot(Free) 2; Max Capacity Max 64GB / Memory Size 8GB(8GB*1); Memory Type DDR4 SDRAM; Module Type SO-DIMM; Memory Slot(Total) 2; Memory Slot(Free) 1; Max Capacity Max 64GB / Memory Size 8GB(8GB*1); Memory Type DDR4 SDRAM; Module Type SO-DIMM; Memory Slot(Total) 2; Memory Sl
