SKU: MSI-311784 · Model: MAG B760M MORTAR
In Stock
Enter your PIN code to find delivery options and a nearby store.

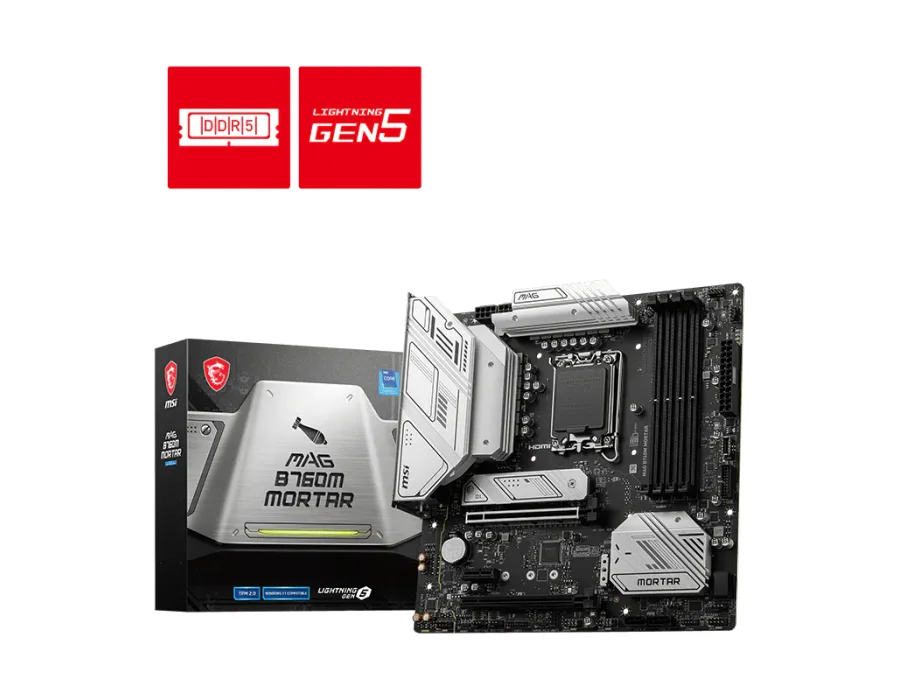

MSI MAG B760M MORTAR Model: MAG B760M MORTAR Chipset: INTEL B760; CPU: Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors; LGA1700; Memory: 4x DDR5, Maximum Memory Capacity 256GB; Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7200+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile; Onboard Graphics: 1x HDMI™; Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DP 1.4, maximum resolution of 4K 60Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.; Slot: 2x PCI-E x16 slot (Qty); Supports x16/x4; 1x PCI-E x1 slot (Qty); PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) ; PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) ; PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) ; Audio: Realtek® ALC897 Codec; 7.1-Channel High Performance Audio; Supports S/PDIF output; Storage: 2x M.2 (Qty); M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices ; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices ; 4x SATA 6G (Qty); RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; USB: 4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Front); 3x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Front); 1x USB 20Gbps Type C (Rear); LAN: Realtek® 2.5Gbps LAN; Internal IO: 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 4x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Tuning Controller connector(JDASH); 2x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports; LED FEATURE: 4x EZ Debug LED; OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit; PCB Info: mATX; 243.84mmx243.84mm;
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors; LGA1700; |
|---|---|
| LAN | Realtek® 2.5Gbps LAN; |
| USB | 4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Front); 3x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Front); 1x USB 20Gbps Type C (Rear); |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; |
| Slot | 2x PCI-E x16 slot (Qty); Supports x16/x4; 1x PCI-E x1 slot (Qty); PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) ; PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) ; PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) ; |
| Audio | Realtek® ALC897 Codec; 7.1-Channel High Performance Audio; Supports S/PDIF output; |
| Model | MAG B760M MORTAR |
| Memory | 4x DDR5, Maximum Memory Capacity 256GB; Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7200+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile; |
| Chipset | INTEL B760; |
| Storage | 2x M.2 (Qty); M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices ; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices ; 4x SATA 6G (Qty); |
| PCB Info | mATX; 243.84mmx243.84mm; |
| Internal IO | 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 4x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Tuning Controller connector(JDASH); 2x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports; |
| LED FEATURE | 4x EZ Debug LED; |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit; |
| Onboard Graphics | 1x HDMI™; Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DP 1.4, maximum resolution of 4K 60Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.; |
