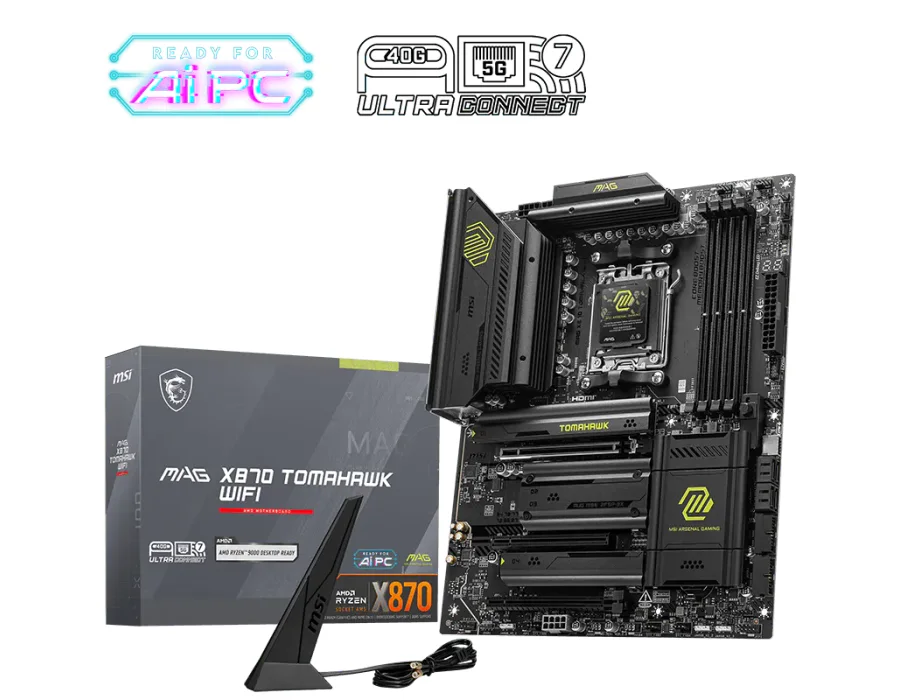

MSI MAG X870 TOMAHAWK WIFI

MSI MAG X870 TOMAHAWK WIFI Model: MAG X870 TOMAHAWK WIFI Chipset: AMD X870; CPU: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5; Memory: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB; Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking frequency:; • 1DPC 1R Max speed up to 8400+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 6400+ MT/s; ; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPO™; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clo Onboard Graphics: 1x HDMI™; Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*; 2x Type-C DisplayPort; USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.; Slot: 3x PCI-E x16 slot (Qty); PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) ; PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) ; PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) ; ; PCI_E1 slot; • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors); • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors); • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor); ; *PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PC Audio: Realtek® ALC4080 Codec; 7.1-Channel USB High Performance Audio; Supports up to 32-bit/384kHz playback on front panel; Supports S/PDIF output; Storage: 4x M.2 (Qty); M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices ; M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices ; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices ; M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices ; 4x SATA 6G (Qty); ; M2_1 & M2_2 slots; • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) ; • Supports up to PCIe 4.0 x4 (For Ryz Multi-GPU: AMD MULTI-GPU Support; RAID: •Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices; ; *RAID 5 configuration is only supported by Ryzen™ 9000 series processors.; *RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors.; USB: 4x USB 2.0 (Rear); 4x USB 2.0 (Front); 3x USB 5Gbps Type A (Rear); 4x USB 5Gbps Type A (Front); 2x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Rear); 1x USB 20Gbps Type C (Front); 2x USB 40Gbps Type C (Rear); LAN: Realtek® 8126-CG 5G LAN; Internal IO: 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 8pin); 1x CPU Fan; 1x PUMP_SYS Fan; 6x System Fan; 1x ARGB+FAN+USB2.0 Header (JAF_2); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 4x USB 5Gbps Type A ports; 1x USB 20Gbps Type C ports; WIRELESS LAN & BLUETOOTH: Wi-Fi 7; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; ; Supports Bluetooth® 5.4**, MLO, 4KQAM; ; * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.; ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.; LED FEATURE: 4x EZ Debug LED; 1x EZ Digit Debug LED; OPERATING SYSTEM: Support for Windows® 11 64-bit; PCB Info: ATX; 304.8mmx243.84mm;

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
