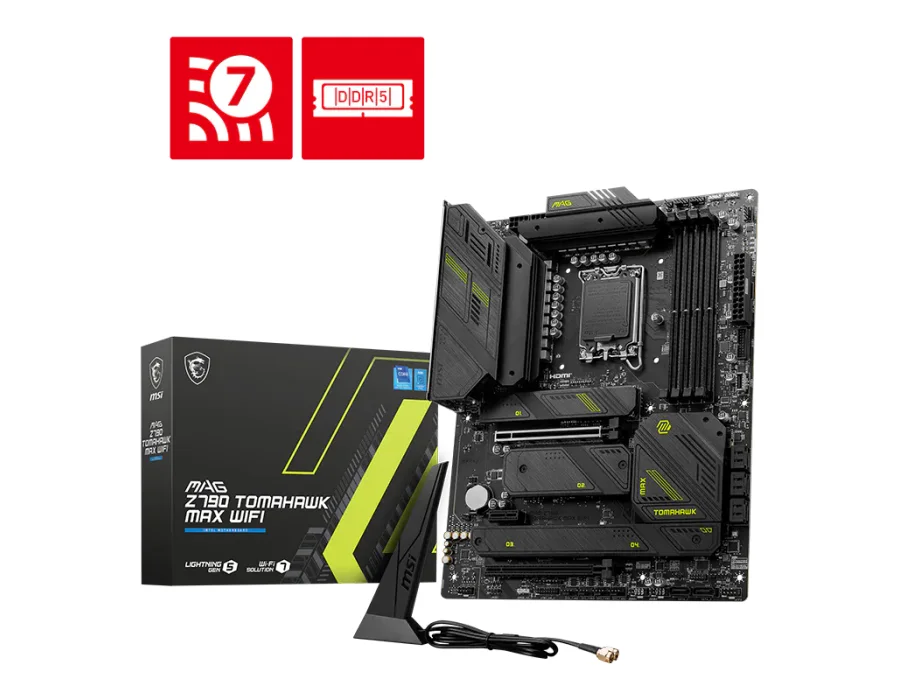

MSI MAG Z790 TOMAHAWK MAX WIFI

MSI MAG Z790 TOMAHAWK MAX WIFI Model: MAG Z790 TOMAHAWK MAX WIFI Chipset: INTEL Z790; CPU: Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors; LGA 1700; Memory: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB; Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7800+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; ; Supports Intel® XMP3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports Onboard Graphics: 1x HDMI™; Support HDMI™ 2.1, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DP 1.4, maximum resolution of 8K 60Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.; Slot: 2x PCI-E x16 slot (Qty); 1x PCI-E x1 slot (Qty); PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) ; PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) ; PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) ; Audio: Realtek® ALC4080 Codec; 7.1-Channel USB High Performance Audio; Supports up to 32-Bit/384 kHz playback on front panel; Storage: 4x M.2 (Qty); M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices ; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices ; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices ; M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices ; 8x SATA 6G (Qty); *PCI_E1 slot will be Gen5x8 when installing M.2 SSD in the M2_1 slot.; *SATA_1 & SATA_2 will be unava RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices; *SATA_A1_A2 do not support RAID function.; USB: 4x USB 2.0 (Front); 4x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 4x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Rear); 1x USB 10Gbps Type C (Front); 1x USB 20Gbps Type C (Rear); LAN: Intel® 2.5Gbps LAN; Internal IO: 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 6x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Tuning Controller connector(JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 1x USB4 card connector (JTBT_U4_1, supports RTD3); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports; WIRELESS LAN & BLUETOOTH: Wi-Fi 7; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; ; Supports Bluetooth® 5.4**, MLO, 4KQAM ; ; * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.; ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan LED FEATURE: 4x EZ Debug LED; ; OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit; PCB Info: ATX; 243.84mmx304.8mm;

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
