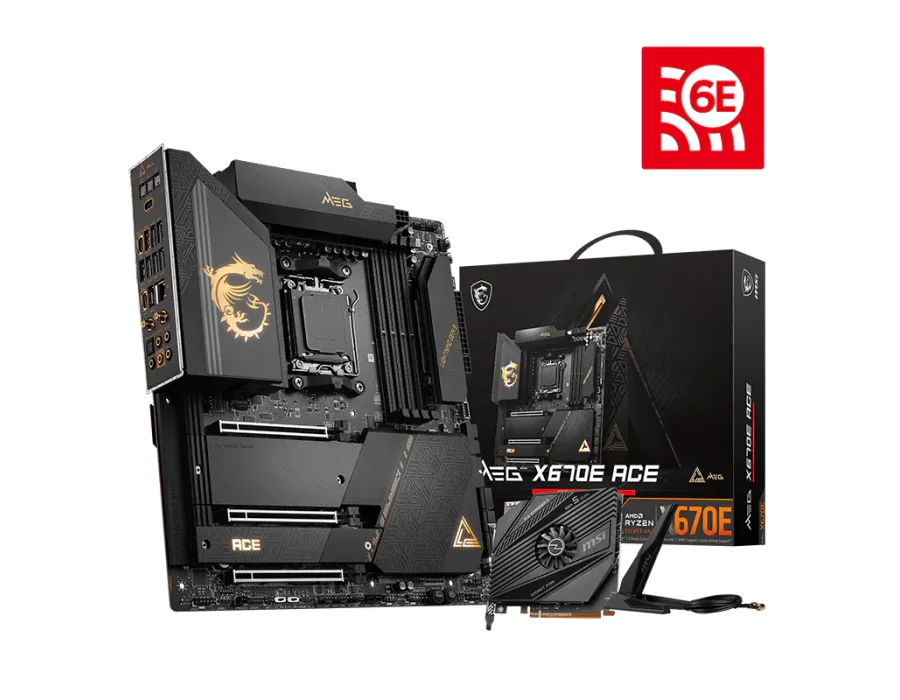

MSI MEG X670E ACE

MSI MEG X670E ACE Model: MEG X670E ACE Chipset: AMD X670; CPU: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5; Memory: 4x DDR5, Maximum Memory Capacity 256GB; Memory Support DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 8000+ MHz; • 1DPC 2R Max speed up to 6400+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5400+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports AMD EXP Onboard Graphics: 1x Type-C DisplayPort; Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.; 1x Type-C Display port; Slot: 3x PCI-E x16 slot (Qty); • Supports x16/x0/x4 or x8/x8/x4 (For Ryzen™ 9000/ 7000 Series processors); • Supports x8/x0/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors); • Supports x4/x0/x2 (For Ryzen™ 8500/ 8300 Series processors); PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) ; PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) ; PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU) ; ; * This rear USB 3.2 Gen 2x2 20Gbps Type-C port and PCI_E3 slot share the same bandwidth. When installing a devi Audio: Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA; 7.1-Channel USB High Performance Audio; Supports S/PDIF output; Supports up to 32-Bit/384 kHz playback on front panel; Storage: 4x M.2 (Qty); M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices ; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices ; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices ; M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices ; 6x SATA 6G (Qty); Multi-GPU: AMD MULTI-GPU Support; RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices; ; *SATA_A1~A2 do not support RAID function.; **RAID 5 configuration is only supported by Ryzen™ 9000 series processors.; ***RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors.; USB: 4x USB 2.0 (Front); 4x USB 5Gbps Type A (Front); 8x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Rear); 1x USB 10Gbps Type C (Front); 2x USB 20Gbps Type C (Rear); 1x USB 20Gbps Type C (Front); LAN: Marvell® AQC113CS-B1-C 10Gbps LAN; Internal IO: 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Front Type-C Quick Charge Connector(PD_PWR1); 1x CPU Fan; 2x Pump Fan; 5x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Water Flow connector; 1x Slow Mode Booting Jumper(JSLOW); 1x Front Audio (JAUD); 2x Thermal Sensor connectors(T_SEN); 1x Tuning Controller connector(JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); V-check point; 4x USB 2.0 ports WIRELESS LAN & BLUETOOTH: AMD Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX; Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands ; Supports 802.11 a/ b/ g/ n/ ac/ ax; ; Supports Bluetooth® 5.3**; ; * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.; ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.; LED FEATURE: 1x EZ LED Control switch; 4x EZ Debug LED; 1x 2-Digit Debug Code LED; OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit; PCB Info: E-ATX; 277mmx304.8mm;

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
