SKU: MSI-336457 · Model: MEG X870E ACE MAX
In Stock
Enter your PIN code to find delivery options and a nearby store.

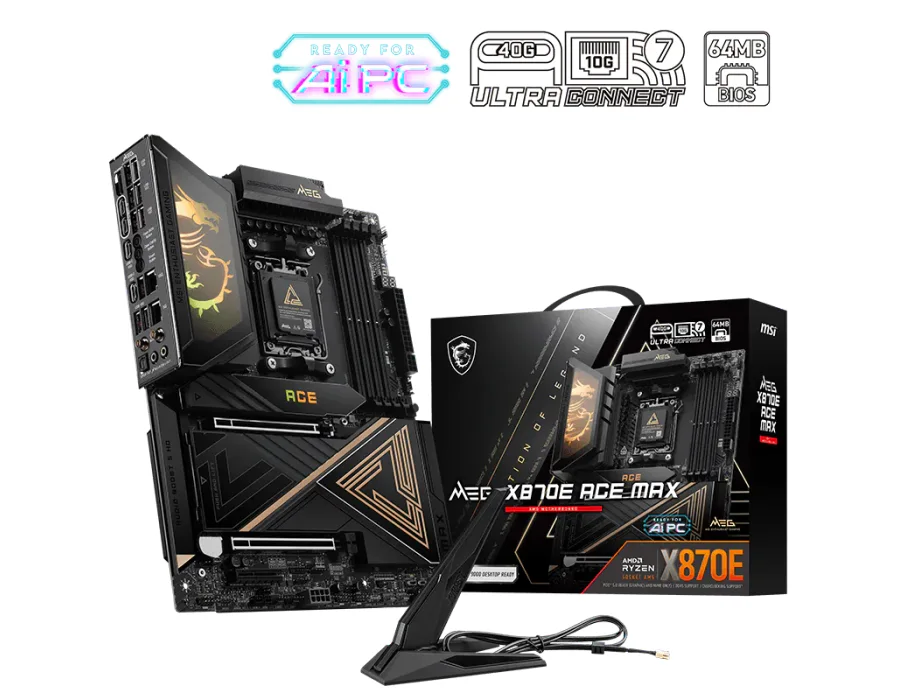

MSI MEG X870E ACE MAX Model: MEG X870E ACE MAX Chipset: AMD X870E; CPU: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5; Memory: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB; Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking:; • 1DPC 1R Max speed up to 8400+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 6400+ MT/s; ; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPO™; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver Onboard Graphics: 1x HDMI™; Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*; 2x Type-C DisplayPort; USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@120Hz*; * Available only on processors featuring integrated graphics.; ** Graphics specifications may vary depending on the CPU installed.; Slot: 2x PCI-E x16 slot (Qty); 1x PCI-E x4 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) ; PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) ; PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU) ; ; PCI_E1 & PCI_E2 slots; • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™ 9000/ 7000 Series processors); • Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors); • Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors); ; * PCI_E3 & M.2_1 share the band Audio: Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA; 7.1-Channel USB High-Performance Audio; Supports S/PDIF output; Supports up to 32-Bit/384 kHz playback on front panel; Storage: 5x M.2 (Qty); M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices ; M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices ; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices ; M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices ; M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices ; 4x SATA 6G (Qty); ; M.2_1:; • Supports up to PCIe 5.0 x4 (For Ryzen™ RAID: Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices; Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices; ; *RAID 5/ 10 configuration is only supported by Ryzen™ 9000/ 7000 series processors.; USB: 4x USB 2.0 (Front); 4x USB 5Gbps Type A (Front); 9x USB 10Gbps Type A (Rear); 2x USB 10Gbps Type C (Rear); 1x USB 20Gbps Type C (Front); 2x USB 40Gbps Type C (Rear); ; * USB 40Gbps Type-C ports on the back panel only run PCIe 4.0 x2 when install Ryzen™ 8500/ 8300 Series processors.; * USB 40Gbps Type-C ports & M2_2 share the bandwidth. USB 40Gbps Type-C ports will run at x2 speed when installing device in the M2_2 slot. You can switch M.2_2 to x4 in the BIOS, but this will disable the USB 40Gbps LAN: 1x Marvell® AQC113CS 10Gbps LAN; 1x Realtek® 8126 5Gbps LAN; Internal IO: 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 8pin); 1x Front Type-C Quick Charge Connector(PD_PWR1); 1x CPU Fan; 2x PUMP_SYS Fan; 5x System Fan; 1x ARGB+FAN+USB2.0 Header (JAF_2); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Water Flow connector; 1x Front Audio (JAUD); 2x Thermal Sensor connectors(T_SEN); 1x Tuning Controller connector(JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM WIRELESS LAN & BLUETOOTH: Wi-Fi 7 Solution; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; ; Supports Bluetooth® 5.4**, MLO, 4KQAM; ; * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.; ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 1 LED FEATURE: 1x EZ Digi-Debug LED; 4x EZ Debug LED; 1x EZ Memory Detection LED; 1x EZ LED Control switch; OPERATING SYSTEM: Support for Windows® 11 64-bit; PCB Info: ATX; 243.84mmx304.8mm;
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5; |
|---|---|
| LAN | 1x Marvell® AQC113CS 10Gbps LAN; 1x Realtek® 8126 5Gbps LAN; |
| USB | 4x USB 2.0 (Front); 4x USB 5Gbps Type A (Front); 9x USB 10Gbps Type A (Rear); 2x USB 10Gbps Type C (Rear); 1x USB 20Gbps Type C (Front); 2x USB 40Gbps Type C (Rear); ; * USB 40Gbps Type-C ports on the back panel only run PCIe 4.0 x2 when install Ryzen™ 8500/ 8300 Series processors.; * USB 40Gbps Type-C ports & M2_2 share the bandwidth. USB 40Gbps Type-C ports will run at x2 speed when installing device in the M2_2 slot. You can switch M.2_2 to x4 in the BIOS, but this will disable the USB 40Gbps |
| RAID | Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices; Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices; ; *RAID 5/ 10 configuration is only supported by Ryzen™ 9000/ 7000 series processors.; |
| Slot | 2x PCI-E x16 slot (Qty); 1x PCI-E x4 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) ; PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) ; PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU) ; ; PCI_E1 & PCI_E2 slots; • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™ 9000/ 7000 Series processors); • Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors); • Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors); ; * PCI_E3 & M.2_1 share the band |
| Audio | Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA; 7.1-Channel USB High-Performance Audio; Supports S/PDIF output; Supports up to 32-Bit/384 kHz playback on front panel; |
| Model | MEG X870E ACE MAX |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB; Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking:; • 1DPC 1R Max speed up to 8400+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 6400+ MT/s; ; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPO™; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver |
| Chipset | AMD X870E; |
| Storage | 5x M.2 (Qty); M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices ; M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices ; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices ; M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices ; M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices ; 4x SATA 6G (Qty); ; M.2_1:; • Supports up to PCIe 5.0 x4 (For Ryzen™ |
| PCB Info | ATX; 243.84mmx304.8mm; |
| Internal IO | 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 8pin); 1x Front Type-C Quick Charge Connector(PD_PWR1); 1x CPU Fan; 2x PUMP_SYS Fan; 5x System Fan; 1x ARGB+FAN+USB2.0 Header (JAF_2); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Water Flow connector; 1x Front Audio (JAUD); 2x Thermal Sensor connectors(T_SEN); 1x Tuning Controller connector(JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM |
| LED FEATURE | 1x EZ Digi-Debug LED; 4x EZ Debug LED; 1x EZ Memory Detection LED; 1x EZ LED Control switch; |
| OPERATING SYSTEM | Support for Windows® 11 64-bit; |
| Onboard Graphics | 1x HDMI™; Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*; 2x Type-C DisplayPort; USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@120Hz*; * Available only on processors featuring integrated graphics.; ** Graphics specifications may vary depending on the CPU installed.; |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 7 Solution; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; ; Supports Bluetooth® 5.4**, MLO, 4KQAM; ; * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.; ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 1 |
