SKU: MSI-317992 · Model: MEG Z890 UNIFY-X
In Stock
Enter your PIN code to find delivery options and a nearby store.

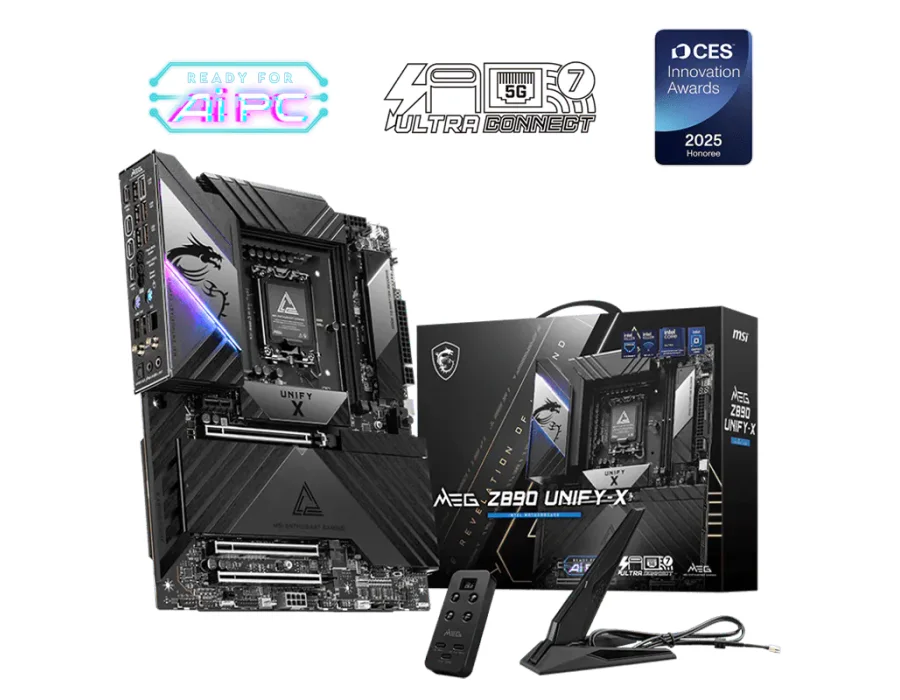

MSI MEG Z890 UNIFY-X Model: MEG Z890 UNIFY-X Chipset: INTEL Z890; CPU: Supports Intel® Core™ Ultra Processors (Series 2); LGA 1851; Memory: 2x DDR5 UDIMM, Maximum Memory Capacity 128GB; Memory Support 9600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; Max. overclocking:; • 1DPC 1R Max speed up to 9600+ MT/s; • 1DPC 2R Max speed up to 7200+ MT/s; ; Supports Intel® POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel® XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM; ; * The DIMM slots on this motherboard only have single-sided latches.; ** Memory compatibility and Onboard Graphics: 2x Type-C DisplayPort; Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*; ; * Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.; Slot: 3x PCI-E x16 slot (Qty); 1x PCI-E x1 slot (Qty); PCI_E1 Gen PCIe 4.0 supports up to x1 (From Chipset) ; PCI_E2 Gen PCIe 5.0 supports up to x16 (From CPU) ; PCI_E3 Gen PCIe 5.0 supports up to x8 (From CPU) ; PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) ; ; * PCI_E2 slot will run at x8 speed and PCI_E3 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in M2_4 slot.; ** PCI_E4 will be unavailable when installing M.2 SSD in the M2_3 slot.; Audio: Realtek® ALC4080 Codec; 7.1-Channel USB High-Performance Audio; Supports S/PDIF output; Supports up to 32-Bit/384 kHz playback on front panel; Storage: 6x M.2 (Qty); M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices ; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices ; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices ; M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280/2260 devices ; M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices ; M.2_6 Source (From CPU) s RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices; Onboard Thunderbolt: 2x Thunderbolt4 ports (Rear); Support up to 40Gbps transfer rate with Thunderbolt devices; Support up to 20Gbps transfer rate with USB4 devices; Support up to 10Gbps transfer rate with USB 3.2 devices; Support up to 5V/3A,15W power charging; Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices; Support up to 8K display; USB: 4x USB 2.0 (Front); 4x USB 5Gbps Type A (Front); 8x USB 10Gbps Type A (Rear); 2x USB 10Gbps Type C (Rear); 1x USB 20Gbps Type C (Front); * To achieve USB PD 60W fast charging for JUSBC1, the PD_PWR1 connector needs to be connected to the power supply unit.; LAN: 1x Intel® Killer E5000B 5G LAN; Internal IO: 1x Thunderbolt5 card connector(JTBT5, support RTD3); 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 8pin); 1x Front Type-C Quick Charge Connector(PD_PWR1); 1x CPU Fan; 2x PUMP_SYS Fan; 4x System Fan; 1x ARGB+FAN+USB2.0 Header (JAF_2); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Water Flow connector; 1x Slow Mode Booting Jumper(JSLOW); 1x Front Audio (JAUD); 2x Thermal Sensor connectors(T_SEN); 1x Tuning Controller connector(JDASH); 3x Addressable V WIRELESS LAN & BLUETOOTH: Intel® Killer™ BE1750x Wi-Fi 7; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; ; Supports Bluetooth® 5.4**, MLO, 4KQAM; ; * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.; ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in LED FEATURE: 1x EZ Digi-Debug LED; 4x EZ Debug LED; 1x EZ Memory Detection LED; OPERATING SYSTEM: Support for Windows® 11 64-bit; PCB Info: ATX; 243.84mmx304.8mm;
| CPU | Supports Intel® Core™ Ultra Processors (Series 2); LGA 1851; |
|---|---|
| LAN | 1x Intel® Killer E5000B 5G LAN; |
| USB | 4x USB 2.0 (Front); 4x USB 5Gbps Type A (Front); 8x USB 10Gbps Type A (Rear); 2x USB 10Gbps Type C (Rear); 1x USB 20Gbps Type C (Front); * To achieve USB PD 60W fast charging for JUSBC1, the PD_PWR1 connector needs to be connected to the power supply unit.; |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices; |
| Slot | 3x PCI-E x16 slot (Qty); 1x PCI-E x1 slot (Qty); PCI_E1 Gen PCIe 4.0 supports up to x1 (From Chipset) ; PCI_E2 Gen PCIe 5.0 supports up to x16 (From CPU) ; PCI_E3 Gen PCIe 5.0 supports up to x8 (From CPU) ; PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) ; ; * PCI_E2 slot will run at x8 speed and PCI_E3 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in M2_4 slot.; ** PCI_E4 will be unavailable when installing M.2 SSD in the M2_3 slot.; |
| Audio | Realtek® ALC4080 Codec; 7.1-Channel USB High-Performance Audio; Supports S/PDIF output; Supports up to 32-Bit/384 kHz playback on front panel; |
| Model | MEG Z890 UNIFY-X |
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB; Memory Support 9600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; Max. overclocking:; • 1DPC 1R Max speed up to 9600+ MT/s; • 1DPC 2R Max speed up to 7200+ MT/s; ; Supports Intel® POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel® XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM; ; * The DIMM slots on this motherboard only have single-sided latches.; ** Memory compatibility and |
| Chipset | INTEL Z890; |
| Storage | 6x M.2 (Qty); M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices ; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices ; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices ; M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280/2260 devices ; M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices ; M.2_6 Source (From CPU) s |
| PCB Info | ATX; 243.84mmx304.8mm; |
| Internal IO | 1x Thunderbolt5 card connector(JTBT5, support RTD3); 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 8pin); 1x Front Type-C Quick Charge Connector(PD_PWR1); 1x CPU Fan; 2x PUMP_SYS Fan; 4x System Fan; 1x ARGB+FAN+USB2.0 Header (JAF_2); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Water Flow connector; 1x Slow Mode Booting Jumper(JSLOW); 1x Front Audio (JAUD); 2x Thermal Sensor connectors(T_SEN); 1x Tuning Controller connector(JDASH); 3x Addressable V |
| LED FEATURE | 1x EZ Digi-Debug LED; 4x EZ Debug LED; 1x EZ Memory Detection LED; |
| OPERATING SYSTEM | Support for Windows® 11 64-bit; |
| Onboard Graphics | 2x Type-C DisplayPort; Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*; ; * Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.; |
| Onboard Thunderbolt | 2x Thunderbolt4 ports (Rear); Support up to 40Gbps transfer rate with Thunderbolt devices; Support up to 20Gbps transfer rate with USB4 devices; Support up to 10Gbps transfer rate with USB 3.2 devices; Support up to 5V/3A,15W power charging; Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices; Support up to 8K display; |
| WIRELESS LAN & BLUETOOTH | Intel® Killer™ BE1750x Wi-Fi 7; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; ; Supports Bluetooth® 5.4**, MLO, 4KQAM; ; * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.; ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in |
