SKU: MSI-310654 · Model: MPG B760I EDGE WIFI DDR4
In Stock
Enter your PIN code to find delivery options and a nearby store.

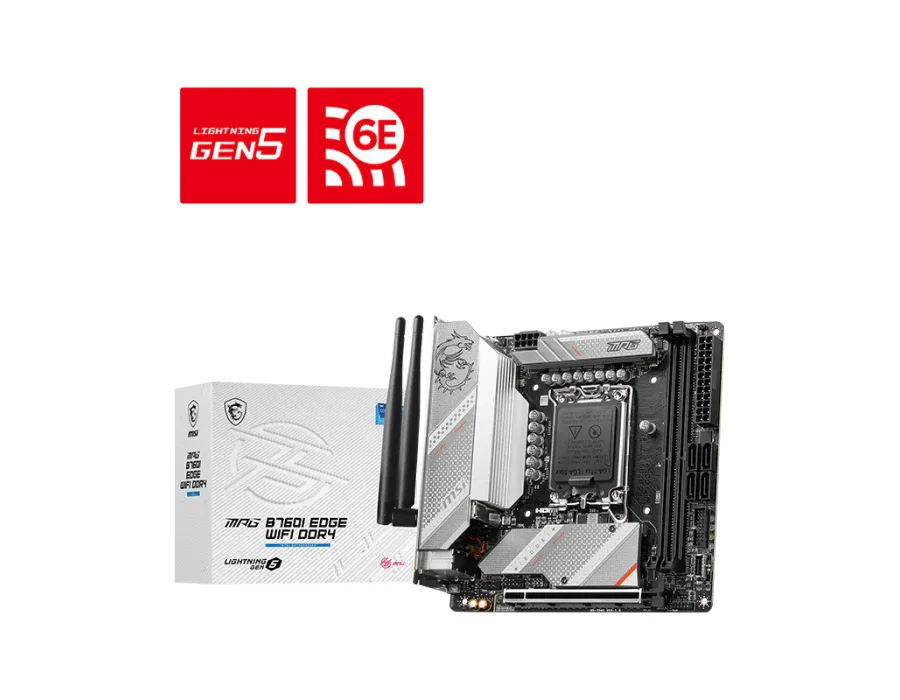

MSI MPG B760I EDGE WIFI DDR4 Model: MPG B760I EDGE WIFI DDR4 Chipset: INTEL B760; CPU: Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors; LGA 1700; Memory: 2x DDR4, Maximum Memory Capacity 64GB; Memory Support 5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133(By JEDCE & POR); Max. overclocking frequency:; • 1DPC 1R Max speed up to 5333+ MHz; • 1DPC 2R Max speed up to 4800+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile (XMP); Onboard Graphics: 1x HDMI™; Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DP 1.4, maximum resolution of 8K 60Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.; Slot: 1x PCI-E x16 slot (Qty); PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) ; Audio: Realtek® ALC897 Codec; 7.1-Channel High Performance Audio; Storage: 2x M.2 (Qty); M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices ; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices ; 4x SATA 6G (Qty); RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; USB: 2x USB 2.0 (Rear); 2x USB 2.0 (Front); 4x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 1x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Rear); 1x USB 10Gbps Type C (Front); LAN: Realtek® RTL8125BG 2.5Gbps LAN; Internal IO: 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 1x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 2x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports; WIRELESS LAN & BLUETOOTH: Intel® Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; ; Supports Bluetooth® 5.3**, FIPS, FISMA; ; * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.; ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.; LED FEATURE: 4x EZ Debug LED; OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit; PCB Info: Mini-ITX; 170mmx170mm;
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors; LGA 1700; |
|---|---|
| LAN | Realtek® RTL8125BG 2.5Gbps LAN; |
| USB | 2x USB 2.0 (Rear); 2x USB 2.0 (Front); 4x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 1x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Rear); 1x USB 10Gbps Type C (Front); |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; |
| Slot | 1x PCI-E x16 slot (Qty); PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) ; |
| Audio | Realtek® ALC897 Codec; 7.1-Channel High Performance Audio; |
| Model | MPG B760I EDGE WIFI DDR4 |
| Memory | 2x DDR4, Maximum Memory Capacity 64GB; Memory Support 5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133(By JEDCE & POR); Max. overclocking frequency:; • 1DPC 1R Max speed up to 5333+ MHz; • 1DPC 2R Max speed up to 4800+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile (XMP); |
| Chipset | INTEL B760; |
| Storage | 2x M.2 (Qty); M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices ; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices ; 4x SATA 6G (Qty); |
| PCB Info | Mini-ITX; 170mmx170mm; |
| Internal IO | 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 1x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 2x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports; |
| LED FEATURE | 4x EZ Debug LED; |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit; |
| Onboard Graphics | 1x HDMI™; Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DP 1.4, maximum resolution of 8K 60Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.; |
| WIRELESS LAN & BLUETOOTH | Intel® Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; ; Supports Bluetooth® 5.3**, FIPS, FISMA; ; * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.; ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.; |
