SKU: MSI-331643 · Model: MPG B850I EDGE TI WIFI
In Stock
Enter your PIN code to find delivery options and a nearby store.

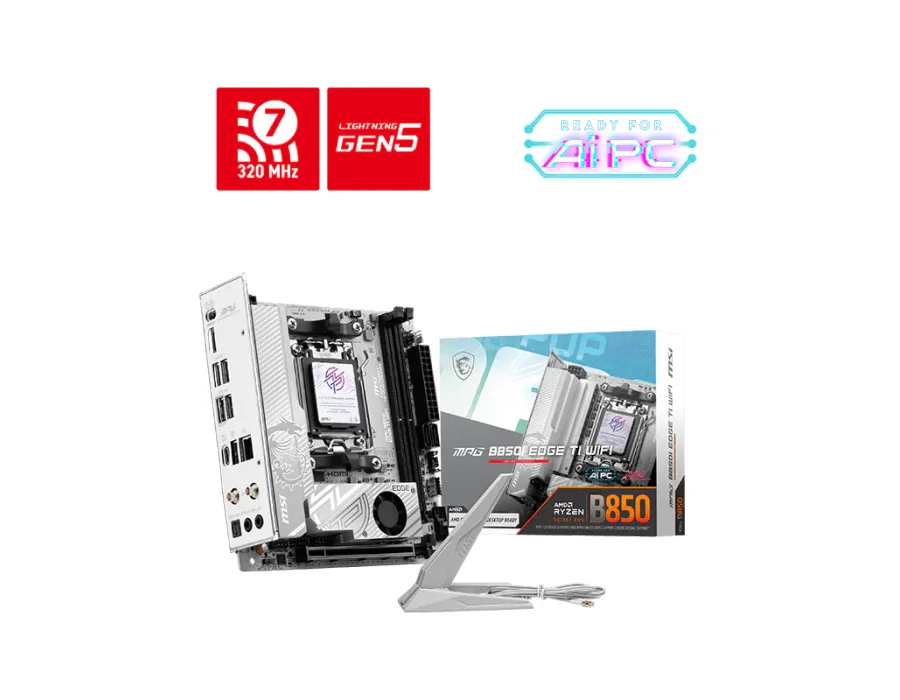

MSI MPG B850I EDGE TI WIFI Model: MPG B850I EDGE TI WIFI Chipset: AMD B850; CPU: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5; Memory: 2x DDR5 UDIMM, Maximum Memory Capacity 128GB; Memory Support DDR5 10000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking:; • 1DPC 1R Max speed up to 8200+ MT/s; • 1DPC 2R Max speed up to 8000+ MT/s; ; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only*; ; * CUDIMM support and POR boot frequency may vary by C Onboard Graphics: 1x HDMI™; Support HDMITM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.; Slot: 1x PCI-E x16 slot (Qty); PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) ; ; PCI_E1 slot; • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors); • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors); • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor); Audio: Realtek® ALC4080 Codec; 7.1-Channel USB High-Performance Audio; Supports up to 32-Bit/384 kHz playback on front panel; Supports S/PDIF output; Storage: 2x M.2 (Qty); M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices ; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices ; 2x SATA 6G (Qty); ; M.2_1 slot; • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors); • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors); ; M.2_2 slot; • Supports up to PCIe 4.0 x4; • Supports 2280 storage devices; RAID: • Supports RAID 0, and RAID 1 for SATA storage devices; • Supports RAID 0, and RAID 1 for M.2 NVMe storage devices; USB: 2x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 3x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Front); 1x USB 20Gbps Type C (Rear); LAN: 1x Realtek® 8126 5G LAN; ; Internal IO: 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 1x PUMP_SYS Fan; 1x System Fan; 1x ARGB+FAN+USB2.0 Header (JAF_2); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Addressable V2 RGB LED connector (JARGB_V2); 1x TPM pin header(Support TPM 2.0); 2x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports; WIRELESS LAN & BLUETOOTH: Wi-Fi 7; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; ; Supports Bluetooth® 5.4**, MLO, 4KQAM; ; * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.; ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.; LED FEATURE: 4x EZ Debug LED; 1x EZ Memory Detection LED; OPERATING SYSTEM: Support for Windows® 11 64-bit; PCB Info: Mini-ITX; 170mmx170mm;
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5; |
|---|---|
| LAN | 1x Realtek® 8126 5G LAN; ; |
| USB | 2x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 3x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Front); 1x USB 20Gbps Type C (Rear); |
| RAID | • Supports RAID 0, and RAID 1 for SATA storage devices; • Supports RAID 0, and RAID 1 for M.2 NVMe storage devices; |
| Slot | 1x PCI-E x16 slot (Qty); PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) ; ; PCI_E1 slot; • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors); • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors); • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor); |
| Audio | Realtek® ALC4080 Codec; 7.1-Channel USB High-Performance Audio; Supports up to 32-Bit/384 kHz playback on front panel; Supports S/PDIF output; |
| Model | MPG B850I EDGE TI WIFI |
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB; Memory Support DDR5 10000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking:; • 1DPC 1R Max speed up to 8200+ MT/s; • 1DPC 2R Max speed up to 8000+ MT/s; ; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only*; ; * CUDIMM support and POR boot frequency may vary by C |
| Chipset | AMD B850; |
| Storage | 2x M.2 (Qty); M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices ; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices ; 2x SATA 6G (Qty); ; M.2_1 slot; • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors); • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors); ; M.2_2 slot; • Supports up to PCIe 4.0 x4; • Supports 2280 storage devices; |
| PCB Info | Mini-ITX; 170mmx170mm; |
| Internal IO | 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 1x PUMP_SYS Fan; 1x System Fan; 1x ARGB+FAN+USB2.0 Header (JAF_2); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Addressable V2 RGB LED connector (JARGB_V2); 1x TPM pin header(Support TPM 2.0); 2x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports; |
| LED FEATURE | 4x EZ Debug LED; 1x EZ Memory Detection LED; |
| OPERATING SYSTEM | Support for Windows® 11 64-bit; |
| Onboard Graphics | 1x HDMI™; Support HDMITM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.; |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 7; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; ; Supports Bluetooth® 5.4**, MLO, 4KQAM; ; * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.; ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.; |
