SKU: MSI-311822 · Model: PRO B760M-E DDR4
In Stock
Enter your PIN code to find delivery options and a nearby store.

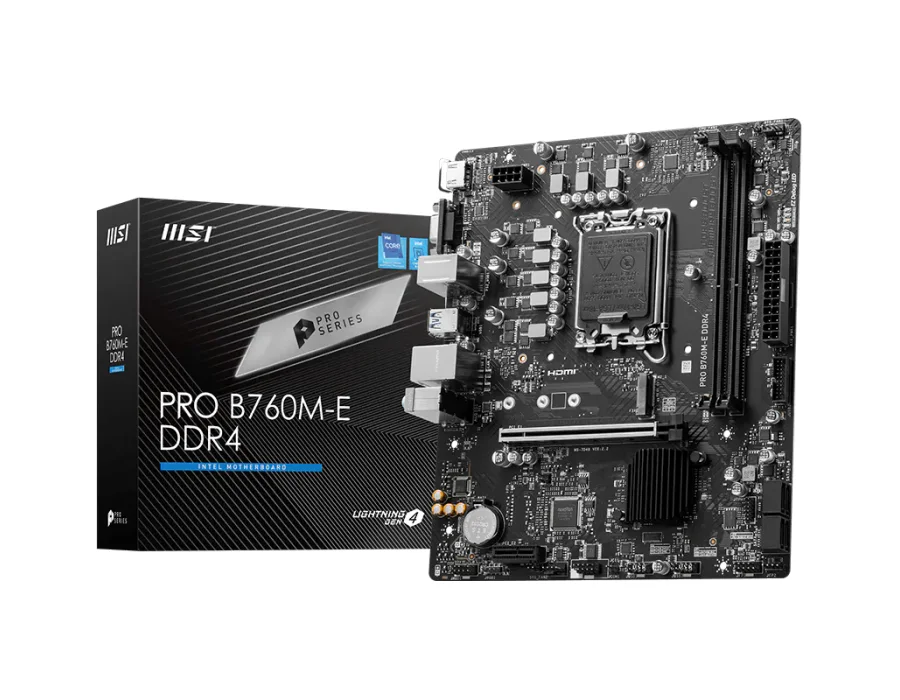

MSI PRO B760M-E DDR4 Model: PRO B760M-E DDR4 Chipset: INTEL B760; CPU: Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors; LGA 1700; Memory: 2x DDR4, Maximum Memory Capacity 64GB; Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC); Max. overclocking frequency:; • 1DPC 1R Max speed up to 4800+ MHz; • 1DPC 2R Max speed up to 4600+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile (XMP); Onboard Graphics: 1x HDMI™; Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*; 1x D-Sub; Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.; Slot: 1x PCI-E x16 slot (Qty); 1x PCI-E x1 slot (Qty); PCI_E1 Gen PCIe 4.0 supports up to (From CPU) ; PCI_E2 Gen PCIe 3.0 supports up to (From Chipset) ; Audio: Realtek® ALC897 Codec; 7.1-Channel High Definition Audio; Storage: 1x M.2 (Qty); M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices ; 4x SATA 6G (Qty); * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.; RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; USB: 4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); LAN: Realtek® RTL8111H Gigabit LAN; Internal IO: 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 2x USB 2.0 ports; 1x USB 5Gbps Type A ports; LED FEATURE: 4x EZ Debug LED; OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit; PCB Info: mATX; 200mmx236.16mm;
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors; LGA 1700; |
|---|---|
| LAN | Realtek® RTL8111H Gigabit LAN; |
| USB | 4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; |
| Slot | 1x PCI-E x16 slot (Qty); 1x PCI-E x1 slot (Qty); PCI_E1 Gen PCIe 4.0 supports up to (From CPU) ; PCI_E2 Gen PCIe 3.0 supports up to (From Chipset) ; |
| Audio | Realtek® ALC897 Codec; 7.1-Channel High Definition Audio; |
| Model | PRO B760M-E DDR4 |
| Memory | 2x DDR4, Maximum Memory Capacity 64GB; Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC); Max. overclocking frequency:; • 1DPC 1R Max speed up to 4800+ MHz; • 1DPC 2R Max speed up to 4600+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile (XMP); |
| Chipset | INTEL B760; |
| Storage | 1x M.2 (Qty); M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices ; 4x SATA 6G (Qty); * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.; |
| PCB Info | mATX; 200mmx236.16mm; |
| Internal IO | 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 2x USB 2.0 ports; 1x USB 5Gbps Type A ports; |
| LED FEATURE | 4x EZ Debug LED; |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit; |
| Onboard Graphics | 1x HDMI™; Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*; 1x D-Sub; Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.; |
