SKU: MSI-367725 · Model: PRO H610M-S DDR4 II
In Stock
Enter your PIN code to find delivery options and a nearby store.

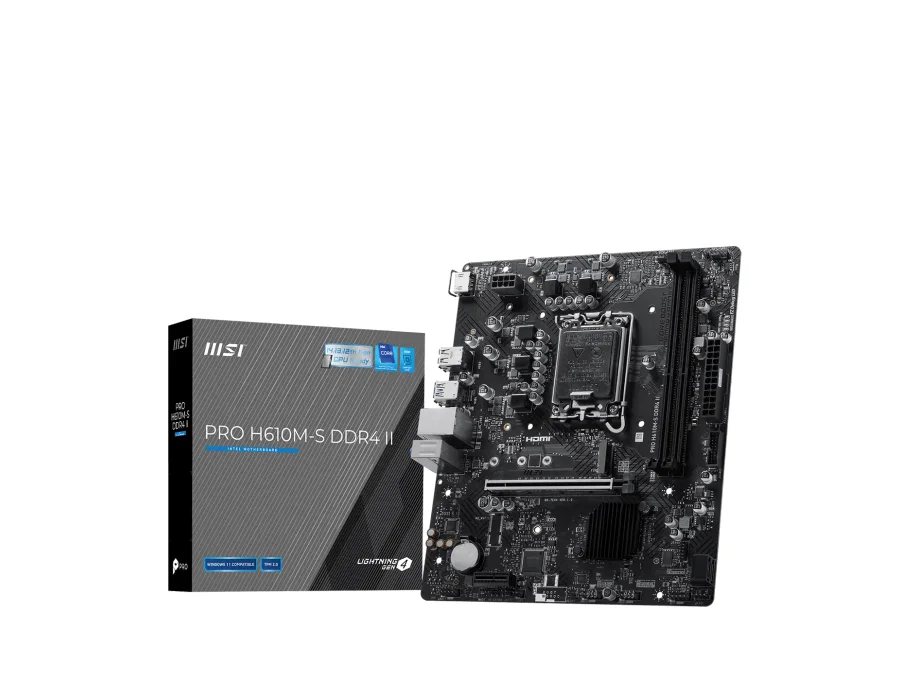

MSI PRO H610M-S DDR4 II Model: PRO H610M-S DDR4 II Chipset: INTEL H610; CPU: Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors; LGA 1700; Memory: 2x DDR4, Maximum Memory Capacity 64GB; Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports Dual-Channel mode Supports non-ECC, un-buffered memory; Onboard Graphics: 1x HDMI™; Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.; Slot: 1x PCI-E x16 slot (Qty); 1x PCI-E x1 slot (Qty); PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) ; PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) ; Audio: Realtek® ALC897 Codec; 7.1-Channel High Definition Audio; Storage: 1x M.2 (Qty); M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices ; 2x SATA 6G (Qty); USB: 4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); LAN: Realtek® RTL8111H Gigabit LAN; Internal IO: 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 1x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; LED FEATURE: 4x EZ Debug LED; OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit; PCB Info: mATX; 200mmx236.16mm;
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors; LGA 1700; |
|---|---|
| LAN | Realtek® RTL8111H Gigabit LAN; |
| USB | 4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); |
| Slot | 1x PCI-E x16 slot (Qty); 1x PCI-E x1 slot (Qty); PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) ; PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) ; |
| Audio | Realtek® ALC897 Codec; 7.1-Channel High Definition Audio; |
| Model | PRO H610M-S DDR4 II |
| Memory | 2x DDR4, Maximum Memory Capacity 64GB; Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports Dual-Channel mode Supports non-ECC, un-buffered memory; |
| Chipset | INTEL H610; |
| Storage | 1x M.2 (Qty); M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices ; 2x SATA 6G (Qty); |
| PCB Info | mATX; 200mmx236.16mm; |
| Internal IO | 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 1x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; |
| LED FEATURE | 4x EZ Debug LED; |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit; |
| Onboard Graphics | 1x HDMI™; Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.; |
