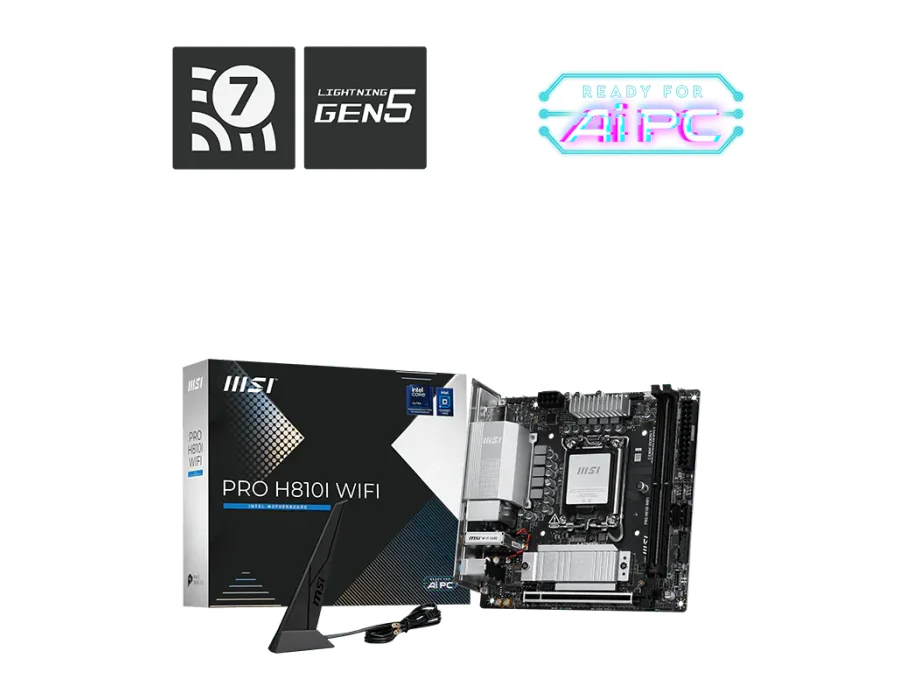

SKU: MSI-331628 · Model: PRO H810I WIFI
In Stock
Enter your PIN code to find delivery options and a nearby store.
MSI PRO H810I WIFI Model: PRO H810I WIFI Chipset: INTEL H810; CPU: Supports Intel® Core™ Ultra Processors (Series 2); LGA 1851; Memory: 2x DDR5 UDIMM, Maximum Memory Capacity 128GB; Memory Support DDR5 7200 - 4800 (JEDEC) MT/s; Max. overclocking:; • 1DPC 1R Max speed up to 7200 MT/s; • 1DPC 2R Max speed up to 6400 MT/s; ; Supports Intel® POR Speed and JEDEC Speed; Supports Intel® XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM; ; • The DIMM slots on this motherboard only have single-sided latches.; • Memory compatibility and supported speeds can vary depending on the CPU Onboard Graphics: 1x HDMI™; Support HDMI™ 2.1, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DisplayPort 1.4, maximum resolution of 4K 60Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.; Slot: 1x PCI-E x16 slot (Qty); PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) ; Audio: Realtek® ALC897 Codec; 7.1-Channel High Definition Audio; Storage: 1x M.2 (Qty); M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices ; 2x SATA 6G (Qty); *Please refer to the manual for M.2 SSD heatsink restrictions.; USB: 2x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 1x USB 10Gbps Type C (Front); 1x USB 20Gbps Type C (Rear); LAN: Intel® I226 2.5Gbps LAN; Internal IO: 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 1x PUMP_SYS Fan; 1x System Fan; 1x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Addressable V2 RGB LED connector (JARGB_V2); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports; WIRELESS LAN & BLUETOOTH: Wi-Fi 7; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; ; Supports Bluetooth® 5.4**, MLO, 4KQAM; ; * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.; ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.; LED FEATURE: 4x EZ Debug LED; 1x EZ Memory Detection LED; OPERATING SYSTEM: Support for Windows® 11 64-bit; PCB Info: Mini-ITX; 170mmx170mm;
| CPU | Supports Intel® Core™ Ultra Processors (Series 2); LGA 1851; |
|---|---|
| LAN | Intel® I226 2.5Gbps LAN; |
| USB | 2x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 1x USB 10Gbps Type C (Front); 1x USB 20Gbps Type C (Rear); |
| Slot | 1x PCI-E x16 slot (Qty); PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) ; |
| Audio | Realtek® ALC897 Codec; 7.1-Channel High Definition Audio; |
| Model | PRO H810I WIFI |
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB; Memory Support DDR5 7200 - 4800 (JEDEC) MT/s; Max. overclocking:; • 1DPC 1R Max speed up to 7200 MT/s; • 1DPC 2R Max speed up to 6400 MT/s; ; Supports Intel® POR Speed and JEDEC Speed; Supports Intel® XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM; ; • The DIMM slots on this motherboard only have single-sided latches.; • Memory compatibility and supported speeds can vary depending on the CPU |
| Chipset | INTEL H810; |
| Storage | 1x M.2 (Qty); M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices ; 2x SATA 6G (Qty); *Please refer to the manual for M.2 SSD heatsink restrictions.; |
| PCB Info | Mini-ITX; 170mmx170mm; |
| Internal IO | 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 1x PUMP_SYS Fan; 1x System Fan; 1x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Addressable V2 RGB LED connector (JARGB_V2); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports; |
| LED FEATURE | 4x EZ Debug LED; 1x EZ Memory Detection LED; |
| OPERATING SYSTEM | Support for Windows® 11 64-bit; |
| Onboard Graphics | 1x HDMI™; Support HDMI™ 2.1, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DisplayPort 1.4, maximum resolution of 4K 60Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.; |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 7; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; ; Supports Bluetooth® 5.4**, MLO, 4KQAM; ; * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.; ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.; |
