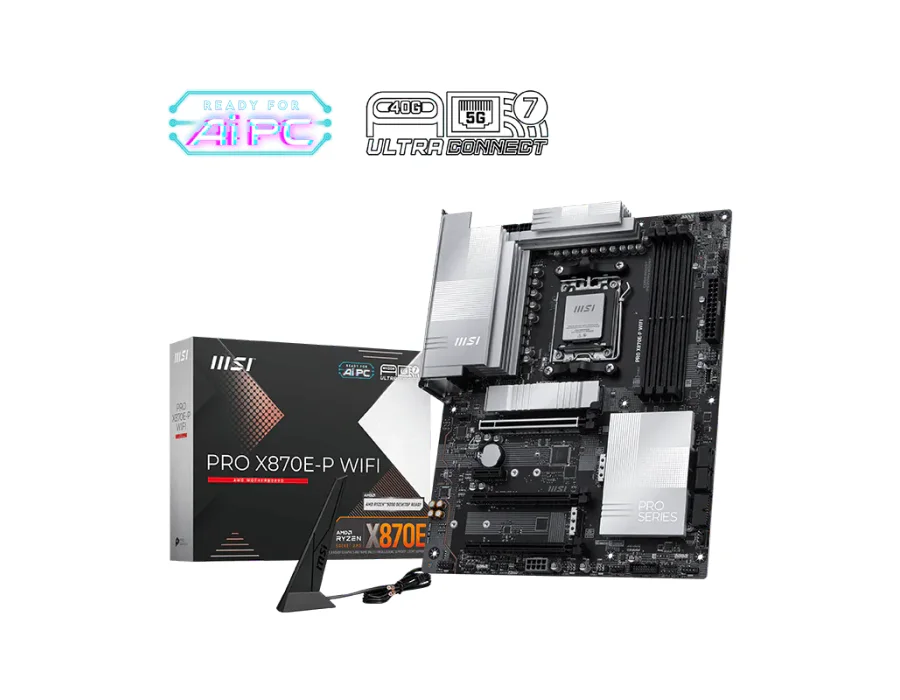

MSI PRO X870E-P WIFI Model: PRO X870E-P WIFI Chipset: AMD X870E; CPU: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5; Memory: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB; Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking:; • 1DPC 1R Max speed up to 8200+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 6000+ MT/s; ; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver Onboard Graphics: 1x HDMI™; Support HDMITM 2.1, maximum resolution of 4K 60Hz*; 1x Type-C DisplayPort; USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.; Slot: 3x PCI-E x16 slot (Qty); 1x PCI-E x1 slot (Qty); PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) ; PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) ; PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) ; PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) ; ; PCI_E1 slot; • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors); • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors); • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors); Audio: Realtek® ALC897; 7.1-Channel High Definition Audio; Storage: 3x M.2 (Qty); M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices ; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices ; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices ; 4x SATA 6G (Qty); ; M2_1 slot; • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors); • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors); ; *Please refer to the manual for M.2 SSD heatsink restriction RAID: Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices; ; *RAID 5 configuration is only supported by Ryzen™ 9000 series processors.; USB: 4x USB 2.0 (Rear); 6x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 4x USB 5Gbps Type A (Front); 2x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Front); 1x USB 20Gbps Type C (Rear); 1x USB 40Gbps Type C (Rear); LAN: Realtek® 8126VB 5G LAN; Internal IO: 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 8pin); 1x CPU Fan; 1x PUMP_SYS Fan; 6x System Fan; 1x ARGB+FAN Header (JAF_1); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Tuning Controller connector(JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 6x USB 2.0 ports; 4x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports; WIRELESS LAN & BLUETOOTH: Wi-Fi 7; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; ; Supports Bluetooth® 5.4**, MLO, 4KQAM; ; * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.; ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.; LED FEATURE: 4x EZ Debug LED; 1x EZ Memory Detection LED; OPERATING SYSTEM: Support for Windows® 11 64-bit; PCB Info: ATX; 243.84mmx304.8mm;
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5; |
|---|---|
| LAN | Realtek® 8126VB 5G LAN; |
| USB | 4x USB 2.0 (Rear); 6x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 4x USB 5Gbps Type A (Front); 2x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Front); 1x USB 20Gbps Type C (Rear); 1x USB 40Gbps Type C (Rear); |
| RAID | Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices; ; *RAID 5 configuration is only supported by Ryzen™ 9000 series processors.; |
| Slot | 3x PCI-E x16 slot (Qty); 1x PCI-E x1 slot (Qty); PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) ; PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) ; PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) ; PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) ; ; PCI_E1 slot; • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors); • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors); • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors); |
| Audio | Realtek® ALC897; 7.1-Channel High Definition Audio; |
| Model | PRO X870E-P WIFI |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB; Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking:; • 1DPC 1R Max speed up to 8200+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 6000+ MT/s; ; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver |
| Chipset | AMD X870E; |
| Storage | 3x M.2 (Qty); M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices ; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices ; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices ; 4x SATA 6G (Qty); ; M2_1 slot; • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors); • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors); ; *Please refer to the manual for M.2 SSD heatsink restriction |
| PCB Info | ATX; 243.84mmx304.8mm; |
| Internal IO | 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 8pin); 1x CPU Fan; 1x PUMP_SYS Fan; 6x System Fan; 1x ARGB+FAN Header (JAF_1); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Tuning Controller connector(JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 6x USB 2.0 ports; 4x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports; |
| LED FEATURE | 4x EZ Debug LED; 1x EZ Memory Detection LED; |
| OPERATING SYSTEM | Support for Windows® 11 64-bit; |
| Onboard Graphics | 1x HDMI™; Support HDMITM 2.1, maximum resolution of 4K 60Hz*; 1x Type-C DisplayPort; USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.; |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 7; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; ; Supports Bluetooth® 5.4**, MLO, 4KQAM; ; * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.; ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.; |
